09G321363B Oil Pipe
- 09G321363BThis pageNot stocked
May 2007 - 09G321363DCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

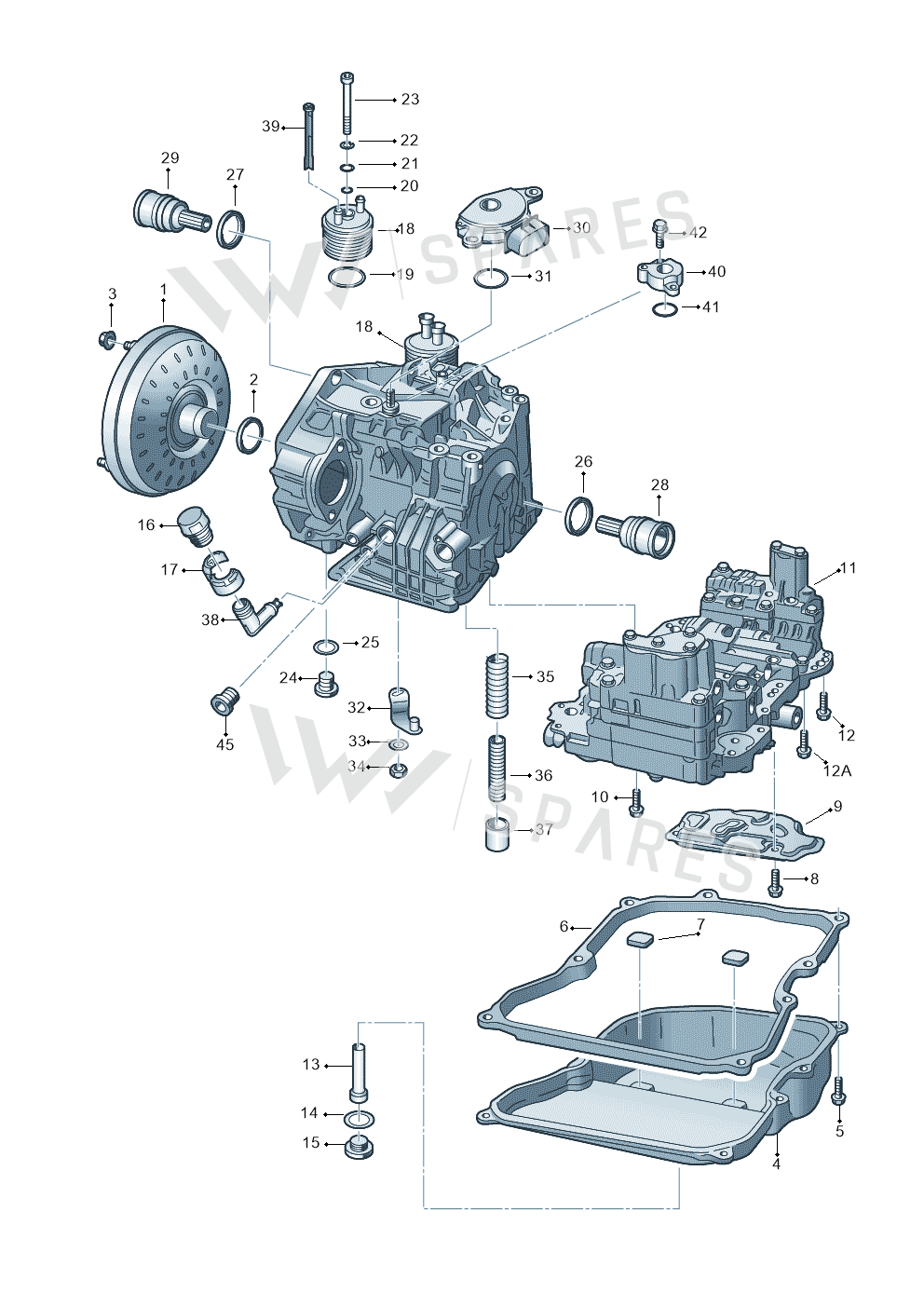

9 vehiclesOil Pipe — locate Oil Pipe in the official exploded view and explore the surrounding assembly.
Parts in this assembly44
- 1Converter 09G323571G
- 1Converter 09G323571C
- 2Seal Washer 09G321243
- 3Part N10169201
- 4Oil Sump 09G321361A
- 5Bolt WHT000309
- 6Seal 09G321370
- 7Magnet 09D321368
- 8Bolt WHT000315
- 9Strainer 09G325429A
- 9Strainer 09G325429
- 10Bolt WHT000311
- 11Valve Body 09G325039A
- 11Valve Body 09G325039AX
- 11Valve Body 09G325039X
- 12Bolt WHT000307
- 12ABolt WHT000313
- 13Oil Pipe 09G321363C
- 13Oil Pipe 09G321363D
- 13Oil Pipe 09G321363A
- 14Seal Ring 09D321181B
- 15Screw WHT000310A
- 16Bungs 01M321432A
- 17Part 01M321435B
- 18Oil Cooler 09G409061
- 19Seal Ring 001409069B
- 20Seal Ring 001409069
- 21Washer 001301093B
- 22Seal Ring 09G409539
- 23Screw 09G409067
- 24Screw WHT000306
- 25Seal Ring 09G321379
- 26Seal RingRight09G409528
- 26SealRight09G301189
- 31Seal Washer 09D321199
- 32Lever 09G321175
- 33Plate 09G321381
- 34Part WHT001425
- 35Spring 09G325417
- 36Spring 09K325233
- 36Spring 09G325233
- 37Piston 09K325215
- 37Piston 09G325215
- 38Pipe 09G321407
Vehicle fitment table9
Europe (7)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| GOLF PLUS 05> | 2005- | 13 | 1 | HFX,HTN,HTQ | |
| Passat/4Motion | 2005-2007 | 13 | 1 | HRN,HXJ | |
| Audi A3/S3/quattro | 2005-2007 | 13 | 1 | G1A | |
| TOURAN | 2005-2006 | 13 | 1 | HFX,HTQ | |
| OCTAVIA/COMBI/4X4 04> | 2004- | 13 | 1 | HFS,HFT,HTN | |
| TOURAN | 2003-2005 | 13 | 1 | GKC,HFX | |
| GOLF | 2003-2005 | 13 | 1 | GSY,GJZ,HFT, |
Other markets (2)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Golf/Rabbit | 2005-2007 | 13 | 1 | HFS,HFT,HRM, | |
| TOURAN (SVW) "CN"04> | 2004- | 13 | 1 | G1A |
