09S301472 Breather Line
- 09S301472This pageNot stocked
Jun 2020 - 09S301472ACurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

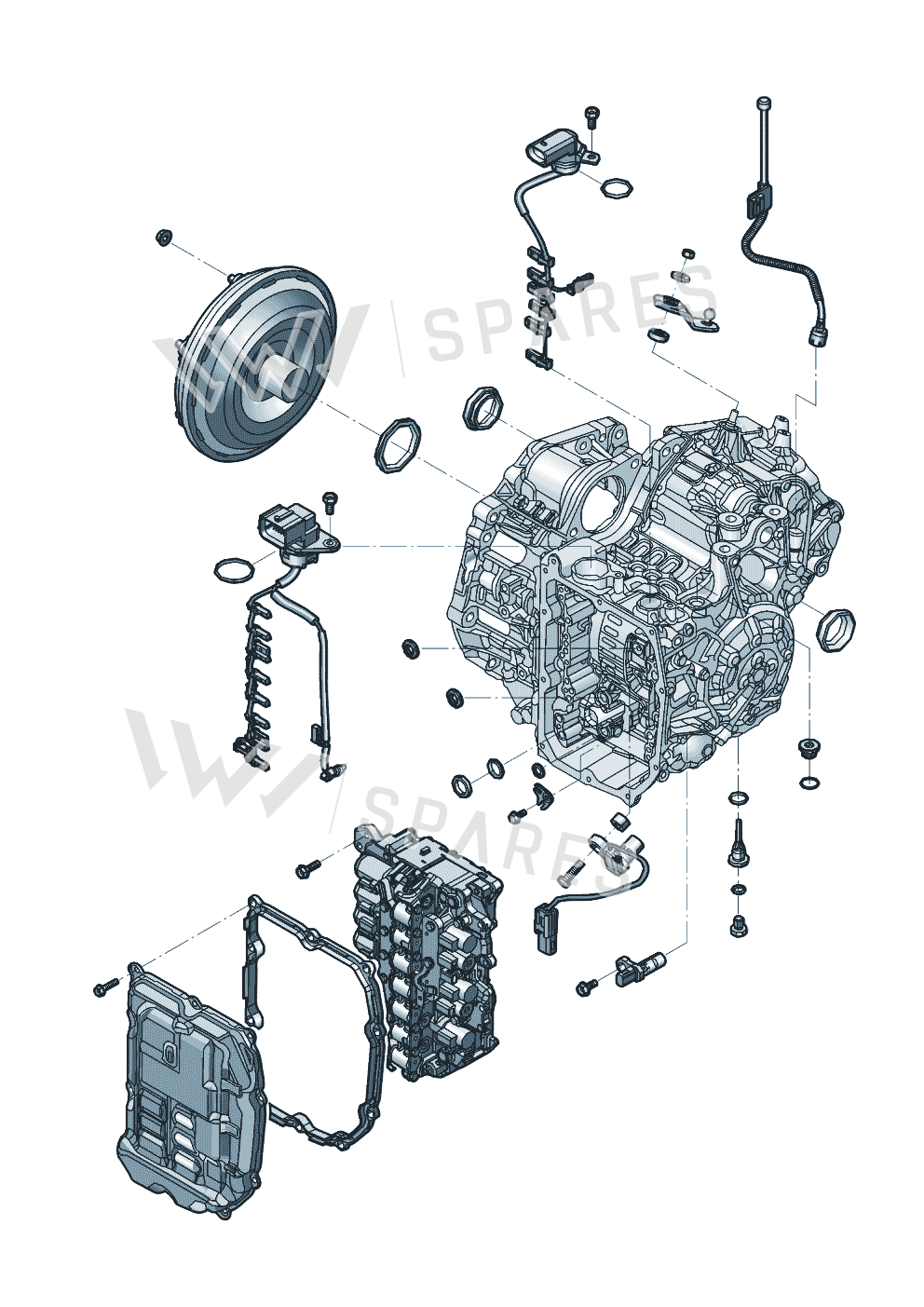

3 vehiclesBreather Line — locate Breather Line in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Converter 09S323571
- 1Converter 09S323571A
- 1Converter 09S323571B
- 2Part N10169201
- 3Seal Washer 09S321243
- 4Seal WasherRight09S321243A
- 6Lever 09S321171
- 7Seal Washer 09D321199
- 8Part WHT000303
- 9Washer WHT000304
- 10Screw WHT009052
- 11Seal Ring WHT008960
- 12Bolt WHT008996
- 13Seal Ring WHT008961
- 14Bolt WHT011476
- 14Bolt WHT009001
- 15Oil Sump 09S321361
- 15Oil Sump 09S321361A
- 16Seal 09S321370A
- 16Seal 09S321370B
- 16Seal 09S321370
- 17Valve Body 09S325039A
- 17Valve Body 09S325039
- 18Screw WHT008997
- 19Wir Harn 09S927363B
- 19Wir Harn 09S927363A
- 20Seal Ring WHT008967
- 21Bolt WHT000314
- 22Wir Harn 09S927363
- 23Seal Ring WHT008968
- 25Seal Ring 09S321381A
- 25Seal Ring 09S321381
- 26Seal Ring 09S321798
- 27Ring 09S321181A
- 28Seal Ring 09S321181
- 29Sensor 09S927321C
- 29Sensor 09S927321A
- 30Support Element 09S321795
- 31Bolt WHT009002
- 32Sensor 09S927321B
- 32Sensor 09S927321
- 33Bolt WHT008568
- 34Clip 09S927421
- 35Screw WHT009000
- 36Screw WHT008998
- 37Seal Ring WHT008969
- 38Pipe 09S301469A
- 38Pipe 09S301472A
Vehicle fitment table3
Europe (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Karoq | 2017-2022 | 38 | 1 |
Other markets (2)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Jetta 1.4 | 2017-2024 | 38 | 1 |
| POLO HATCH "ZA"06> | 2005- | 38 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Breather Line is fitted on: Karoq 2017-2022; Jetta 1.4 2017-2024; POLO HATCH "ZA"06> 2005-.
