0FN409053A Final Drive Gearbox
- 0FN409053AThis pageNot stocked
Nov 2019 - 0FN409053CCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

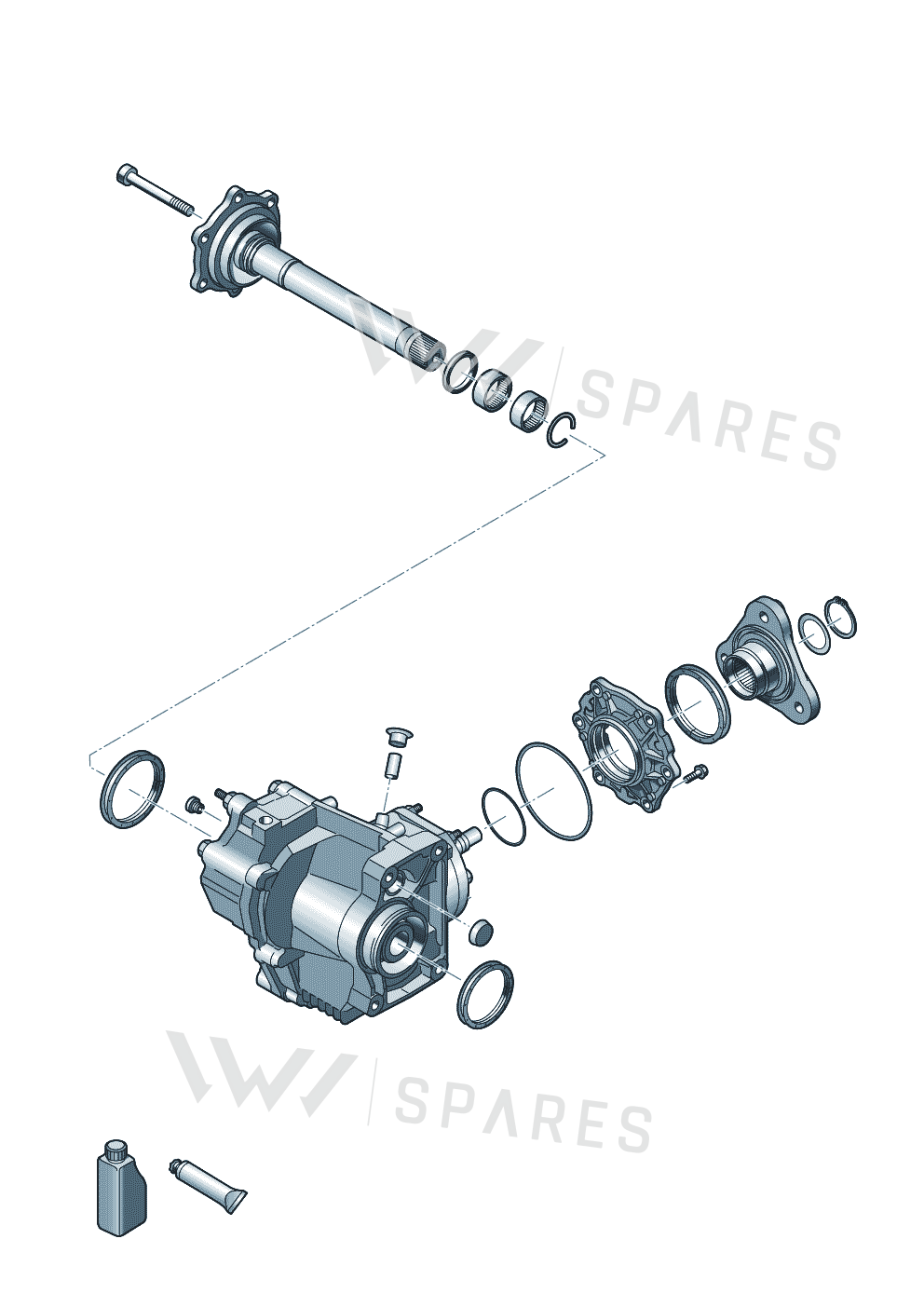

7 vehiclesFinal Drive Gearbox — locate Final Drive Gearbox in the official exploded view and explore the surrounding assembly.
Parts in this assembly25
- 1Gearbox 0FN409053
- 1Gearbox 0FN409053B
- 1Gearbox 0FN409053C
- 2Flanshaft 0FN409356
- 2Flanshaft 0FN409356A
- 3Axle Oil G052145S2
- 4Seal Ring 0CN409464
- 5Sleeve 012409139A
- 6Circlip 0CN409419
- 7Seal Ring WHT008009
- 8Seal Ring WHT007545
- 10Bolt WHT005784
- 11Seal 0CP525596A
- 12Seal 0CQ525596A
- 13Sleeve 02H409275A
- 14Bolt N90281802
- 15Cover WHT005787
- 16Seal 0CN409529A
- 17Flange 0FN409273
- 18Washer WHT007547
- 19Circlip WHT006933
- 25Screw 02E409359
- 26Ap Cap For Venting The Gearbox Cap For Venting 014301485
- 27Grease G000100
- 27Seal Greas G055128A1
Vehicle fitment table7
Europe (7)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| T-Roc BlueMotion | 2017-2024 | 1 | |
| Arteon | 2017-2023 | 1 | |
| Karoq | 2017-2022 | 1 | |
| Ateca Style | 2016- | 1 | |
| Audi Q2 2.0 TDI | 2016-2018 | 1 | 1 |
| Superb Combi | 2015-2024 | 1 | |
| Passat saloon | 2014-2024 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Final Drive Gearbox is fitted on: T-Roc BlueMotion 2017-2024; Arteon 2017-2023; Karoq 2017-2022; Ateca Style 2016-; Audi Q2 2.0 TDI 2016-2018; Superb Combi 2015-2024; Passat saloon 2014-2024.
