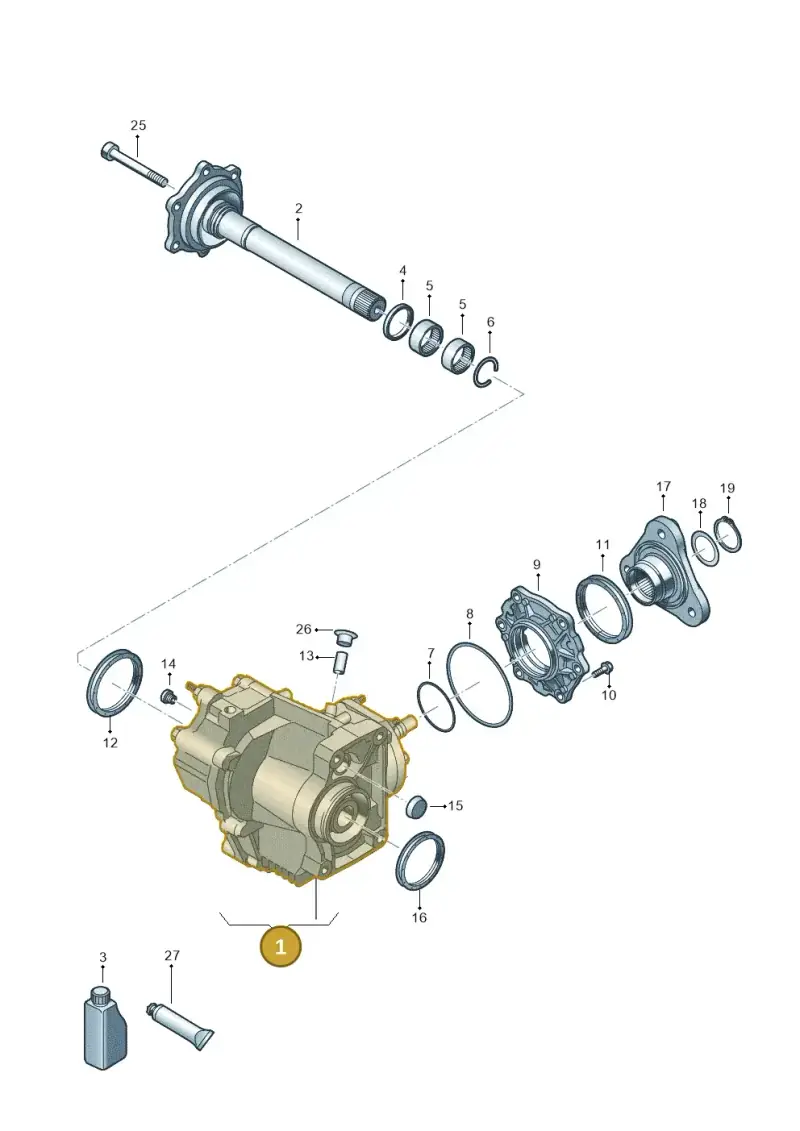

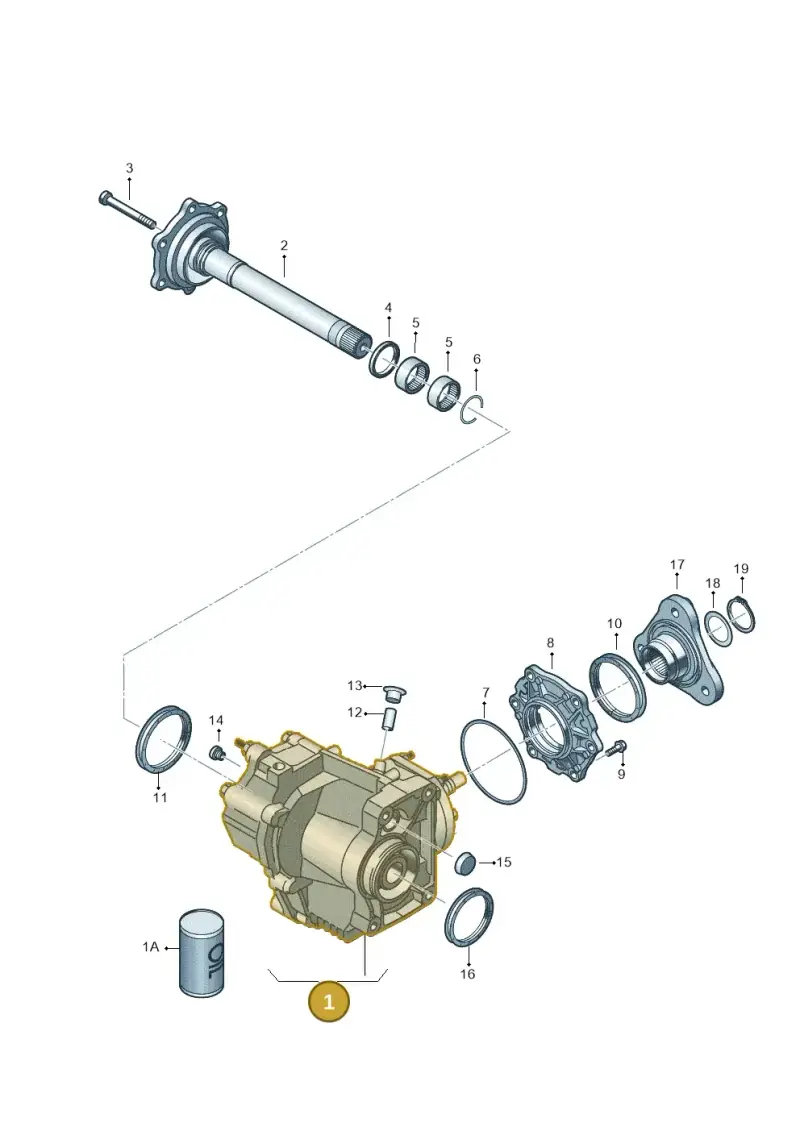

Number 1 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Final Drive Gearbox, part number 0FN409053B. This component is responsible for transferring power from the transmission to the drive axles, ultimately delivering torque to the wheels. It is located at position 1 in the differential diagram. The precise manufacturing tolerances and quality of materials in a genuine OEM final drive gearbox are essential for smooth, efficient power transfer and long service life.
Catalogue entry: Gearbox; also use: 014 301 485.
Use with: 014301485. Fitted with: 0FN409053 Gearbox, 02E409359 SCREW, 014301485 Cap for venting the gearbox, G000100 GREASE, 0FN409053A Gearbox, 0FN409053C Gearbox.
Technical details
- Category
- Transmission & Drivetrain
- Customs (HS) code
- 87085099
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 34 × 22 × 23 cm
- Shipping weight
- 17.18 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Gearbox codes
- TDF, TEY, TTP, UAN, UAQ, URS, VBJ, VEQ, VES, VEU, WCM, WGD
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
13 vehiclesFinal Drive Gearbox — locate 0FN409053B Volkswagen Final Drive Gearbox | OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly23
- 1Gearbox 0FN409053C
- 2Flanshaft 0FN409356A
- 2Flanshaft 0FN409356
- 3Axle Oil G052145S2
- 4Seal Ring 0CN409464
- 5Sleeve 012409139A
- 6Circlip 0CN409419
- 7Seal Ring WHT008009
- 8Seal Ring WHT007545
- 10Bolt WHT005784
- 11Seal 0CP525596A
- 12Seal 0CQ525596A
- 13Sleeve 02H409275A
- 14Bolt N90281802
- 15Cover WHT005787
- 16Seal 0CN409529A
- 17Flange 0FN409273
- 18Washer WHT007547
- 19Circlip WHT006933
- 25Screw 02E409359
- 26Ap Cap For Venting The Gearbox Cap For Venting 014301485
- 27Grease G000100
- 27Seal Greas G055128A1
Compatible / alternative parts(12)
Vehicle fitment table13
Europe (13)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Leon style | 2019- | 1 | ||
| Golf 2.0 BlueMotion | 2019-2024 | 1 | ||
| Audi A3 Sportback | 2019-2021 | 1 | ||
| T-Roc BlueMotion | 2017-2024 | 1 | ||
| Arteon | 2017-2023 | 1 | ||
| Kodiaq | 2016-2024 | 1 | ||
| Audi A3 Sportback | 2016-2020 | 1 | 1 | UAQ |
| Audi A3 Cabrio | 2016-2020 | 1 | 1 | UAQ |
| golf 2.0 | 2016-2020 | 1 | ||
| Audi Q2 2.0 TDI | 2016-2018 | 1 | 1 | |
| Superb Combi | 2015-2024 | 1 | ||
| Passat saloon | 2014-2024 | 1 | ||
| Audi TTS Coupe 2.0 | 2014-2023 | 1 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
0FN409053B Volkswagen Final Drive Gearbox | OEM is fitted on: Leon style 2019-; Golf 2.0 BlueMotion 2019-2024; Audi A3 Sportback 2019-2021; T-Roc BlueMotion 2017-2024; Arteon 2017-2023; Kodiaq 2016-2024; Audi A3 Sportback 2016-2020; Audi A3 Cabrio 2016-2020; golf 2.0 2016-2020; Audi Q2 2.0 TDI 2016-2018; Superb Combi 2015-2024; Passat saloon 2014-2024; Audi TTS Coupe 2.0 2014-2023.
