1EA816534D Refrigerant Line
- 1EA816534DThis pageNot stocked
Jul 2023 - 1EA816534ECurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

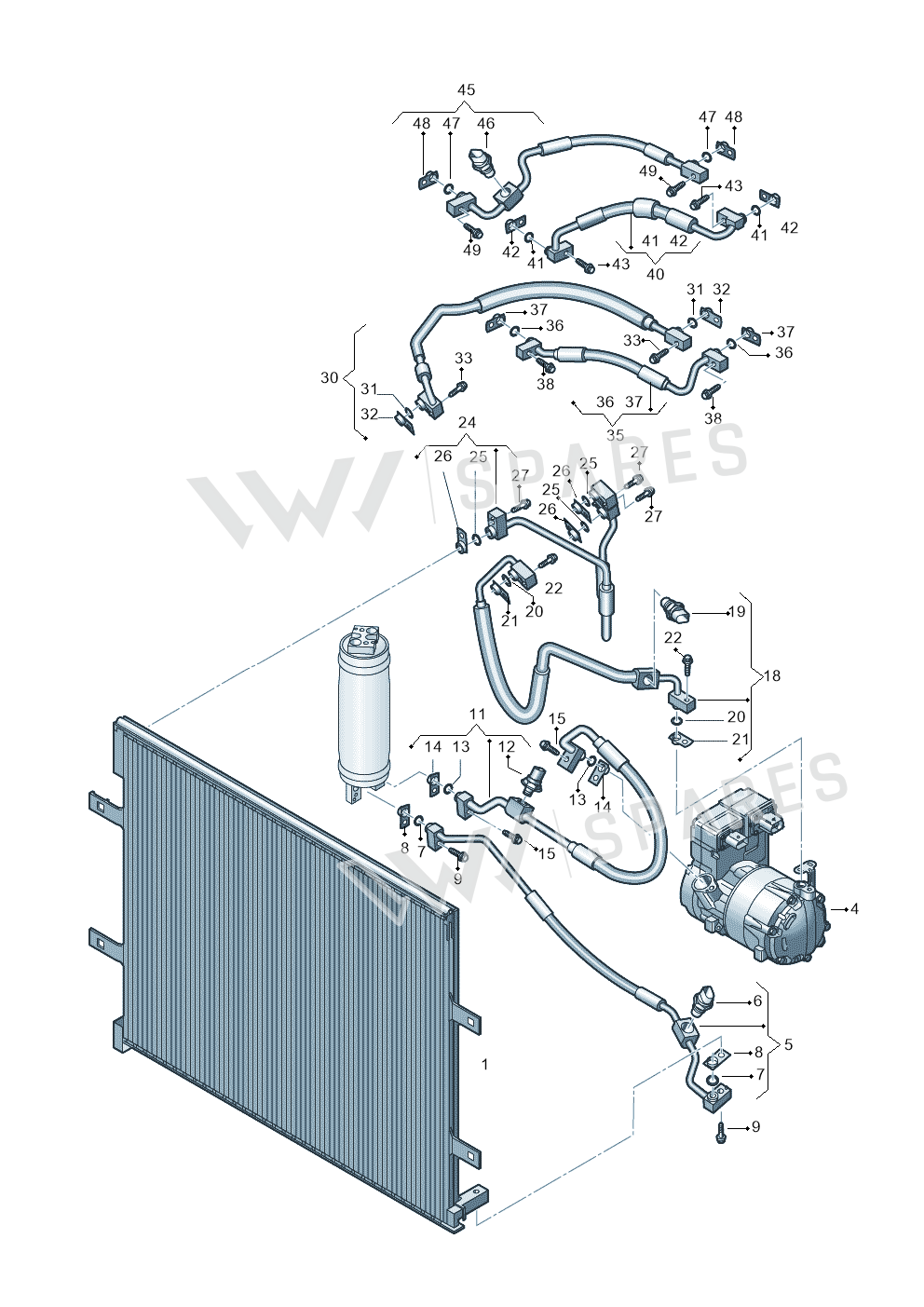

10 vehiclesRefrigerant Line — locate Refrigerant Line in the official exploded view and explore the surrounding assembly.
Parts in this assembly30
- 1Gas Cooler 1EA816515A
- 1Gas Cooler 1EA816515B
- 5Line 1EA816530F
- 5Line 1EA816530J
- 5Line 1EA816530L
- 6Sensor 4N0959126H
- 6Sensor 4N0959126L
- 7Seal 1EA959895
- 8Seal 1EA959895A
- 9Bolt WHT009366
- 9Screw WHT009534
- 11Line 1EA816545G
- 11Line 1EA816545K
- 11Line 1EA816545M
- 12Sensor 4N0959126K
- 18Line 1EA816521F
- 18Line 1EA816521J
- 18Line 1EA816521L
- 19Sensor 4N0959126J
- 24Line 1EA816523F
- 24Line 1EA816523G
- 24Line 1EA816523J
- 30Line 1EA816524D
- 30Line 1EA816524E
- 35Line 1EA816533A
- 35Line 1EA816533C
- 40Line 1EA816541C
- 40Line 1EA816541D
- 45Line 1EA816534E
- 45Line 1EA816534F
Vehicle fitment table10
Europe (4)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi Q4 Sportback | 2021-2022 | 45 | 1 |
| Enyaq | 2020- | 45 | 1 |
| ID.4 Pro | 2020-2023 | 45 | 1 |
| ID.3 Pro | 2019-2024 | 45 | 1 |
Other markets (6)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| ID.6 X | 2021- | 45 | 1 |
| ID.3 | 2021- | 45 | 1 |
| ID.6 X | 2021- | 45 | 1 |
| Audi Q5 e-tron | 2021- | 45 | 1 |
| ID.4 X | 2020- | 45 | 1 |
| ID.4 | 2020- | 45 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Refrigerant Line is fitted on: Audi Q4 Sportback 2021-2022; Enyaq 2020-; ID.4 Pro 2020-2023; ID.3 Pro 2019-2024; ID.6 X 2021-; ID.3 2021-; Audi Q5 e-tron 2021-; ID.4 X 2020-; ID.4 2020-.
