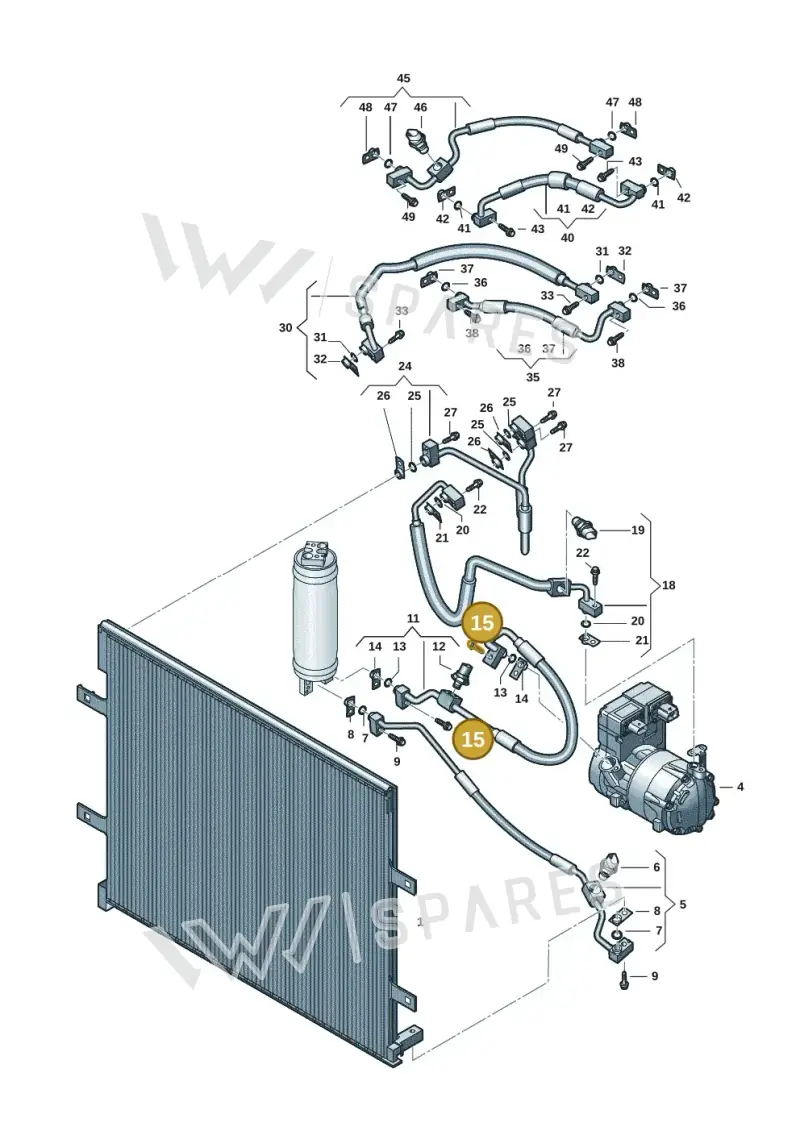

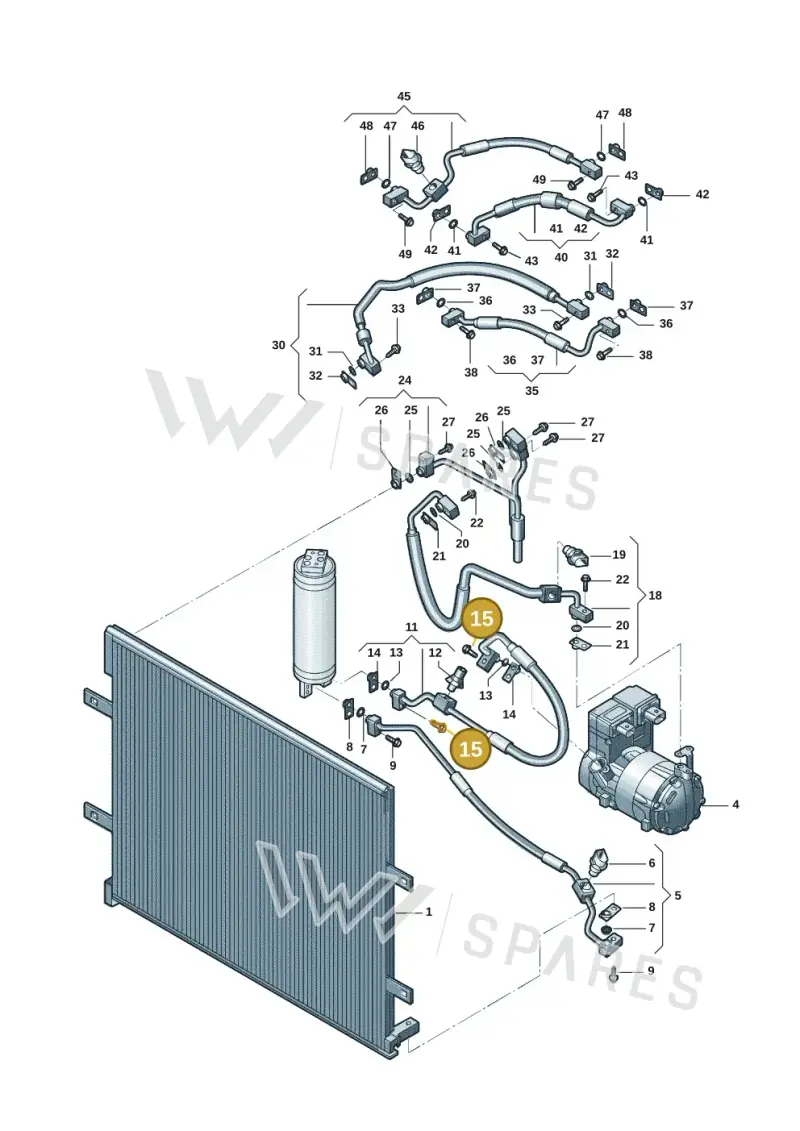

Number 9 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Twelve-Point Flange Bolt, part number WHT009366. This specialized bolt features a twelve-point head and a flange, used for high-strength connections in engine and body applications. It is designed to provide a secure and reliable fastening solution. Genuine OEM bolts offer precise dimensions and material strength, essential for critical connections in the A/C system.
Catalogue entry: Bolt ×12.
Fitted with: 1EA816542 LINE, WHT009534 SCREW.
Technical details
- Category
- Heating & A/C
- Customs (HS) code
- 73181568
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 4 × 1.2 × 1.2 cm
- Shipping weight
- 0.01 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
12 vehiclesTwelve-point Flange Bolt (combination) — locate WHT009366 Volkswagen Twelve-Point Flange Bolt | Genuine OEM in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly30
- 1Gas Cooler 1EA816515A
- 1Gas Cooler 1EA816515B
- 5Line 1EA816530F
- 5Line 1EA816530J
- 5Line 1EA816530L
- 6Sensor 4N0959126H
- 6Sensor 4N0959126L
- 7Seal 1EA959895
- 8Seal 1EA959895A
- 9Screw WHT009534
- 11Line 1EA816545G
- 11Line 1EA816545K
- 11Line 1EA816545M
- 12Sensor 4N0959126K
- 18Line 1EA816521F
- 18Line 1EA816521J
- 18Line 1EA816521L
- 19Sensor 4N0959126J
- 24Line 1EA816523F
- 24Line 1EA816523G
- 24Line 1EA816523J
- 30Line 1EA816524D
- 30Line 1EA816524E
- 35Line 1EA816533A
- 35Line 1EA816533C
- 40Line 1EA816541C
- 40Line 1EA816541D
- 45Line 1EA816534D
- 45Line 1EA816534E
- 45Line 1EA816534F
Vehicle fitment table12
Europe (6)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| ID.7 Limousine Pro | 2023- | 9 | 2 |
| Tavascan Cupra | 2023- | 9 | 2 |
| Audi Q4 Sportback | 2021-2022 | 9 | 2 |
| Enyaq | 2020- | 9 | 2 |
| ID.4 Pro | 2020-2023 | 9 | 2 |
| ID.3 Pro | 2019-2024 | 9 | 2 |
Other markets (6)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| ID.UNYX | 2024- | 9 | 2 |
| Aero saloon | 2023- | 9 | 2 |
| Audi Q4 Sportback | 2022- | 9 | 2 |
| ID.6 X | 2021- | 9 | 2 |
| ID.3 | 2021- | 9 | 2 |
| ID.4 X | 2020- | 9 | 2 |
Diagrams & fitment data powered by oemdiagrams.com
WHT009366 Volkswagen Twelve-Point Flange Bolt | Genuine OEM is fitted on: ID.7 Limousine Pro 2023-; Tavascan Cupra 2023-; Audi Q4 Sportback 2021-2022; Enyaq 2020-; ID.4 Pro 2020-2023; ID.3 Pro 2019-2024; ID.UNYX 2024-; Aero saloon 2023-; Audi Q4 Sportback 2022-; ID.6 X 2021-; ID.3 2021-; ID.4 X 2020-.
