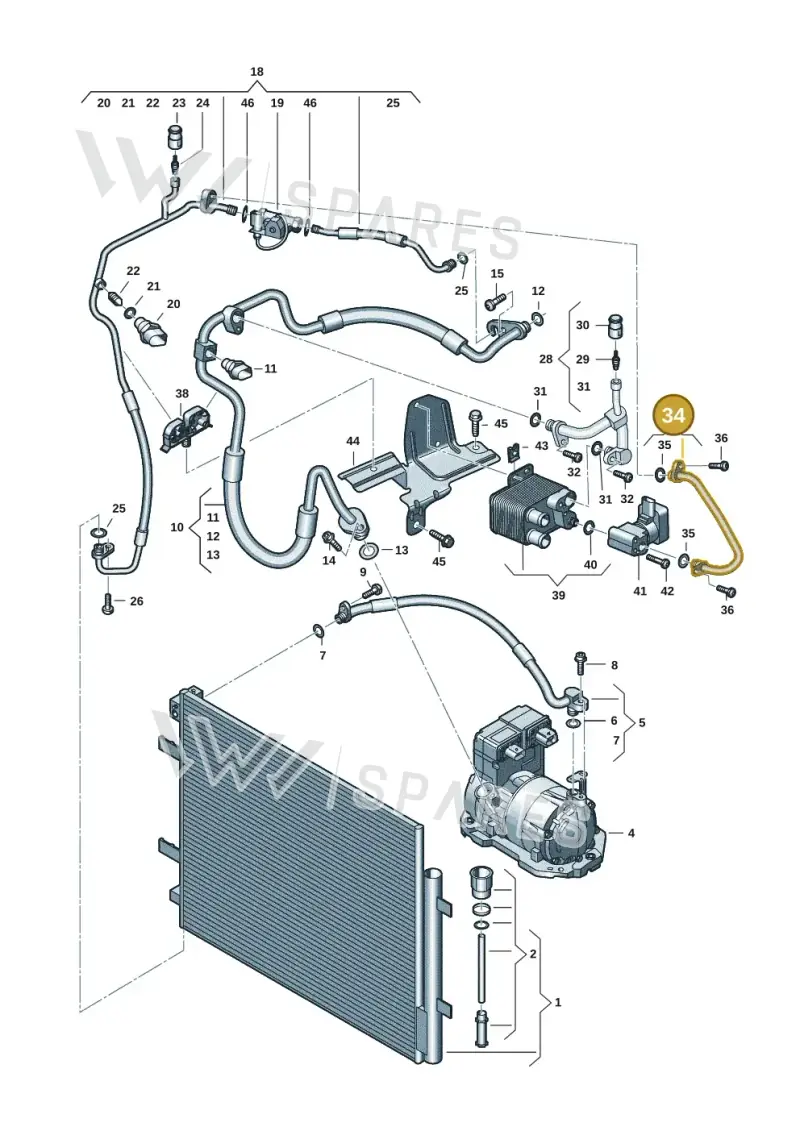

Number 34 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Refrigerant Pipe, part number 1EA816732B. This pipe transports refrigerant between different components of the air conditioning system. It is located at position 34 in the diagram. Genuine OEM refrigerant pipes ensure precise fitment and material integrity for safe and efficient operation of the air conditioning system.
Catalogue entry: PIPE.
Technical details
- Category
- Heating & A/C
- Customs (HS) code
- 84189990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping weight
- 0.04 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
5 vehiclesRefrigerant Pipe — locate 1EA816732B Volkswagen Refrigerant Pipe | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly43
- 1A C Conden 1EA816411A
- 2Insert 8X0898191C
- 5Line 1EA816721
- 6Seal Ring 4E0260749A
- 7Seal Ring 3D0260749C
- 8Screw N10414402
- 9Bolt N10347103
- 10Line 1EA816743A
- 10Line 1EA816743G
- 10Line 1EA816743J
- 10Line 1EA816743L
- 11Sensor 4M0959603E
- 11Sensor 4M0959603F
- 12Seal Ring 4E0260749B
- 13Seal Ring 8E0260749C
- 15Bolt N91096801
- 18Line 1EA816741M
- 18Line 1EA816741E
- 18Line 1EA816741H
- 18Line 1EA816741K
- 19Valve 8R0260696A
- 19Valve 8R0260696B
- 20Sender 4H0959126B
- 20Sender 4H0959126C
- 21Seal Ring 8A0260749AK
- 22Valve 8A0820855AA
- 23Part 5Q0816581A
- 23Part 5Q0816581
- 24Valve 3D0820855A
- 24Valve 8E0820855
- 25Seal Ring 4D0260749B
- 28Pipe 1EA816739
- 30Part 5Q0816231
- 32Bolt N10347204
- 34Pipe 1EA816732A
- 38Clip 1EA820317
- 38Clip 1EA820317A
- 39Heat Exch 1EA816114
- 41Expans Val 1EA816590B
- 42Bolt N10438202
- 43Part WHT008829
- 44Bracket 1EA816087A
- 45Bolt N10805001
Vehicle fitment table5
Europe (5)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| ID.7 Limousine Pro | 2023- | 34 | 1 | KK3 |
| Audi Q4 Sportback | 2021-2022 | 34 | 1 | |
| Enyaq | 2020- | 34 | 1 | |
| ID.4 Pro | 2020-2023 | 34 | 1 | |
| ID.3 Pro | 2019-2024 | 34 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
1EA816732B Volkswagen Refrigerant Pipe | Genuine OEM is fitted on: ID.7 Limousine Pro 2023-; Audi Q4 Sportback 2021-2022; Enyaq 2020-; ID.4 Pro 2020-2023; ID.3 Pro 2019-2024.
