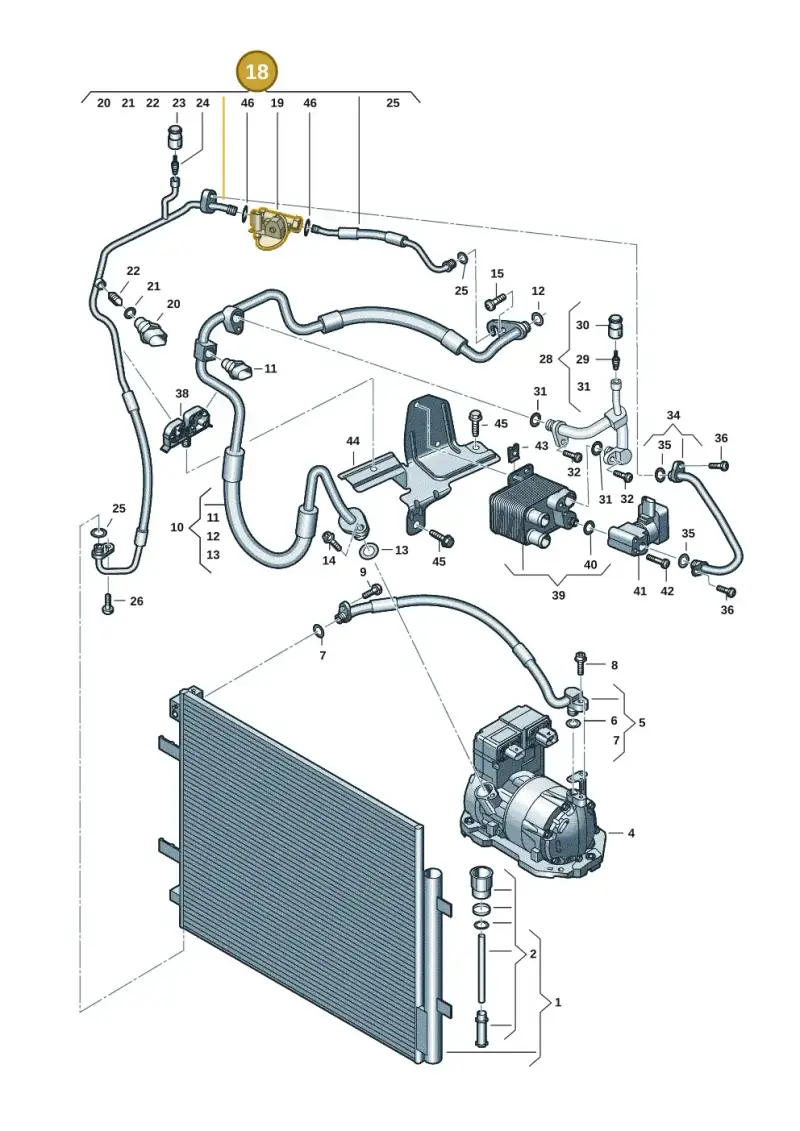

Number 18 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Refrigerant Line, part number 1EA816741N. This line transports refrigerant within the vehicle's air conditioning system, connecting key components. It is located at position 18 in the diagram. Genuine OEM refrigerant lines ensure precise fitment and material integrity for safe and efficient operation of the A/C system.
Catalogue entry: LINE.
Fitted with: 8X0898191C INSERT, 4E0260749B seal ring, N91096801 BOLT, 1EA816741G LINE, 1EA816741J LINE, 1EA816741L LINE, N10347103 BOLT, 4D0260749B seal ring, N10347204 BOLT.
Technical details
- Category
- Heating & A/C
- Customs (HS) code
- 40092200
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping weight
- 0.35 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
3 vehiclesRefrigerant Line — locate 1EA816741N Volkswagen Refrigerant Line | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly46
- 1A C Conden 1EA816411A
- 2Insert 8X0898191C
- 5Line 1EA816721
- 5Line 1EA816721A
- 6Seal Ring 4E0260749A
- 7Seal Ring 3D0260749C
- 8Screw N10414402
- 9Bolt N10347103
- 10Line 1EA816743J
- 10Line 1EA816743K
- 10Line 1EA816743L
- 10Line 1EA816743M
- 10Line 1EA816743N
- 10Line 1EA816743P
- 11Sensor 4M0959603E
- 11Sensor 4M0959603F
- 11Sensor 4M0959603J
- 12Seal Ring 4E0260749B
- 13Seal Ring 8E0260749C
- 15Bolt N91096801
- 18Line 1EA816741L
- 19Valve 8R0260696B
- 20Sender 5Q0959126A
- 20Sender 5Q0959126B
- 21Seal Ring 8A0260749AK
- 22Valve 8A0820855AA
- 23Valve 3D0820855A
- 23Valve 8E0820855
- 24Part 5Q0816581A
- 24Part 5Q0816581
- 25Seal Ring 4D0260749B
- 28Pipe 1EA816739
- 30Part 5Q0816231
- 32Bolt N10347204
- 34Pipe 1EA816732A
- 34Pipe 1EA816732B
- 38Clip 1EA820317
- 38Clip 1EA820317A
- 39Expans Val 1EA816590B
- 40Part 1EA816114
- 40Part 1EA816114C
- 42Bolt N10438202
- 43Part WHT008829
- 44Bracket 1EA816087A
- 45Bolt N10805001
- 46Clip 7E0820255
Vehicle fitment table3
Europe (3)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi Q4 Sportback | 2021-2022 | 18 | 1 |
| Enyaq | 2020- | 18 | 1 |
| ID.4 Pro | 2020-2023 | 18 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
1EA816741N Volkswagen Refrigerant Line | Genuine OEM is fitted on: Audi Q4 Sportback 2021-2022; Enyaq 2020-; ID.4 Pro 2020-2023.
