1H0609528 Brake Shoe With Lining And Brake Lever
- 357609528Not stocked
May 1993 - 1H0609528This pageNot stocked
Aug 2002 - 1H0609528DNot stocked
Feb 2017 - 1H0698520XNot stocked
Jun 2014
- Discontinued May 2024357609819Discontinued
May 2024 - Discontinued May 2024357609820Discontinued
May 2024 - Current number6C0698520ACurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINShipping details
- Shipping weight
- 405 g
- Shipping size (L × W × H)
- 22.1 × 16.9 × 8.2 cm
- Customs (HS) code
- 87083091

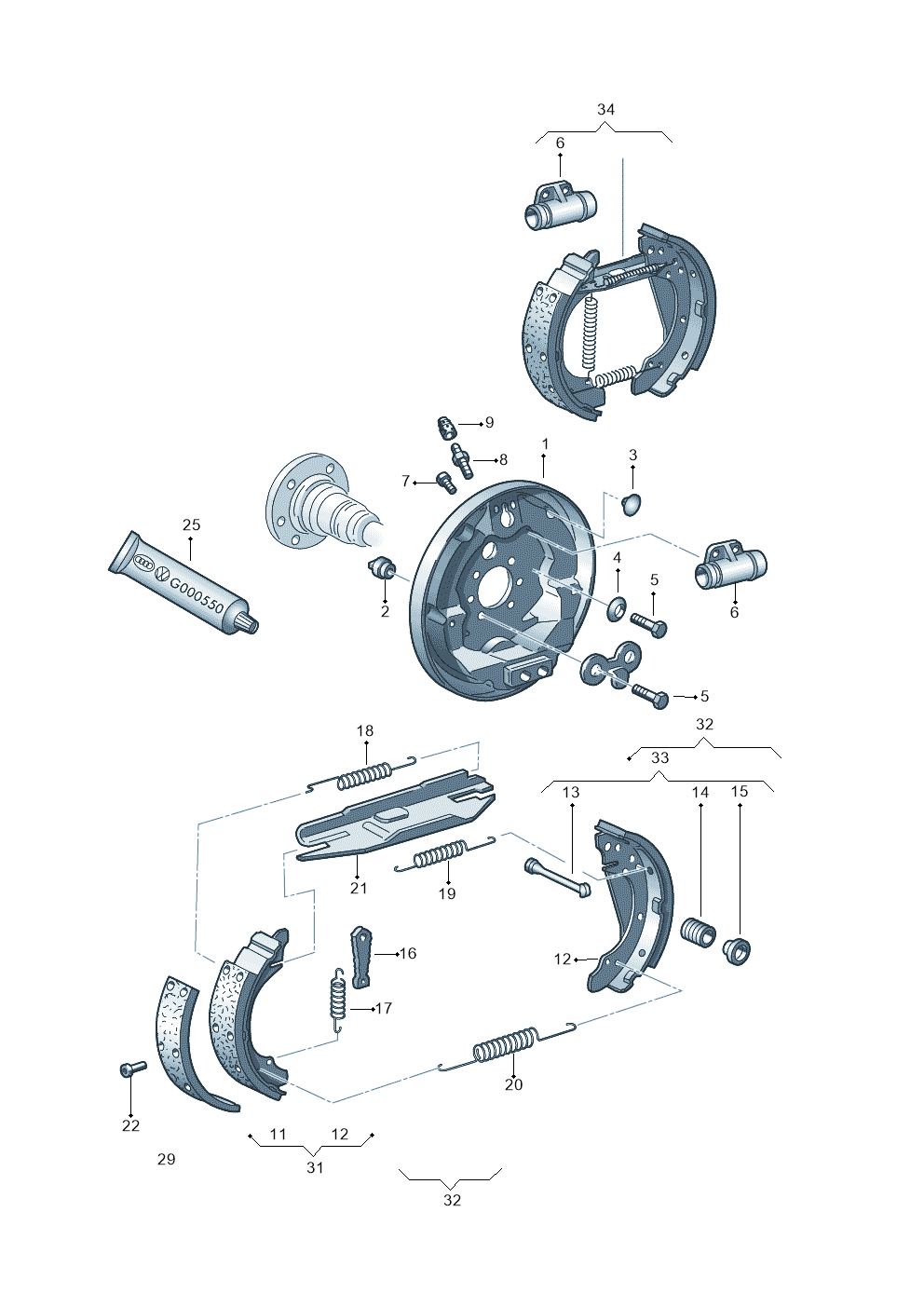

Parts diagram & fitment
7 vehiclesBrake Shoe With Lining And Brake Lever — locate Brake Shoe With Lining And Brake Lever in the official exploded view and explore the surrounding assembly.
RThis part is the Right side
Parts in this assembly32
- 1Back PlateRight6Q0609426
- 1Back PlateLeft6Q0609425
- 2Bungs 171609163
- 3Glidepiece 6N0609589
- 4Spring 321501119A
- 5Bolt N90758901
- 6Brake Cyli 6N0611053
- 7Screw N90818302
- 8Valve 3A0611475
- 9Part 211611483
- 11Brake ShoeRight1H0609526D
- 11Brake ShoeLeft1H0609525D
- 12Brake ShoeRight1H0609528D
- 12Brake ShoeLeft1H0609527D
- 13Part WHT001953
- 14Press Spring 171609583A
- 15Springseat 6Q0609709
- 16Wedge 171609705
- 17Spring 171609715
- 18Spring 357609707A
- 19SpringRight357609712A
- 19SpringLeft357609711A
- 20Spring 171609717
- 21Push BarRight6Q0609820B
- 21Push BarLeft6Q0609819B
- 22Rivet N0136331
- 25Paste G000650
- 29Brk Lining 1H0698071
- 31Brake Shoe 6R0698520X
- 32Fixing Set 1H0698545A
- 33Fixing Set 1H0698545B
- 34Brake Shoe 1H0698511X
Vehicle fitment table7
Europe (4)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| AUDI A2 | 2000-2005 | 12 | 1 | 1KB |
| Derby (MEX) | 1994-1996 | 12 | ||
| Audi 80/90 | 1989-1991 | 13 | 1 | |
| Audi 80/90 | 1987-1989 | 13 | 1 |
Other markets (3)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Golf/Jetta "USA","Mex"97>99 | 1996-1998 | 12 | ||
| Golf Cabrio "USA","MEX"96>99 | 1995-1998 | 13 | ||
| Golf/Jetta "USA","MEX"89>92 | 1988-1992 | 12 |
Diagrams & fitment data powered by oemdiagrams.com
Brake Shoe With Lining And Brake Lever is fitted on: AUDI A2 2000-2005; Derby (MEX) 1994-1996; Audi 80/90 1989-1991; Audi 80/90 1987-1989; Golf/Jetta "USA","Mex"97>99 1996-1998; Golf Cabrio "USA","MEX"96>99 1995-1998; Golf/Jetta "USA","MEX"89>92 1988-1992.
