1H0955747 Hose Bracket
- 6K0955747ANot stocked
Jul 1997 - 1H0955747This pageDiscontinued
May 2016
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

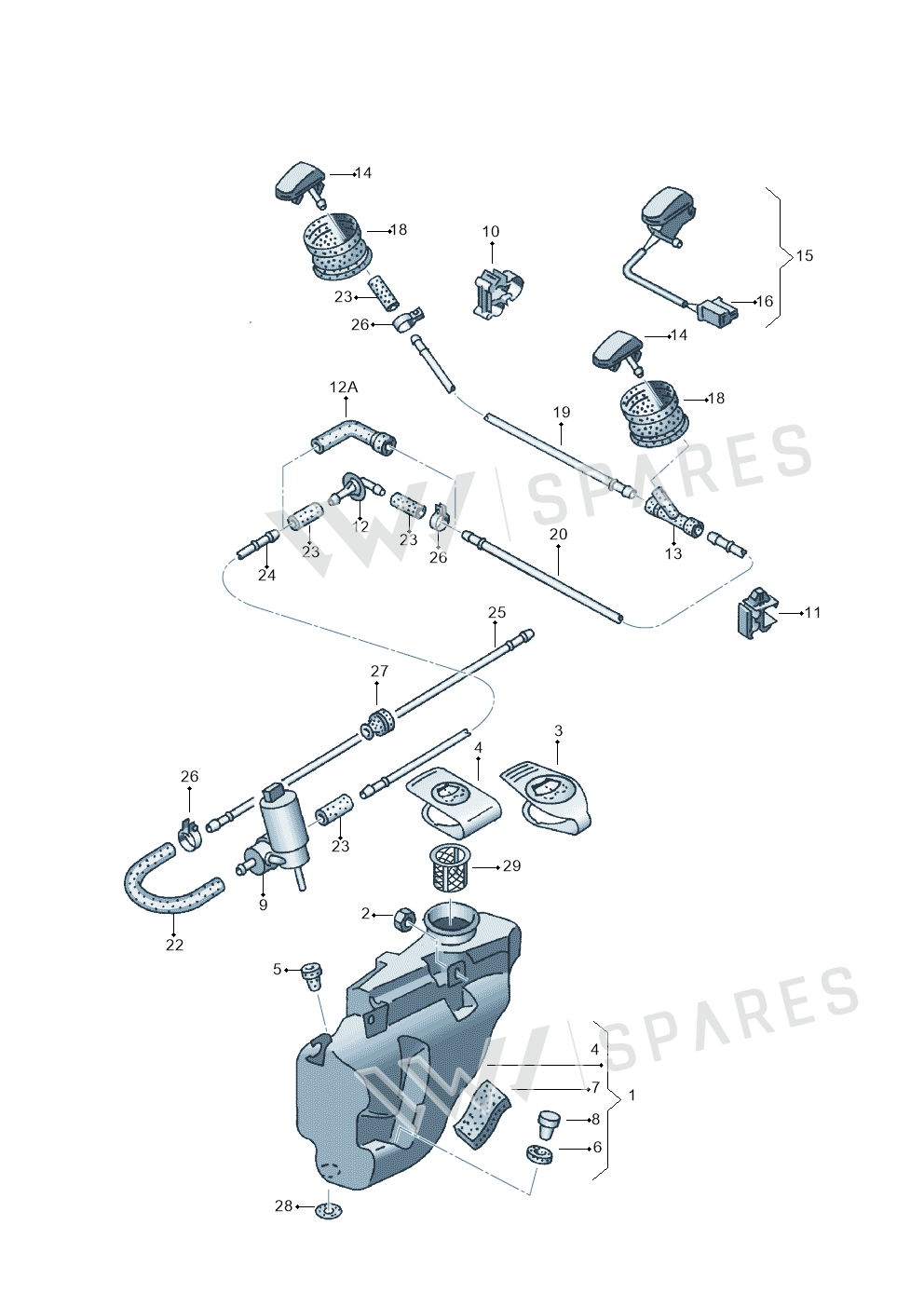

57 vehiclesHose Bracket — locate Hose Bracket in the official exploded view and explore the surrounding assembly.
Parts in this assembly23
- 1Container 1H0955451A
- 2Collar Nut N90352101
- 3Cover 1H0955455
- 4Cover 8D0955455
- 5Seal 443955465
- 6Seal 431955465A
- 7Underlay 867955499
- 8Bungs 444955647
- 9Pump 1H6955651
- 11Bracket 357955747
- 12Bracket 1H0955750
- 13Tpiece 6X0955975
- 14Nozzle 191955985A
- 15Nozzle 191955986A
- 16Housing 161971989C
- 17Hose 443955665
- 18Grommet 1H0955998
- 20Pipe 1J0955751D
- 22Hose 2D0955962
- 26Clip N0243992
- 27Grommet 171611751
- 28Seal 111857779
- 29Strainer 4A0955485
Vehicle fitment table57
Europe (35)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| caddy combi./del.van | 1998-2005 | 10 | 2 |
| TRANSPORTER SYNCRO | 1996-2003 | 9 | 6 |
| GOLF VAR./VENTO | 1996-1999 | 10 | 2 |
| POLO CLASSIC/VARIANT | 1996-1999 | 10 | 2 |
| Golf | 1996-1997 | 10 | 2 |
| Transporter 96 | 1996-1996 | 9 | 6 |
| CADDY-KOMBI/KASTEN | 1995-2003 | 10 | 2 |
| SHARAN/SYNCRO | 1995-2000 | 11B | 2 |
| Polo Classic 96 | 1995-1996 | 10 | 2 |
| Golf 96 | 1995-1996 | 10 | 2 |
| Golf Var./Vento 96 | 1995-1996 | 10 | 2 |
| TRANSPORTER SYNCRO | 1995-1995 | 9 | 6 |
| Passat | 1994-1997 | 7 | 5 |
| Golf Cabrio | 1994-1996 | 10 | 2 |
| Passat Var.syncro | 1994-1996 | 7 | 5 |
| Golf/Ecomatic 95 | 1994-1995 | 10 | 2 |
| Golf Var./Vento 95 | 1994-1995 | 10 | 2 |
| Golf/Var. syncro | 1993-1997 | 10 | 2 |
| Jetta GLX 94 | 1993-1994 | 10 | 2 |
| Transporter syncro | 1992-1995 | 9 | 6 |
| GOLF/Ecomatic | 1991-1994 | 10 | 2 |
| Passat syncro | 1991-1993 | 7 | 5 |
| Passat | 1991-1993 | 7 | 5 |
| Polo/Polo Coupe | 1990-1994 | 8 | 3 |
| Corrado | 1989-1995 | 7 | 4 |
| Passat | 1989-1991 | 7 | 5 |
| Jetta | 1989-1991 | 13 | 1 |
| Jetta 89 | 1988-1989 | 13 | 1 |
| GOLF,JETTA (MEX) | 1987-1992 | 15 | 1 |
| Jetta 88 | 1987-1988 | 13 | 1 |
| Jetta 87 | 1986-1987 | 13 | 1 |
| Golf/Jetta syn, Rallye | 1985-1991 | 13 | 1 |
| Jetta 86 | 1985-1986 | 13 | 1 |
| Jetta 85 | 1984-1985 | 13 | 1 |
| PASSAT,-VARIANT/2 81 | 1980-1981 | 8A | 3 |
Other markets (19)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Eurovan | 1998-2003 | 9 | 6 |
| Eurovan 98 | 1997-1998 | 9 | 6 |
| SANTANA 2000 "CN"96>04 | 1996-2004 | 8A | 3 |
| POLO CLASS./PL. "ZA" | 1996-2003 | 10 | 5 |
| Golf/Jetta "USA","Mex"97>99 | 1996-1998 | 10 | 4 |
| Eurovan | 1996-1997 | 9 | 6 |
| Golf Cabrio "USA","MEX"96>99 | 1995-1998 | 10 | 2 |
| Eurovan F>>70-T 96 | 1995-1995 | 9 | 6 |
| Eurovan 95 | 1994-1995 | 9 | 6 |
| Golf/Jetta "USA","MEX"93>96 | 1992-1996 | 10 | 4 |
| JETTA (FAW) 91> | 1991- | 13 | 1 |
| Eurovan | 1991-1994 | 9 | 6 |
| Golf/Jetta "USA","MEX"89>92 | 1988-1992 | 15 | 3 |
| Quantum | 1986-1988 | 8A | 3 |
| SANTANA/VARIANT "CN"86> | 1985- | 8A | 3 |
| Quantum syncro | 1985-1988 | 8A | 3 |
| Quantum 86 | 1985-1986 | 8A | 3 |
| Quantum 85 | 1984-1985 | 8A | 3 |
| Quantum | 1981-1984 | 8A | 3 |
Platform / generic diagrams (3)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| 701 platform | 9 | ||
| 6K0 platform | 10 | 2 | |
| 6K0 platform | 10 | 2 |
Diagrams & fitment data powered by oemdiagrams.com
Hose Bracket is fitted on: caddy combi./del.van 1998-2005; TRANSPORTER SYNCRO 1996-2003; GOLF VAR./VENTO 1996-1999; POLO CLASSIC/VARIANT 1996-1999; Golf 1996-1997; Transporter 96 1996-1996; CADDY-KOMBI/KASTEN 1995-2003; SHARAN/SYNCRO 1995-2000; Polo Classic 96 1995-1996; Golf 96 1995-1996; Golf Var./Vento 96 1995-1996; TRANSPORTER SYNCRO 1995-1995; Passat 1994-1997; Golf Cabrio 1994-1996; Passat Var.syncro 1994-1996; Golf/Ecomatic 95 1994-1995; Golf Var./Vento 95 1994-1995; Golf/Var. syncro 1993-1997; Jetta GLX 94 1993-1994; Transporter syncro 1992-1995; GOLF/Ecomatic 1991-1994; Passat syncro 1991-1993; Passat 1991-1993; Polo/Polo Coupe 1990-1994; Corrado 1989-1995; Passat 1989-1991; Jetta 1989-1991; Jetta 89 1988-1989; GOLF,JETTA (MEX) 1987-1992; Jetta 88 1987-1988; Jetta 87 1986-1987; Golf/Jetta syn, Rallye 1985-1991; Jetta 86 1985-1986; Jetta 85 1984-1985; PASSAT,-VARIANT/2 81 1980-1981; Eurovan 1998-2003; Eurovan 98 1997-1998; SANTANA 2000 "CN"96>04 1996-2004; POLO CLASS./PL. "ZA" 1996-2003; Golf/Jetta "USA","Mex"97>99 1996-1998; Eurovan 1996-1997; Golf Cabrio "USA","MEX"96>99 1995-1998; Eurovan F>>70-T 96 1995-1995; Eurovan 95 1994-1995; Golf/Jetta "USA","MEX"93>96 1992-1996; JETTA (FAW) 91> 1991-; Eurovan 1991-1994; Golf/Jetta "USA","MEX"89>92 1988-1992; Quantum 1986-1988; SANTANA/VARIANT "CN"86> 1985-; Quantum syncro 1985-1988; Quantum 86 1985-1986; Quantum 85 1984-1985; Quantum 1981-1984; 701 platform; 6K0 platform.
