Product overview
Genuine OEM Volkswagen Underlay, part number 867955499. This underlay provides insulation and protection in the vehicle's interior or underbody. Genuine OEM parts ensure correct material and fit.
Catalogue entry: UNDERLAY.
Technical details
- Category
- Heating & A/C
- Country of origin
- Germany
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 10 × 10 × 1.5 cm
- Shipping weight
- 0.03 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Thread
- M6x16 mm
- Dimensions
- 70x35
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment

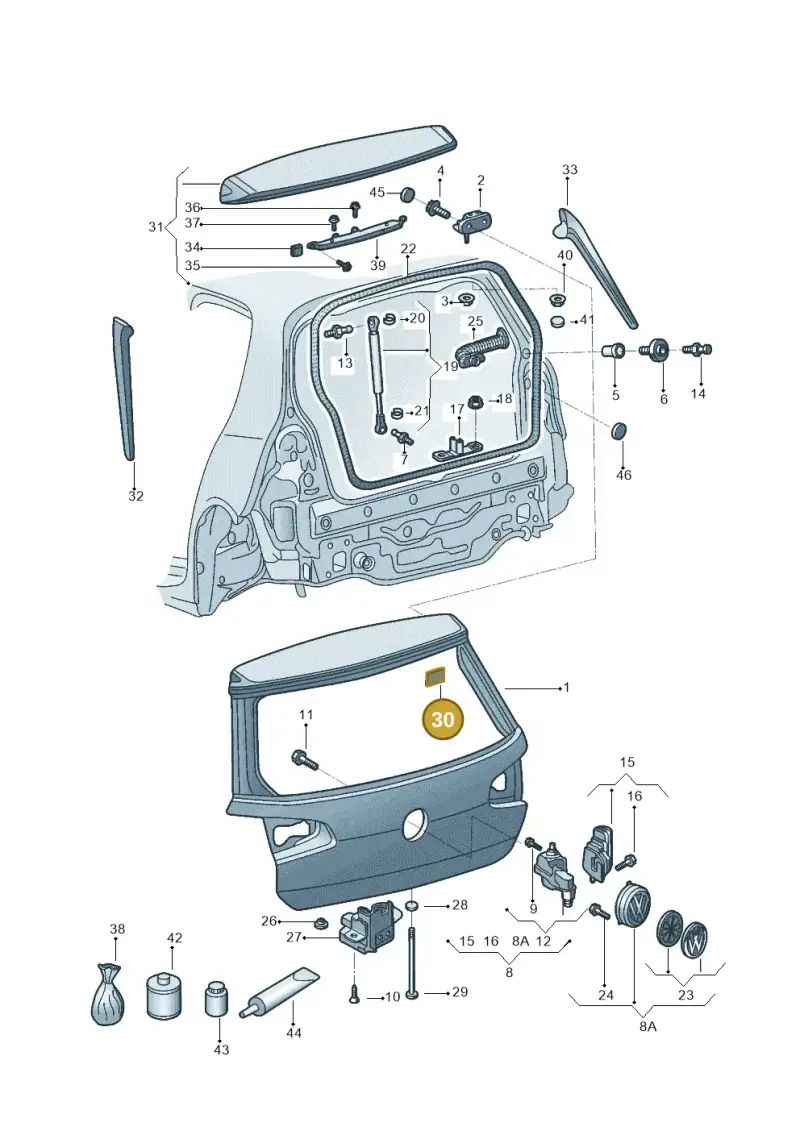

121 vehiclesUnderlay — locate 867955499 Volkswagen Underlay | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly24
- 1Bracket 1K6937545K
- 2Bracket 1K0937545M
- 4Part 1J0937510A
- 5Cable Duct 6C0971615
- 6Bracket 12E971592A
- 7Cable Duct 12E971341A
- 8Grommet 1S0971841
- 9Grommet 1S0971841A
- 10Grommet 1S0971915A
- 11Cable Duct 1S0971445H
- 11Cable Duct 1S0971445G
- 12Bracket N10685401
- 13Bracket 12E971899
- 14Bolt N91042302
- 15Tape 1J0971798C
- 16Bracket 1P0971848F
- 17Clip N91115901
- 18Grommet 1J0971903
- 19Bracket 1P0971848C
- 20Bracket 1S0907461A
- 21Bracket 6Y0972596
- 22Clip 1Z0971848E
- 23Bracket 12E971336
- 24Bracket 12E971336A
Vehicle fitment table169
Europe (90)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Mii electric | 2020-2021 | 3 | |||
| Citigo | 2019-2021 | 3 | |||
| Polo 1.0 BlueMotion | 2017-2024 | 6 | X | ||
| Arteon | 2017-2023 | 1 | 1 | ||
| e-up! | 2016-2023 | 3 | |||
| Audi A3 Cabrio | 2016-2020 | 10 | 2 | PR:QV1,QV3 | QV1 |
| Ibiza Stylance | 2015- | 11 | |||
| Sharan BlueMotion | 2015-2022 | 30 | 4 | L0L | |
| Alhambra Stylance | 2015-2022 | 30 | 28 | ||
| golf 1.6 | 2015-2019 | 30 | 1 | ||
| Toledo Reference | 2015-2019 | 12 | 1 | ||
| Passat saloon | 2014-2024 | 1 | 1 | ||
| Golf Sportsvan 1.6 | 2014-2020 | 24 | 1 | ||
| Polo 1.4 BlueMotion | 2014-2017 | 12 | 2 | ||
| Golf 1.4 BlueMotion | 2014-2017 | 30 | 2 | ||
| jetta | 2014-2017 | 12 | 1 | ||
| e-up! | 2013-2016 | 3 | |||
| Audi A3 Cab. 1.4 | 2013-2016 | 10 | 2 | PR:QV1,QV3 | QV1 |
| Amarok twin cab | 2012-2016 | 25 | 2 | ||
| Toledo Reference | 2012-2015 | 12 | 1 | ||
| Polo | 2011-2014 | 23 | X | ||
| phaeton 4motion | 2010-2016 | 90 | 2 | 7X2 | |
| Polo | 2010-2015 | 23 | 1 | ||
| Sharan Blue Motion | 2010-2015 | 30 | 28 | ||
| Eos BlueMotion | 2010-2015 | 13 | |||
| jetta | 2010-2014 | 12 | 1 | ||
| Alhambra Stylance | 2010-2013 | 30 | 28 | ||
| Polo | 2009-2014 | 23 | 1 | ||
| Polo | 2009-2012 | 3A | |||
| Sharan | 2008-2010 | 8 | 1 | ||
| EOS 2.0 | 2008-2010 | 13 | |||
| phaeton 4motion | 2008-2010 | 19 | 2 | 7X2 | |
| PHAETON 08> | 2007- | 19 | 2 | 7X2 | |
| Alhambra | 2006-2010 | 8 | 1 | ||
| New Beetle 06> | 2005- | 10 | 1 | "BR." | |
| New Beetle Cabrio. 06> | 2005- | 22 | 1 | ||
| SHARAN/4MOTION | 2005- | 8 | 1 | ||
| ALHAMBRA/4MOTION | 2005- | 8 | 1 | ||
| Phaeton (lang) | 2003-2006 | 19 | 2 | 7X2 | |
| New Beetle Cabrio. | 2003-2005 | 34 | 1 | ||
| SHARAN/4MOTION | 2002-2005 | 8 | 1 | ||
| ALHAMBRA/4MOTION | 2002-2005 | 8 | 1 | ||
| GOLF CABRIO | 2002-2002 | 7 | 1 | ||
| SUPERB 02> | 2001- | 12 | |||
| TOLEDO/LEON/LEON-4 | 2001-2006 | 17 | 1 | ||
| New Beetle | 2001-2005 | 34 | 1 | ||
| SHARAN/4MOTION | 2000-2002 | 8 | 1 | ||
| ALHAMBRA/4MOTION | 2000-2002 | 8 | 1 | ||
| POLO | 1999-2001 | 7 | X | ||
| New Beetle | 1998-2001 | 34 | 1 | ||
| GOLF CABRIO | 1998-2001 | 7 | 1 | ||
| TOLEDO/LEON/LEON-4 | 1998-2001 | 17 | 1 | ||
| TRANSPORTER SYNCRO | 1996-2003 | 7 | 1 | ||
| ALHAMBRA | 1996-2000 | 26 | 1 | ||
| GOLF VAR./VENTO | 1996-1999 | 7 | 1 | ||
| Golf | 1996-1997 | 7 | 1 | ||
| Transporter 96 | 1996-1996 | 7 | 1 | ||
| SHARAN/SYNCRO | 1995-2000 | 26, 19 | 1 | ||
| Golf 96 | 1995-1996 | 7 | 1 | ||
| Golf Var./Vento 96 | 1995-1996 | 7 | 1 | ||
| TRANSPORTER SYNCRO | 1995-1995 | 7 | 1 | ||
| POLO | 1994-1999 | 7, 11 | X | ||
| Passat | 1994-1997 | 31, 5 | 1 | ||
| Derby (MEX) | 1994-1996 | 7 | 1 | ||
| Golf Cabrio | 1994-1996 | 19, 7 | 1 | ||
| Passat Var.syncro | 1994-1996 | 31, 5 | 1 | ||
| Golf/Ecomatic 95 | 1994-1995 | 19, 7 | 1 | ||
| Golf Var./Vento 95 | 1994-1995 | 19, 7 | 1 | ||
| Golf/Var. syncro | 1993-1997 | 19, 7 | 1 | ||
| Jetta GLX 94 | 1993-1994 | 19, 7 | 1 | ||
| Transporter syncro | 1992-1995 | 19, 7 | 1 | ||
| GOLF/Ecomatic | 1991-1994 | 19, 7 | 1 | ||
| Passat syncro | 1991-1993 | 31, 5 | 1 | ||
| Passat | 1991-1993 | 31, 5 | 1 | ||
| Polo/Polo Coupe | 1990-1994 | 31, 5 | 1 | ||
| Corrado | 1989-1995 | 25 | 1 | ||
| Audi V8 | 1989-1993 | 23 | 4 | ||
| Passat | 1989-1991 | 31, 5 | 1 | ||
| Audi 100/Wagon | 1989-1990 | 8A | 1 | ||
| Audi 200 Turbo | 1988-1990 | 8A | 1 | ||
| Audi 100/Wagon qu. | 1988-1990 | 26 | 1 | ||
| Audi 200T/Wagon qu. | 1988-1990 | 26 | |||
| Audi 100/Wagon 89 | 1988-1989 | 8A | 4 | ||
| Audi 5000 S/Wagon qu. | 1987-1988 | 23 | 1 | ||
| Audi 5000 S/Wagon | 1986-1988 | 8A | 1 | ||
| Audi 5000 Turbo | 1984-1988 | 8A | 1 | ||
| Audi 5000/Wagon qu. | 1984-1988 | 23 | 1 | ||
| Audi 5000 S/Wagon | 1984-1986 | 8A | 4 | ||
| Audi 5000 S/Wagon 84 | 1983-1984 | 8A | 1 | ||
| KAEFER (MEX.) | 1964-2003 | 9 | 1 |
Other markets (29)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Atlas Cross Sport | 2023- | 1 | 1 | ||
| Atlas | 2023-2024 | 1 | 1 | ||
| Atlas Cross Sport | 2019-2023 | 1 | 1 | ||
| CC Fastback | 2018- | 1 | 1 | ||
| Polo Vivo | 2017- | 2 | 1 | ||
| Jetta 1.4 | 2017-2024 | 25 | 1 | 9VG | |
| Magotan 2.0 | 2016- | 1 | 1 | ||
| Voyage | 2016-2023 | 6 | 1 | ||
| Atlas | 2016-2023 | 1 | 1 | ||
| saveiro | 2016-2017 | 6 | 1 | ||
| Gol 1.6 | 2015-2023 | 6 | 1 | ||
| Polo 1.6 | 2013-2022 | 23 | 1 | ||
| Rapid Ambition | 2011-2021 | 23 | 1 | ||
| Magotan 1.4 | 2011-2012 | 3 | 1 | ||
| bora | 2008-2016 | 12 | 1 | 8L3 | |
| POLO HATCH "ZA"06> | 2005- | 30 | 2 | ||
| Eurovan | 1998-2003 | 7 | 1 | ||
| Golf Cabrio "USA","Mex"99>02 | 1998-2002 | 7 | 1 | ||
| Eurovan 98 | 1997-1998 | 7 | 1 | ||
| Golf/Jetta "USA","Mex"97>99 | 1996-1998 | 7 | 1 | ||
| Eurovan | 1996-1997 | 7 | 1 | ||
| AUDI 200 CHINA | 1995-1999 | 8A | 4 | ||
| Golf Cabrio "USA","MEX"96>99 | 1995-1998 | 7 | 1 | ||
| Eurovan F>>70-T 96 | 1995-1995 | 7 | 1 | ||
| Eurovan 95 | 1994-1995 | 19, 7 | 1 | ||
| Golf/Jetta "USA","MEX"93>96 | 1992-1996 | 7 | 1 | ||
| Eurovan | 1991-1994 | 19, 7 | 1 | ||
| AUDI 100 (CHINA) | 1988-1995 | 8A | 4 | ||
| Rabbit Conv./Cabrio | 1983-1993 | 30 | 1 |
Platform / generic diagrams (2)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| 1C0 platform | 28 | 3 | |||
| 701 platform | 7 |
