1K0121086AF Coolant Hose
- 1K0121086AFThis pageNot stocked
Jul 2010 - 1K0121086BCCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

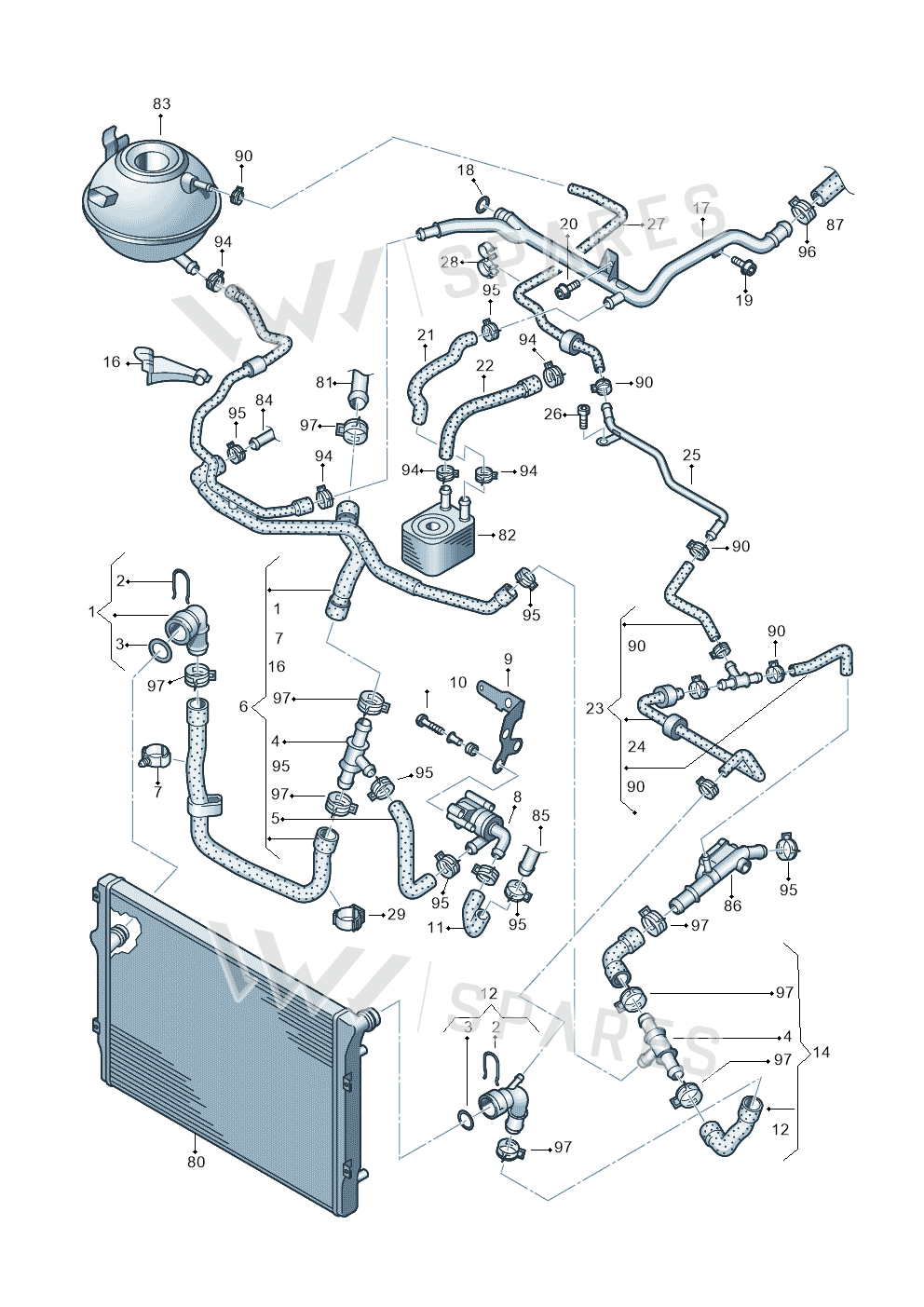

8 vehiclesCoolant Hose — locate Coolant Hose in the official exploded view and explore the surrounding assembly.
Parts in this assembly42
- 1Coupl Piece 1K0122291BM
- 2Seal Ring N90765301
- 3Spring 1J0121142
- 4Tpiece N90693001
- 5Hose 5N0121051E
- 6Hose 1K0122051GQ
- 7Bracket 3C0121093
- 8Pump 5N0965561
- 9Bolt WHT003361
- 9Bracket 5N0121093A
- 10Fixing Set 5N0198093
- 11Hose 5N0121051A
- 12Coupl Piece 3C0122291
- 14Hose 3C0122101ET
- 16Bracket 1K0133687B
- 17Water Pipe 03L121065H
- 18Seal Ring 06B121687
- 19Screw N10698101
- 20Screw N90853802
- 21Hose 3C0121058AR
- 21Hose 1K0121058BS
- 22Hose 1K0121096BH
- 23Hose 5N0122447K
- 25Water Pipe 5N0121070M
- 26Bolt N10406504
- 27Hose 1K0122447GR
- 28Bracket N10462801
- 29Bracket 5N0121093C
- 81Connection 03L121121
- 84Water Pipe 5N0121065
- 85Water Pipe 5N0121070F
- 86Flange 03L121132
- 87Hose 1K0122073GE
- 90Clamp N90686701
- 91Clamp 4B0422379
- 92Clamp N90770201
- 93Clamp N90926401
- 94Clamp N90686902
- 95Clamp N90687001
- 96Clamp N90687101
- 97Clamp N90687201
- 98Clamp N90926501
Vehicle fitment table8
Europe (8)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Audi A3 Sportback | 2008-2013 | 22 | ||
| superb comfort | 2008-2013 | 30 | 1 | BAB |
| golf 2.0 | 2008-2011 | 30 | 1 | BAB |
| passat estate | 2008-2011 | 29, 30 | 1 | |
| Passat/4Motion 08 | 2007- | 29 | 1 | G1A |
| Audi A3 Cab. 2.0 TDI | 2007-2013 | 22, 30 | ||
| ALTEA 07> | 2006- | 22, 30 | ||
| LEON 06> | 2005- | 22, 30 |
Diagrams & fitment data powered by oemdiagrams.com
Coolant Hose is fitted on: Audi A3 Sportback 2008-2013; superb comfort 2008-2013; golf 2.0 2008-2011; passat estate 2008-2011; Passat/4Motion 08 2007-; Audi A3 Cab. 2.0 TDI 2007-2013; ALTEA 07> 2006-; LEON 06> 2005-.
