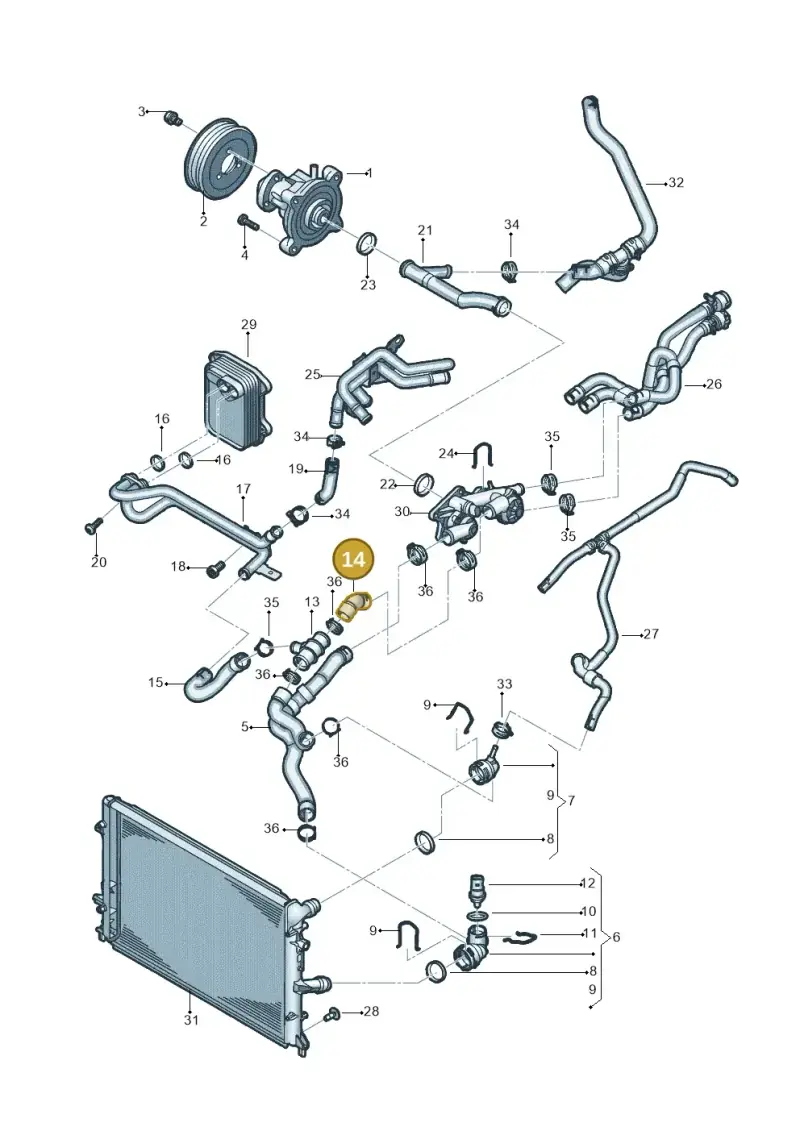

Number 14 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Cooler Coolant Hose, part number 1K0121101CQ. This vital hose is designed to transport engine coolant efficiently to the cooler, playing a critical role in the vehicle's engine cooling system. It ensures proper heat dissipation to maintain optimal engine operating temperatures. This hose is located within the engine bay, connecting specific components of the cooling circuit. Weighing 0.0545 kg and measuring 100x70x40mm, it is constructed from high-quality, heat-resistant rubber. Using a genuine OEM coolant hose guarantees the correct material composition, pressure resistance, and routing geometry, preventing leaks and ensuring the long-term reliability of the cooling system.
Catalogue entry: HOSE.
Fitted with: 1K0122101HR HOSE, 1K0121049DN HOSE, N90687201 CLAMP.
Technical details
- Category
- Engine Cooling
- Country of origin
- Turkey
- Customs (HS) code
- 40093100
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 10 × 7 × 4 cm
- Shipping weight
- 0.05 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
41 vehiclesCoolant Hose — locate 1K0121101CQ Volkswagen Cooler Coolant Hose | Engine Cooling in the official exploded view and explore the surrounding assembly.
Parts in this assembly33
- 1Water Pump 03C121008EX
- 1Part 03C121008H
- 1Part 03C121008HX
- 1Water Pump 03C121008E
- 2Pulley 03D121028B
- 3Screw N91052201
- 4Screw N91097201
- 5Part 1K0121049DN
- 5Hose 1K0122101HR
- 6Coupl Piece 1K0122291AD
- 7Coupl Piece 1K0122291BE
- 8Seal Ring N90765301
- 9Spring 1J0121142
- 10Seal Ring N90316801
- 11Spring 032121142
- 12Sender 06A919501A
- 13Adapter N90692901
- 15Hose 1K0121096BN
- 16Seal Ring 03C121437
- 17Water Pipe 03C121050P
- 18Screw N90355405
- 19Hose 1K0121058BC
- 20Screw N91099101
- 21Water Pipe 03C121065B
- 22Seal Ring 03C121666
- 23Seal Ring 03C121665
- 24Spring 03C121142
- 25Water Pipe 03C121070L
- 28Bolt N90817003
- 33Clamp N90686701
- 34Clamp N90686902
- 35Clamp N90687001
- 36Clamp N90687201
Compatible / alternative parts(12)
Vehicle fitment table41
Europe (38)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Jetta 1.6 | 2014-2018 | 14 | 1 | ||

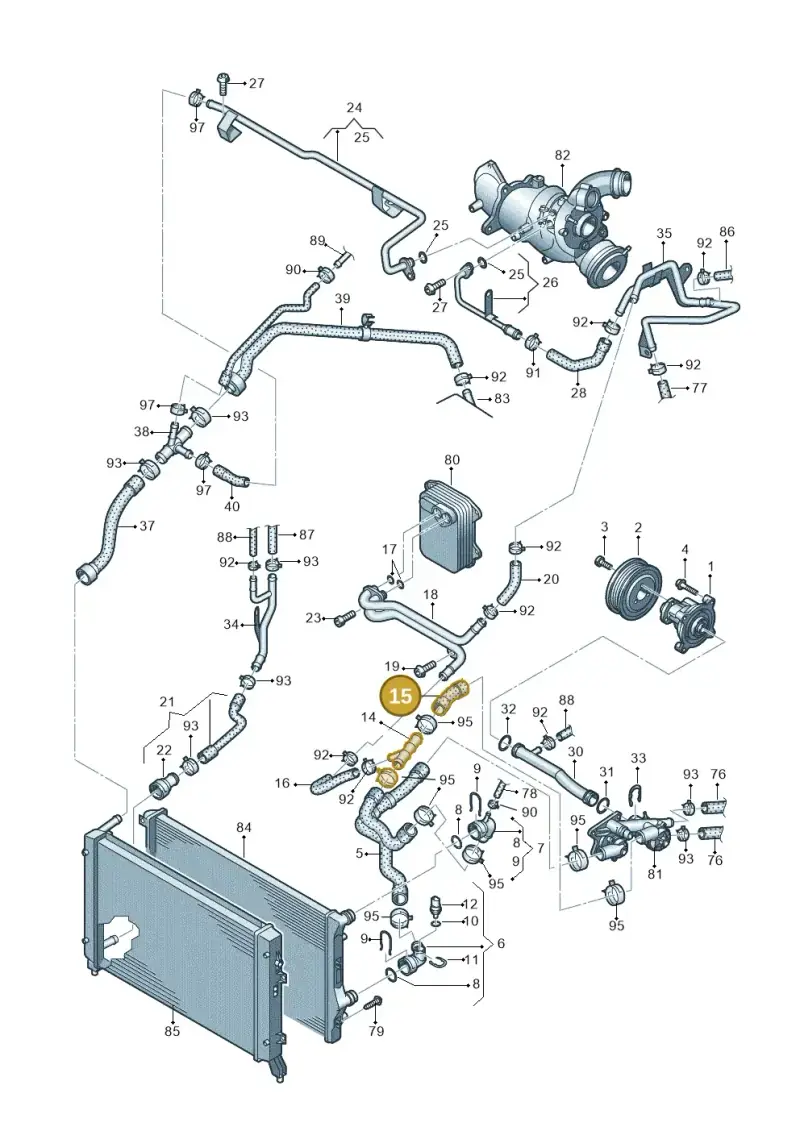

| Scirocco 2.0 | 2014-2017 | 15 | 1 | ||
| jetta | 2014-2017 | 14 | 1 | ||
| Yeti | 2013-2017 | 15 | 1 | TU0 | |
| superb | 2013-2015 | 15 | 1 | TU0 | |

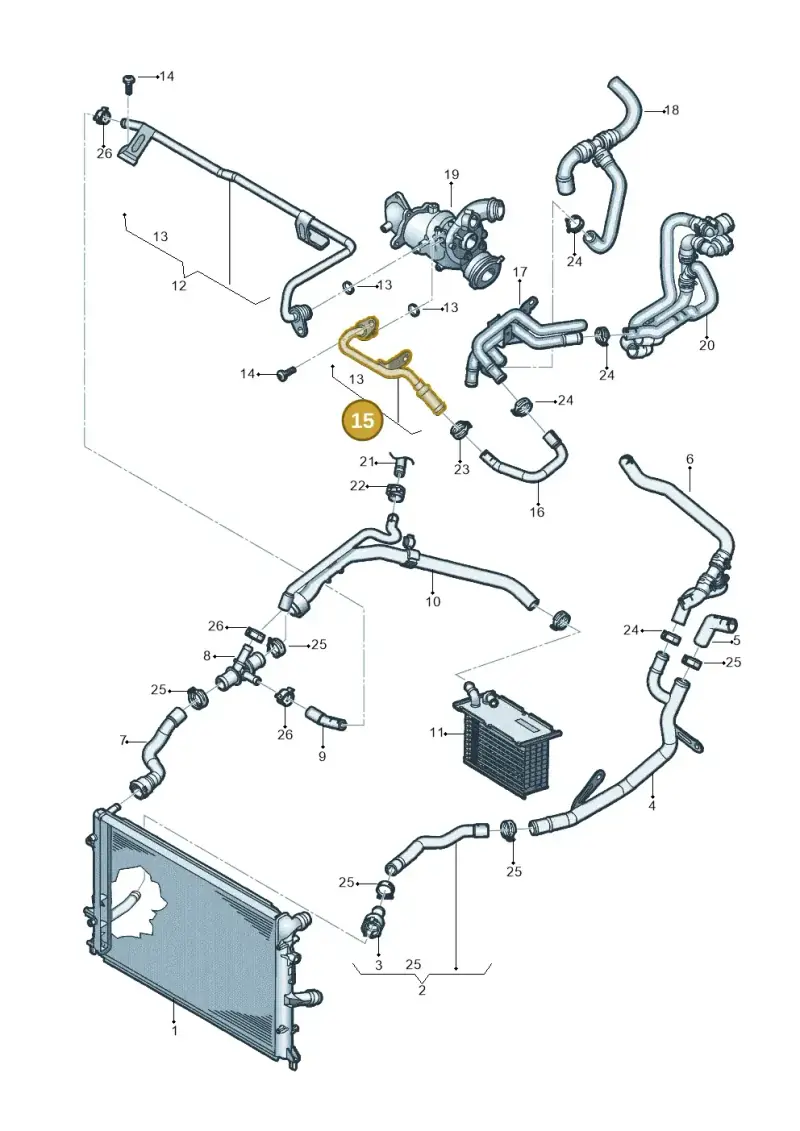

| jetta | 2013-2014 | 14, 15 | 1 | ||
| Altea XL Reference | 2013-2013 | 15 | 1 | TU0 | |
| Toledo Reference | 2012-2015 | 15 | 1 | TU0 | |
| Golf Cabriolet | 2011-2016 | 15 | 1 | PR:0EG,0EM | |
| Golf Plus | 2011-2014 | 15 | 1 | TU0 | |
| Golf | 2011-2013 | 15 | 1 | PR:0EG,0EM | |
| Passat saloon | 2010-2015 | 15 | 1 | TU0 | |
| Eos BlueMotion | 2010-2015 | 15 | 1 | TU0 | |
| jetta | 2010-2014 | 15 | 1 | ||
| Altea XL Reference | 2010-2013 | 15 | 1 | TU0 | |
| Leon Stylance | 2010-2012 | 15 | 1 | TU0 | |
| golf estate | 2009-2013 | 15 | 1 | ||
| Yeti | 2009-2013 | 15 | 1 | TU0 | |
| Golf Plus 1.6 | 2009-2011 | 15 | 1 | TU0 | |
| Scirocco 2.0 | 2008-2014 | 15 | 1 | TU0 | |
| superb comfort | 2008-2013 | 15 | 1 | TU0 | |
| octavia ambiente | 2008-2013 | 15 | 1 | TU0 | |
| Audi A3 Sportback | 2008-2013 | 15 | 1 | TU0 | |
| golf 2.0 | 2008-2011 | 15 | 1 | PR:0EG,0EM | |
| passat estate | 2008-2011 | 15 | 1 | TU0 | |
| jetta | 2008-2011 | 15 | 1 | ||
| EOS 2.0 | 2008-2010 | 15 | 1 | TU0 | |
| GOLF VARIANT 07> | 2007- | 15 | 1 | ||
| GOLF PLUS 08> | 2007- | 15 | 1 | TU0 | |
| Passat/4Motion 08 | 2007- | 15 | 1 | TU0 | |
| Audi A3/S3/Sportb./qu. 08 | 2007- | 15 | 1 | TU0 | |
| Audi A3 Cab. 2.0 TDI | 2007-2013 | 15 | 1 | TU0 | |
| EOS-Cabriolet-Coupe | 2006- | 15 | 1 | TU0 | |
| JETTA 06> | 2006- | 15 | 1 | ||
| ALTEA 07> | 2006- | 15 | 1 | TU0 | |
| JETTA 06> | 2005- | 15 | 1 | 0EG | |
| LEON 06> | 2005- | 15 | 1 | TU0 | |
| TOLEDO 05> | 2004- | 15 | 1 | TU0 |
Other markets (3)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Magotan 1.4 | 2011-2012 | 15 | 1 | TT3 | |
| MAGOTAN (PASSAT) 07> | 2007- | 15 | 1 | ||
| Golf/Rabbit 08> | 2007- | 15 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
1K0121101CQ Volkswagen Cooler Coolant Hose | Engine Cooling is fitted on: Jetta 1.6 2014-2018; Scirocco 2.0 2014-2017; jetta 2014-2017; Yeti 2013-2017; superb 2013-2015; jetta 2013-2014; Altea XL Reference 2013-2013; Toledo Reference 2012-2015; Golf Cabriolet 2011-2016; Golf Plus 2011-2014; Golf 2011-2013; Passat saloon 2010-2015; Eos BlueMotion 2010-2015; jetta 2010-2014; Altea XL Reference 2010-2013; Leon Stylance 2010-2012; golf estate 2009-2013; Yeti 2009-2013; Golf Plus 1.6 2009-2011; Scirocco 2.0 2008-2014; superb comfort 2008-2013; octavia ambiente 2008-2013; Audi A3 Sportback 2008-2013; golf 2.0 2008-2011; passat estate 2008-2011; jetta 2008-2011; EOS 2.0 2008-2010; GOLF VARIANT 07> 2007-; GOLF PLUS 08> 2007-; Passat/4Motion 08 2007-; Audi A3/S3/Sportb./qu. 08 2007-; Audi A3 Cab. 2.0 TDI 2007-2013; EOS-Cabriolet-Coupe 2006-; JETTA 06> 2006-; ALTEA 07> 2006-; JETTA 06> 2005-; LEON 06> 2005-; TOLEDO 05> 2004-; Magotan 1.4 2011-2012; MAGOTAN (PASSAT) 07> 2007-; Golf/Rabbit 08> 2007-.
