Target · Diagram
Find this reference above

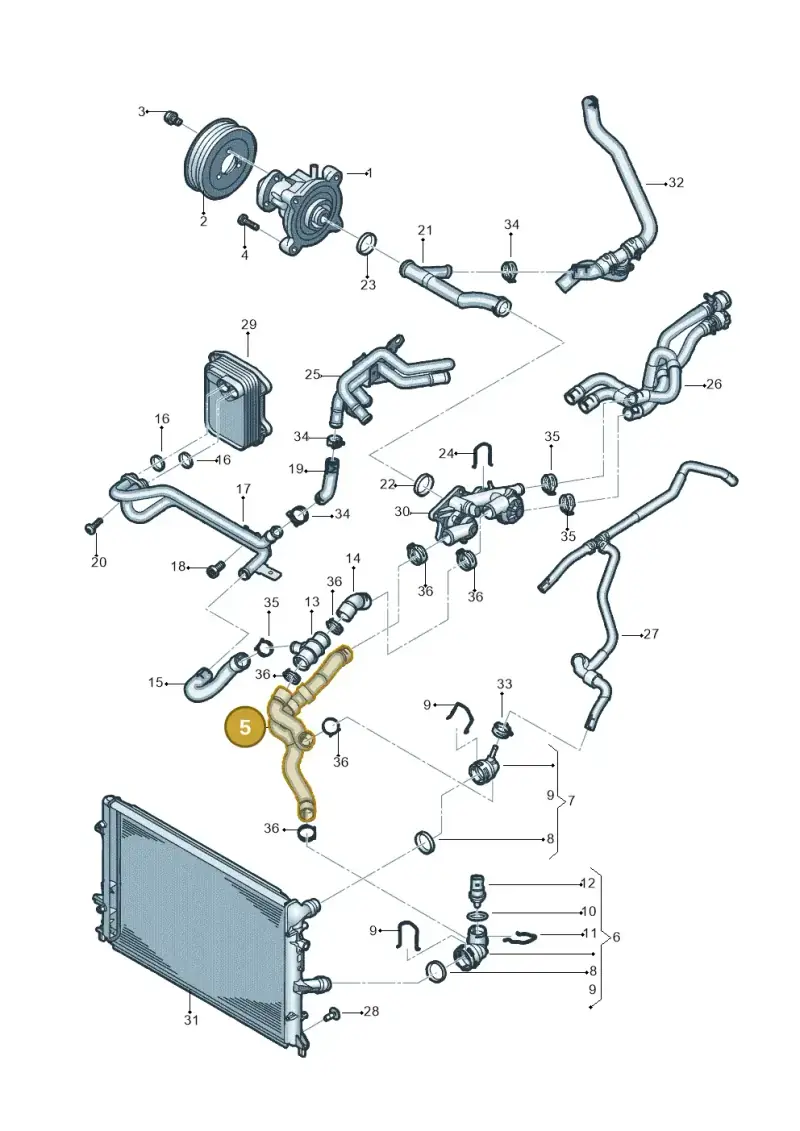

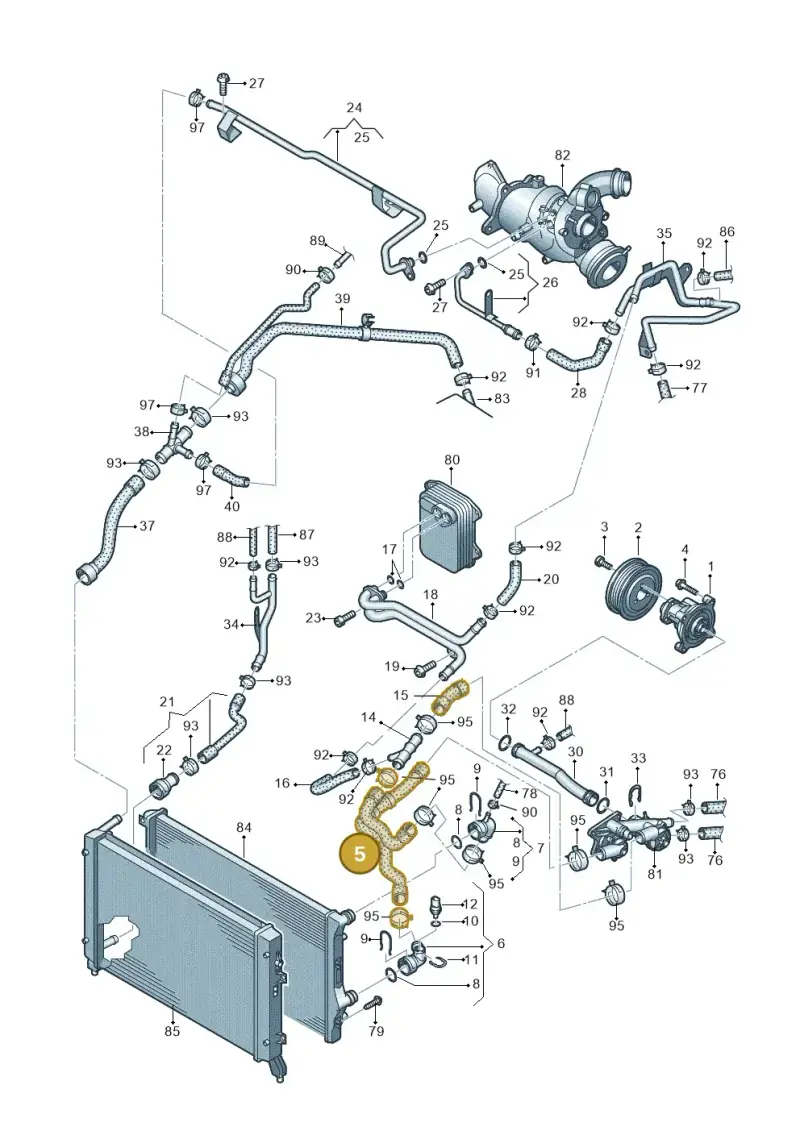

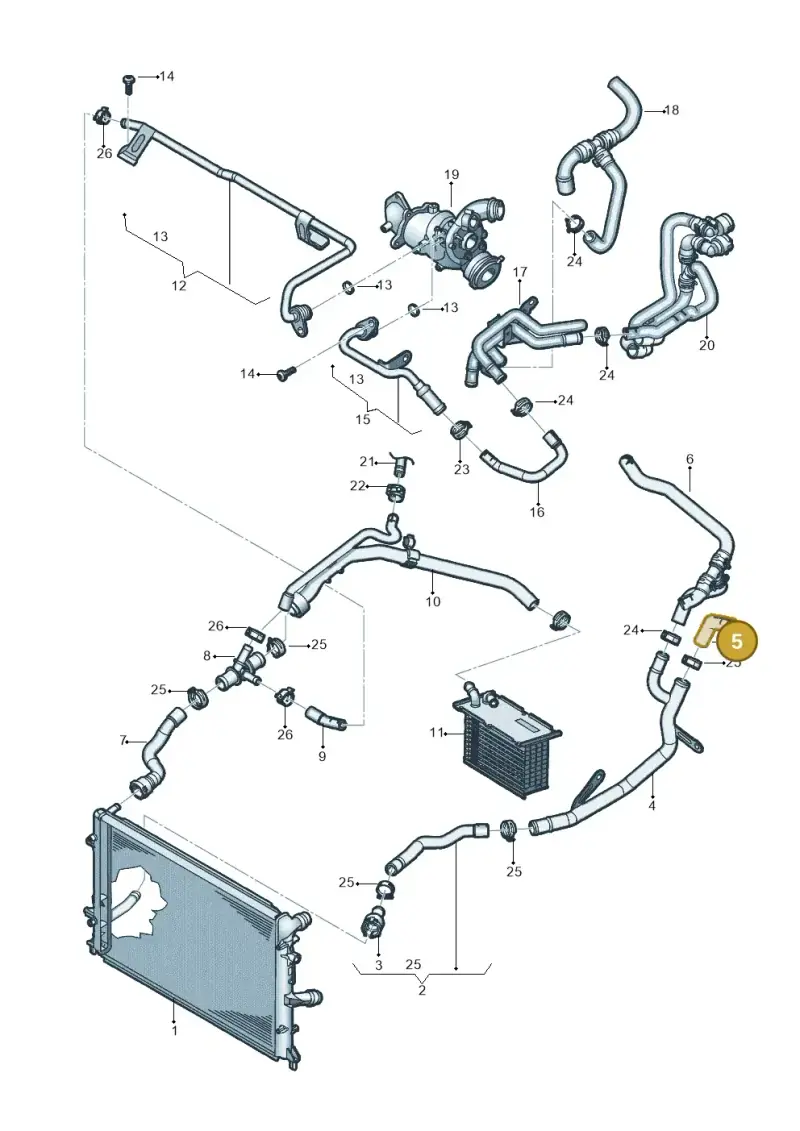

Number 5 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Engine Coolant Hose, part number 1K0122101HR. This hose is a critical component of the engine cooling system, responsible for transporting coolant to and from the radiator to maintain optimal engine operating temperature. The diagram indicates it connects to the lower section of the radiator. Weighing approximately 0.515 kg, it is constructed for durability and resistance to high temperatures and pressures. Choosing a genuine OEM coolant hose ensures precise routing, correct material composition, and reliable sealing, preventing leaks and ensuring efficient cooling.
Catalogue entry: HOSE.
Fitted with: 1K0121049DN HOSE, 1K0121101CQ HOSE, N90687201 CLAMP.
Technical details
- Category
- Engine Cooling
- Country of origin
- Turkey
- Customs (HS) code
- 40093100
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 48 × 27 × 11 cm
- Shipping weight
- 0.52 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
38 vehiclesCoolant Hose — locate 1K0122101HR Volkswagen Engine Coolant Hose | Radiator Connection in the official exploded view and explore the surrounding assembly.
Parts in this assembly33
- 1Water Pump 03C121008EX
- 1Part 03C121008H
- 1Part 03C121008HX
- 1Water Pump 03C121008E
- 2Pulley 03D121028B
- 3Screw N91052201
- 4Screw N91097201
- 5Part 1K0121049DN
- 6Coupl Piece 1K0122291AD
- 7Coupl Piece 1K0122291BE
- 8Seal Ring N90765301
- 9Spring 1J0121142
- 10Seal Ring N90316801
- 11Spring 032121142
- 12Sender 06A919501A
- 13Adapter N90692901
- 14Hose 1K0121101CQ
- 15Hose 1K0121096BN
- 16Seal Ring 03C121437
- 17Water Pipe 03C121050P
- 18Screw N90355405
- 19Hose 1K0121058BC
- 20Screw N91099101
- 21Water Pipe 03C121065B
- 22Seal Ring 03C121666
- 23Seal Ring 03C121665
- 24Spring 03C121142
- 25Water Pipe 03C121070L
- 28Bolt N90817003
- 33Clamp N90686701
- 34Clamp N90686902
- 35Clamp N90687001
- 36Clamp N90687201
Compatible / alternative parts(1)
Vehicle fitment table38
Europe (35)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Jetta 1.6 | 2014-2018 | 5 | 1 | ||
| Scirocco 2.0 | 2014-2017 | 5 | 1 | ||
| jetta | 2014-2017 | 5 | 1 | ||
| Yeti | 2013-2017 | 5 | 1 | TU0 | |
| superb | 2013-2015 | 5 | 1 | TU0 | |
| jetta | 2013-2014 | 5 | 1 | ||
| Altea XL Reference | 2013-2013 | 5 | 1 | TU0 | |
| Toledo Reference | 2012-2015 | 5 | 1 | TU0 | |
| Golf Cabriolet | 2011-2016 | 5 | 1 | PR:0EG,0EM | |
| Golf Plus | 2011-2014 | 5 | 1 | TU0 | |
| Golf | 2011-2013 | 5 | 1 | PR:0EG,0EM | |
| Passat saloon | 2010-2015 | 5 | 1 | TU0 | |
| Eos BlueMotion | 2010-2015 | 5 | 1 | TU0 | |
| jetta | 2010-2014 | 5 | 1 | ||
| Altea XL Reference | 2010-2013 | 5 | 1 | TU0 | |
| Leon Stylance | 2010-2012 | 5 | 1 | TU0 | |
| golf estate | 2009-2013 | 5 | 1 | ||
| Yeti | 2009-2013 | 5 | 1 | TU0 | |
| Golf Plus 1.6 | 2009-2011 | 5 | 1 | TU0 | |
| Scirocco 2.0 | 2008-2014 | 5 | 1 | TU0 | |
| superb comfort | 2008-2013 | 5 | 1 | TU0 | |
| octavia ambiente | 2008-2013 | 5 | 1 | TU0 | |
| Audi A3 Sportback | 2008-2013 | 5 | 1 | TU0 | |
| golf 2.0 | 2008-2011 | 5 | 1 | PR:0EG,0EM | |
| passat estate | 2008-2011 | 5 | 1 | TU0 | |
| jetta | 2008-2011 | 5 | 1 | ||
| EOS 2.0 | 2008-2010 | 5 | 1 | TU0 | |
| GOLF VARIANT 07> | 2007- | 5 | 1 | ||
| GOLF PLUS 08> | 2007- | 5 | 1 | TU0 | |
| Audi A3 Cab. 2.0 TDI | 2007-2013 | 5 | 1 | TU0 | |
| JETTA 06> | 2006- | 5 | 1 | ||
| ALTEA 07> | 2006- | 5 | 1 | TU0 | |
| JETTA 06> | 2005- | 5 | 1 | 0EG | |
| LEON 06> | 2005- | 5 | 1 | TU0 | |
| TOLEDO 05> | 2004- | 5 | 1 | TU0 |
Other markets (3)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Magotan 1.4 | 2011-2012 | 5 | 1 | TT3 | |
| MAGOTAN (PASSAT) 07> | 2007- | 5 | 1 | ||
| Golf/Rabbit 08> | 2007- | 5 | 1 |
