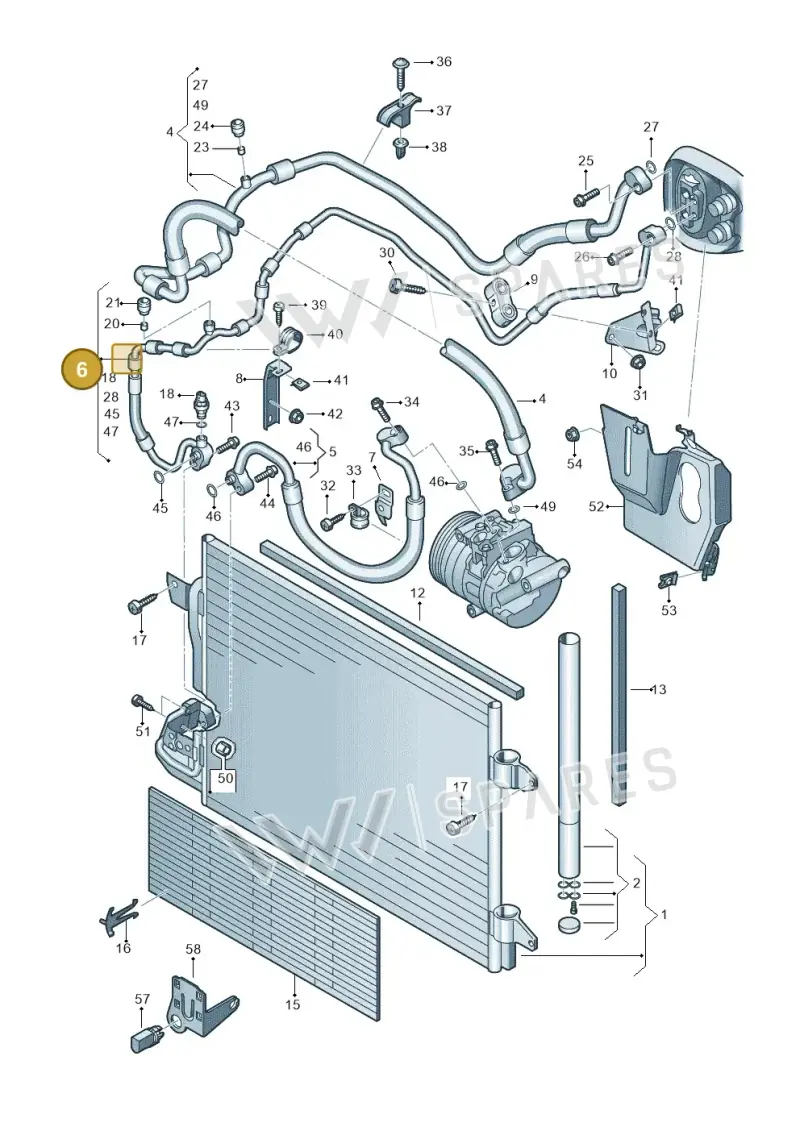

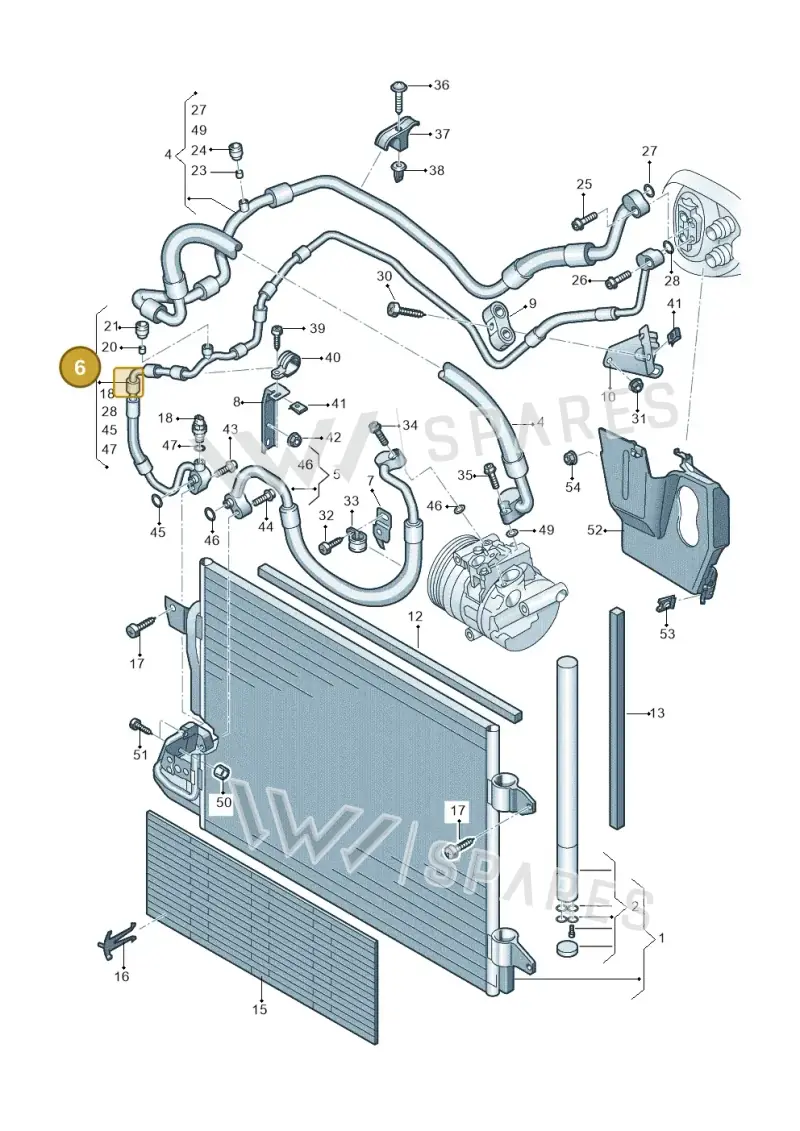

Number 6 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Refrigerant Line, part number 1K0820741BA. This line transports refrigerant between components of the vehicle's air conditioning system. It is located at position 6 in the diagram. The line measures 0.95m in length. Genuine OEM ensures the correct material integrity and precise fittings required for safe and efficient refrigerant circulation.
Catalogue entry: LINE CHGA; (Expansion valve >; use if required: 5K0 959 126.
Use with: 5K0959126. Fitted with: 1K0820741BN LINE, 1K0820741AT HOSE, 1K0820741CN HOSE, 1K0820741CM HOSE, N10414402 SCREW.
Technical details
- Category
- Heating & A/C
- Country of origin
- Poland
- Customs (HS) code
- 84189990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 95 × 46.5 × 29.5 cm
- Shipping weight
- 0.35 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- T53
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
28 vehiclesRefrigerant Line — locate 1K0820741BA Volkswagen Refrigerant Line | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly42
- 1A C Conden 1K0820411AC
- 2Insert 1K0298403A
- 2Part 5K0298403
- 4Hose 1K0820743BT
- 4Hose 1K0820743CC
- 4Hose 1K0820743CG
- 5Hose 1K0820721BD
- 5Hose 1K0820721BE
- 5Hose 1K0820721BF
- 5Hose 1K0820721AK
- 6Hose 1K0820741AT
- 6Hose 1K0820741BD
- 7Bracket 1K0820769F
- 8Bracket 1K0820769D
- 9Clip 1J0820774
- 10Bracket 1K2820769
- 12Seal 321820061D
- 13Seal 321819017
- 15Grille 1K0820746
- 16Clip 3D0867646
- 17Bolt N90817003
- 18Sensor 1K0959126A
- 20Valve 8E0820855
- 21Part 8A0820871AB
- 24Part 357820809B
- 25Screw N10414401
- 27Seal Ring 4E0260749B
- 28Seal Ring 3D0260749C
- 31Ut Hexagon Nut Self-locking Hexagon Nut N90289105
- 32Screw N0139771
- 33Clamp N0206267
- 36Screw N0439391
- 37Clip 1J0820774A
- 38Part 811807577C
- 40Clamp N10236601
- 41Part N90755701
- 42Collar Nut N90175205
- 46Seal Ring 4E0260749A
- 47Seal Ring 8E0260749
- 49Seal Ring 8E0260749C
- 50Bracket 1K0820758
- 51Screw N10553902
Compatible / alternative parts(1)
Vehicle fitment table28
Europe (26)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Altea XL Reference | 2013-2013 | 6 | |||
| Golf Plus | 2011-2014 | 6 | 1 | ||
| Golf | 2011-2013 | 6 | 1 | ||
| Altea XL Reference | 2010-2013 | 6 | |||
| Leon Stylance | 2010-2012 | 6 | |||
| golf estate | 2009-2013 | 6 | 1 | BS | |
| Golf Plus 1.6 | 2009-2011 | 6 | 1 | T53 | |
| Audi A3 Sportback | 2008-2013 | 6 | 1 | ||
| octavia ambiente | 2008-2013 | 6 | |||
| golf 2.0 | 2008-2011 | 6 | 1 | ||
| jetta | 2008-2011 | 6 | 1 | ||
| GOLF VARIANT 07> | 2007- | 6 | 1 | BS | |
| GOLF PLUS 08> | 2007- | 6 | 1 | BS | |
| Audi A3/S3/Sportb./qu. 08 | 2007- | 6 | 1 | BS | |
| Audi A3 Cab. 2.0 TDI | 2007-2013 | 6 | 1 | ||
| EOS-Cabriolet-Coupe | 2006- | 6 | 1 | ||
| JETTA 06> | 2006- | 6 | 1 | BS | |
| ALTEA 07> | 2006- | 6 | 1 | ||
| GOLF PLUS 05> | 2005- | 6 | 1 | ||
| JETTA 06> | 2005- | 6 | 1 | BS | |
| LEON 06> | 2005- | 6 | |||
| Audi A3/S3/quattro | 2005-2007 | 6 | 1 | ||
| TOLEDO 05> | 2004- | 6 | |||
| OCTAVIA/COMBI/4X4 04> | 2004- | 6 | |||
| ALTEA | 2004-2006 | 6 | |||
| GOLF | 2003-2005 | 6 | 1 | AX |
Other markets (2)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Golf/Rabbit 08> | 2007- | 6 | 1 | ||
| Golf/Rabbit | 2005-2007 | 6 | 1 |
