1K0941274A Level Sensor With Poles
- 1K0941291ANot stocked
May 2003 - 1K0941274AThis pageNot stocked
Aug 2005 - 1K0941274BCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

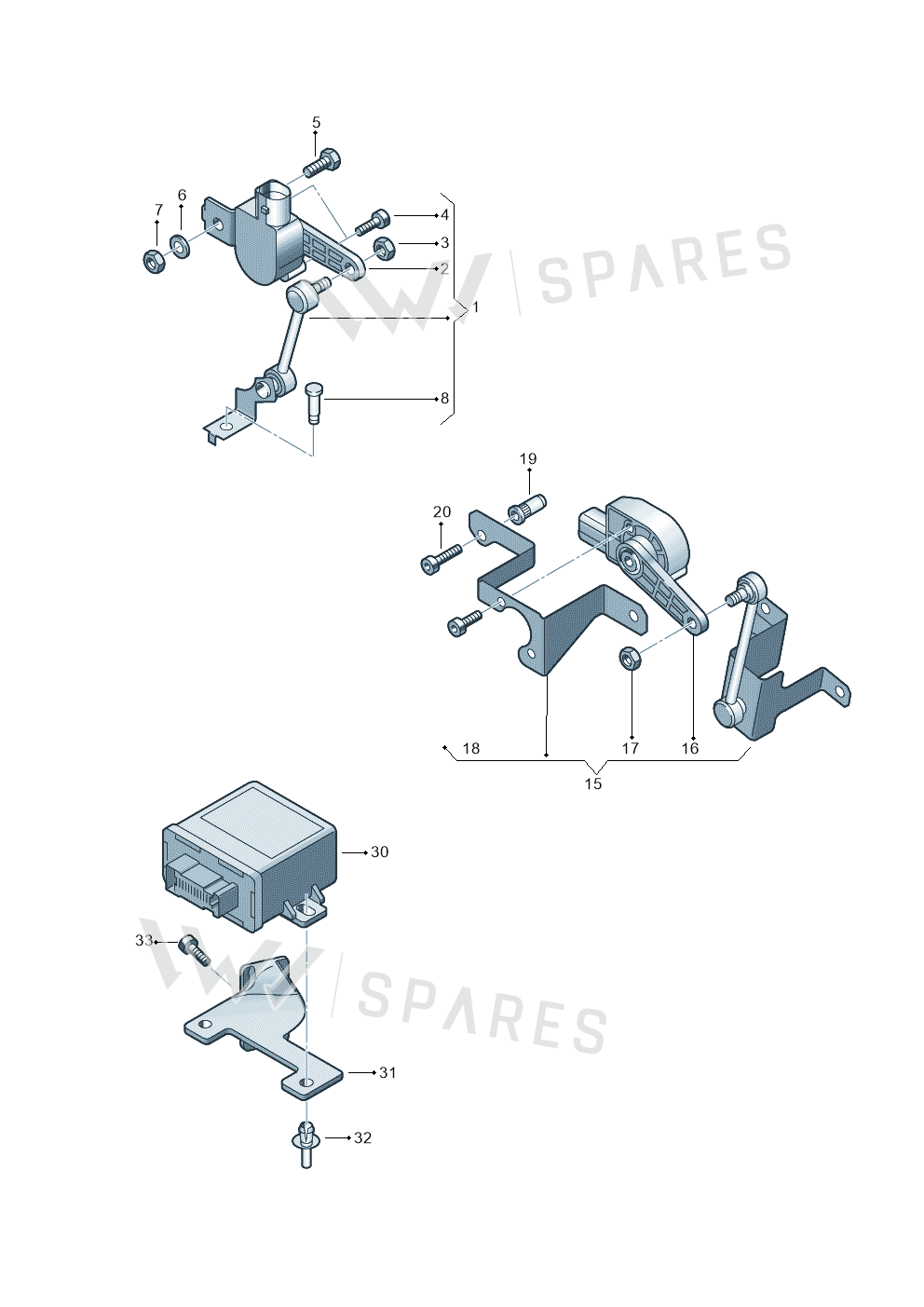

6 vehiclesLevel Sensor With Poles — locate Level Sensor With Poles in the official exploded view and explore the surrounding assembly.
Parts in this assembly15
- 1Sensor 1K0941274B
- 2Sensor 1T0907503
- 3Ut Hexagon Nut Self-locking Hexagon Nut N01118312
- 4Screw N10434301
- 5Bolt N0102873
- 6Washer N0115476
- 7Collar Nut N10205802
- 15Sensor 1K0941273E
- 19Part N10597701
- 20Bolt N10430104
- 30Control Unit 1T0907357
- 31Retaining 1T2971856A
- 31Retaining 1T1971856A
- 32Spring Rivet N0385012
- 33Screw N10170301
Vehicle fitment table6
Europe (5)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| GOLF PLUS 05> | 2005- | 1 | 1 | 8Q3,8Q6 |
| Audi A3/S3/quattro | 2005-2007 | 6 | 1 | 8Q3 |
| TOURAN | 2005-2006 | 1 | 1 | 8Q3 |
| TOURAN | 2003-2005 | 1 | 1 | 8Q3 |
| GOLF | 2003-2005 | 1 | 1 | 8Q3 |
Other markets (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Golf/Rabbit | 2005-2007 | 1 | 1 | 8Q3 |
Diagrams & fitment data powered by oemdiagrams.com
Level Sensor With Poles is fitted on: GOLF PLUS 05> 2005-; Audi A3/S3/quattro 2005-2007; TOURAN 2005-2006; TOURAN 2003-2005; GOLF 2003-2005; Golf/Rabbit 2005-2007.
