1K0963235F Heat Element
- 1K0963235FThis pageNot stocked
Mar 2016 - 1K0963235GNot stocked
Feb 2019 - 1K0963235HCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

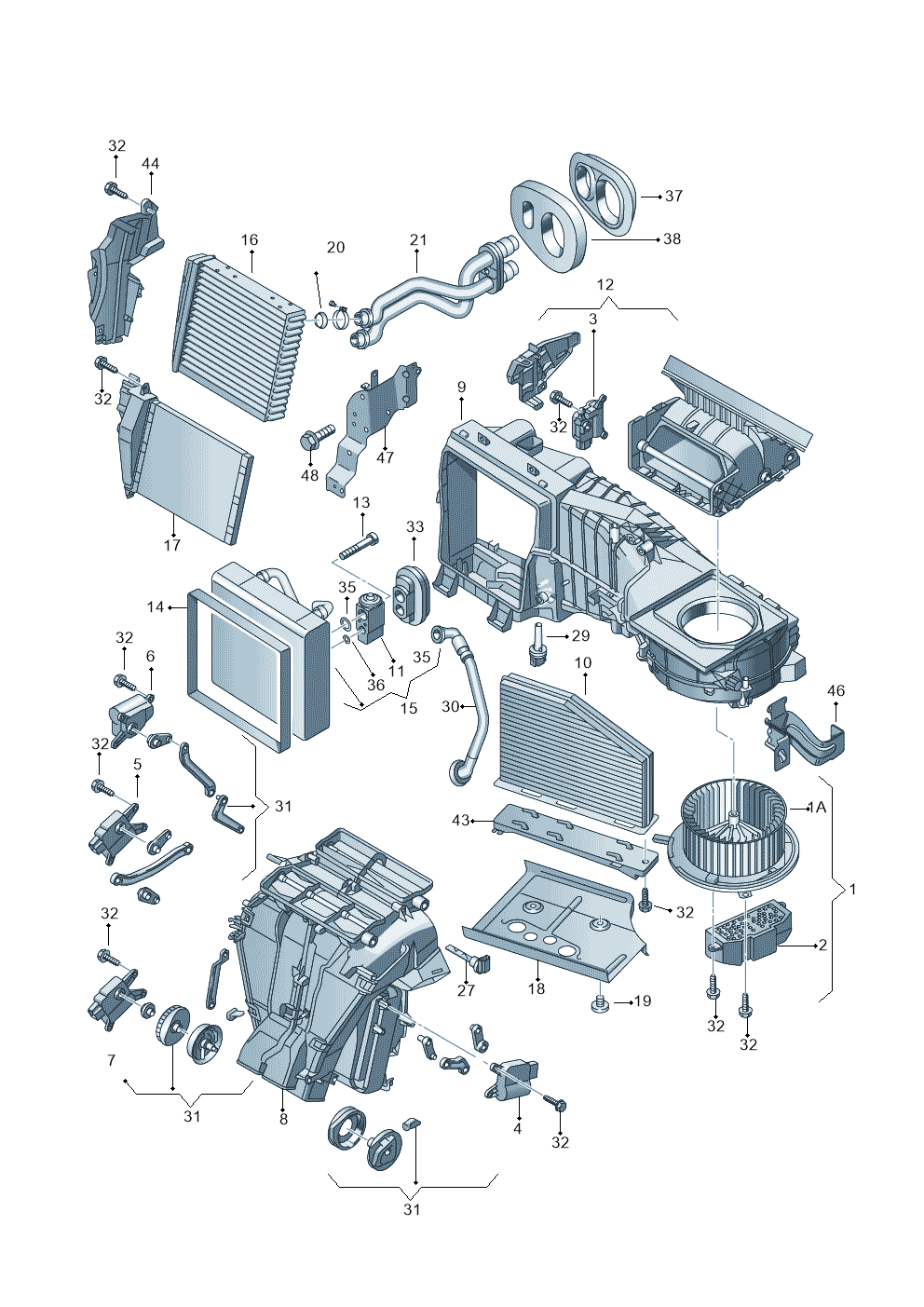

46 vehiclesHeat Element — locate Heat Element in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Blower 1K2820015H
- 1ABlower 3C1820015R
- 2Regulator 3C0907521F
- 3Motor 3C0907511A
- 3Motor 1K0907511
- 4MotorRight3C0907511R
- 4MotorRight1K0907511B
- 5MotorLeft3C1907511F
- 5MotorLeft1K2907511C
- 6Servomotor 3C1907511A
- 6Servomotor 1K2907511E
- 8Part 3C1898353C
- 8Part 3C1898353B
- 8Housing 1K2820353A
- 9Housing 3C1898063A
- 9Housing 1K2820007C
- 10Pollen Fil 1K0819644B
- 10Dust Filt 1K1819653B
- 10Od Filter 1K1819669
- 10Part JZW819653B
- 10Od Filter 1K2819669
- 10Dust Filt 1K2819653B
- 11Expans Val 1K0820679
- 12Int Duct 3C0898304D
- 12Int Duct 1K2820304B
- 13Screw N10476301
- 14Seal 1K0820080
- 15Evaporator 3C1820103B
- 15Evaporator 1K2820103B
- 16Heat Exch 3C0819031
- 16Heat Exch 1K0819031D
- 17Heat Element 1K0963235G
- 18Cover 1K1819593B
- 18Cover 3C2819593
- 19Screw WHT000155
- 20Gask Set 3C0898380
- 20Gask Set 8E0898380
- 21Water Pipe 3C1819857
- 21Water Pipe 1K2819857C
- 27Temperature Sensor 3D0907543A
- 29Temperature Sensor 1K0907543F
- 29Temperature Sensor 1K0907543G
- 30Pipe 1K1260113D
- 30Pipe 1K2260113D
- 31Lever 3C1898001A
- 32Screw N10424102
- 33Seal 1K0820139
- 35Seal Ring 8E0260749D
Vehicle fitment table46
Europe (42)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Yeti | 2013-2017 | 17 | 1 | 7E6 | |
| Golf Cabriolet | 2011-2016 | 17 | 1 | D | |
| Sharan Blue Motion | 2010-2015 | 17 | 1 | ||
| Caddy Maxi Kombi | 2010-2015 | 17 | 1 | D | |
| Passat saloon | 2010-2015 | 17 | 1 | ||
| Eos BlueMotion | 2010-2015 | 17 | 1 | ||
| jetta | 2010-2014 | 17 | 1 | D | |
| Audi TTS Coupe 2.0 | 2010-2014 | 17 | 1 | PR:7E6 | |
| Altea XL Reference | 2010-2013 | 17 | D | ||
| Alhambra Stylance | 2010-2013 | 17 | D | ||
| Leon Stylance | 2010-2012 | 17 | D | ||
| jetta variant | 2009-2014 | 17 | 1 | D | |
| golf estate | 2009-2013 | 17 | 1 | D | |
| Yeti | 2009-2013 | 17 | 1 | D | |
| Golf Plus 1.6 | 2009-2011 | 17 | 1 | PR:7E6 | |
| Jetta Vagon 08> | 2008- | 17 | 1 | 7E6 | |
| Scirocco 2.0 | 2008-2014 | 17 | 1 | ||
| superb comfort | 2008-2013 | 17 | 1 | D | |
| octavia ambiente | 2008-2013 | 17 | 1 | D | |
| Audi A3 Sportback | 2008-2013 | 17 | 1 | D | |
| Passat CC | 2008-2012 | 17 | 1 | ||
| golf 2.0 | 2008-2011 | 17 | 1 | PR:7E6 | |
| passat estate | 2008-2011 | 17 | 1 | 7E6 | |
| jetta | 2008-2011 | 17 | 1 | 7E6 | |
| EOS 2.0 | 2008-2010 | 17 | 1 | PR:7E6 | |
| GOLF VARIANT 07> | 2007- | 17 | 1 | PR:7E6 | |
| GOLF PLUS 08> | 2007- | 17 | 1 | PR:7E6 | |
| Passat/4Motion 08 | 2007- | 17 | 1 | 7E6 | |
| TIGUAN 08> | 2007- | 17 | 1 | PR:7E6 | |
| Audi TT Coupe/Roadster 08> | 2007- | 17 | 1 | ||
| Audi A3/S3/Sportb./qu. 08 | 2007- | 17 | 1 | PR:7E6 | |
| Audi A3 Cab. 2.0 TDI | 2007-2013 | 17 | 1 | D | |
| EOS-Cabriolet-Coupe | 2006- | 17 | 1 | ||
| JETTA 06> | 2006- | 17 | 1 | PR:7E6 | |
| ALTEA 07> | 2006- | 17 | 1 | 7E6 | |
| GOLF PLUS 05> | 2005- | 17 | 1 | ||
| JETTA 06> | 2005- | 17 | |||
| LEON 06> | 2005- | 17 | 1 | PR:7E6 | L0L,L0R,7E6 |
| Passat/4Motion | 2005-2007 | 17 | 1 | PR:7E6 | 7E6,9AP,L0L |
| Audi A3/S3/quattro | 2005-2007 | 17 | 1 | PR:7E6 | 7E6,9AA |
| TOLEDO 05> | 2004- | 17 | 1 | 7E6 | |
| OCTAVIA/COMBI/4X4 04> | 2004- | 17 | 1 |
Other markets (4)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| New Passat | 2011-2015 | 17 | 1 | D | |
| Golf/Rabbit 08> | 2007- | 17 | 1 | PR:7E6 | |
| Jetta "USA"05> | 2005- | 17 | 1 | ||
| Golf/Rabbit | 2005-2007 | 17 | 1 | 1K-7P015 629 |
Diagrams & fitment data powered by oemdiagrams.com
Heat Element is fitted on: Yeti 2013-2017; Golf Cabriolet 2011-2016; Sharan Blue Motion 2010-2015; Caddy Maxi Kombi 2010-2015; Passat saloon 2010-2015; Eos BlueMotion 2010-2015; jetta 2010-2014; Audi TTS Coupe 2.0 2010-2014; Altea XL Reference 2010-2013; Alhambra Stylance 2010-2013; Leon Stylance 2010-2012; jetta variant 2009-2014; golf estate 2009-2013; Yeti 2009-2013; Golf Plus 1.6 2009-2011; Jetta Vagon 08> 2008-; Scirocco 2.0 2008-2014; superb comfort 2008-2013; octavia ambiente 2008-2013; Audi A3 Sportback 2008-2013; Passat CC 2008-2012; golf 2.0 2008-2011; passat estate 2008-2011; jetta 2008-2011; EOS 2.0 2008-2010; GOLF VARIANT 07> 2007-; GOLF PLUS 08> 2007-; Passat/4Motion 08 2007-; TIGUAN 08> 2007-; Audi TT Coupe/Roadster 08> 2007-; Audi A3/S3/Sportb./qu. 08 2007-; Audi A3 Cab. 2.0 TDI 2007-2013; EOS-Cabriolet-Coupe 2006-; JETTA 06> 2006-; ALTEA 07> 2006-; GOLF PLUS 05> 2005-; JETTA 06> 2005-; LEON 06> 2005-; Passat/4Motion 2005-2007; Audi A3/S3/quattro 2005-2007; TOLEDO 05> 2004-; OCTAVIA/COMBI/4X4 04> 2004-; New Passat 2011-2015; Golf/Rabbit 08> 2007-; Jetta "USA"05> 2005-; Golf/Rabbit 2005-2007.
