3C0819031 Heat Exchanger
- 3C0819031This pageNot stocked
Jan 2013 - 3C0819031ACurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

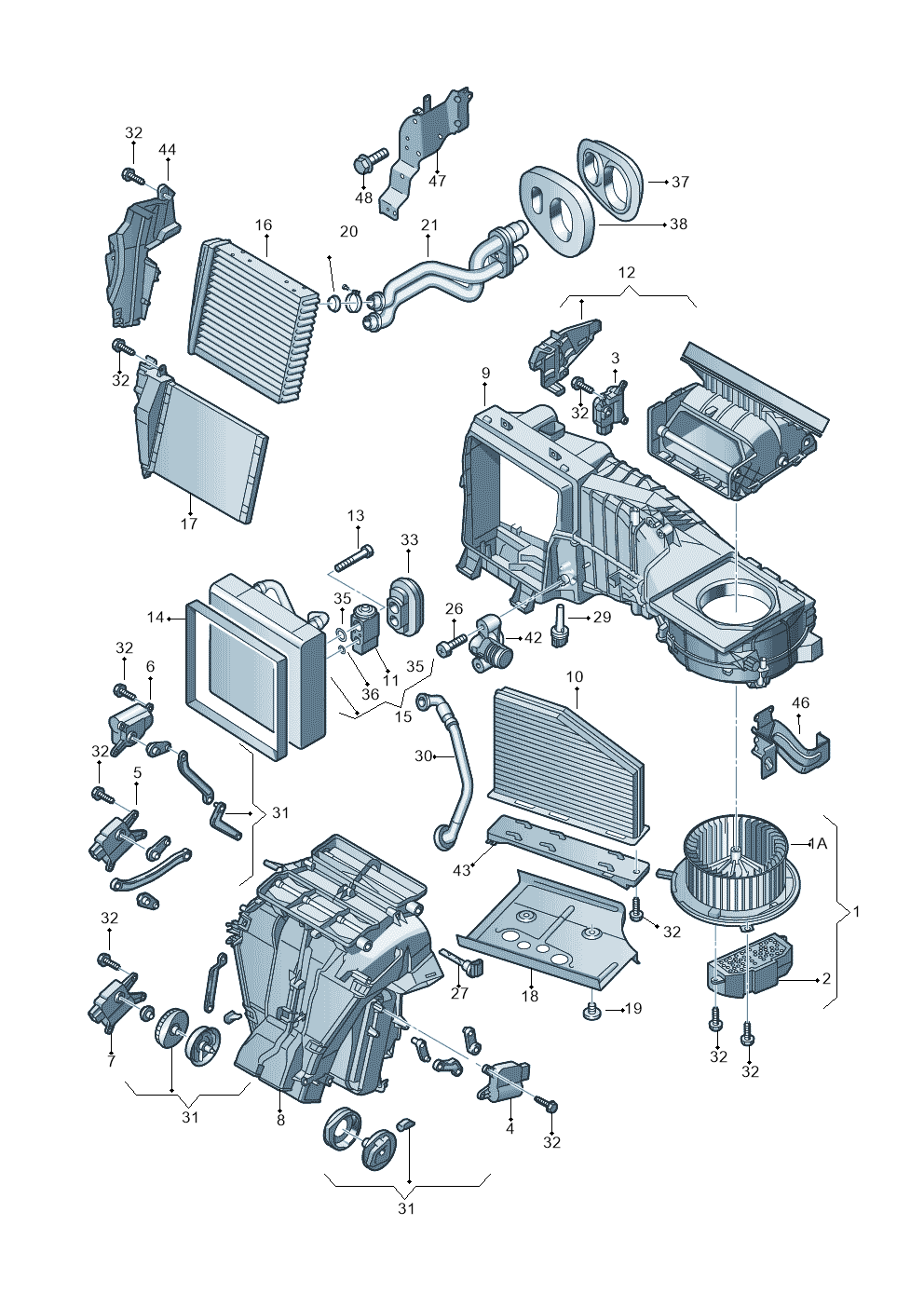

17 vehiclesHeat Exchanger — locate Heat Exchanger in the official exploded view and explore the surrounding assembly.
Parts in this assembly41
- 1Blower 3C1820015P
- 2Regulator 3C0907521F
- 3Motor 3C0907511A
- 4MotorRight3C0907511R
- 5MotorLeft3C1907511F
- 6Servomotor 3C1907511G
- 7Motor 3C0907511Q
- 8Part 3C1898353L
- 8Part 3C1898353K
- 9Housing 3C1898063A
- 10Pollen Fil 1K0819644B
- 10Dust Filt 1K1819653B
- 10Od Filter 1K1819669
- 10Part JZW819653B
- 11Expans Val 1K0820679
- 12Int Duct 3C0898304D
- 13Screw N10476301
- 14Seal 1K0820080
- 15Evaporator 3C1820103B
- 17Heat Element 1K0963235F
- 18Cover 5K1819593
- 19Screw WHT000155
- 20Gask Set 3C0898380
- 21Part 3C1819857
- 26Screw N10424102
- 27Temperature Sensor 3D0907543A
- 29Temperature Sensor 1K0907543F
- 30Pipe 1K1260113D
- 31Lever 3C1898001F
- 33Seal 1K0820139
- 35Seal Ring 8E0260749D
- 36Seal Ring 8E0260749
- 37Grommet 3C0820751
- 38Seal 3C1820061
- 42Adapter 3C1820215
- 43Cover 3C0819422
- 44Cover 3C1819349C
- 44Cover 3C1819349B
- 46Bracket 1K1819453
- 47Bracket 1K1819473H
- 48Bolt N90532901
Vehicle fitment table17
Europe (15)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| superb | 2013-2015 | 16 | 1 | |
| Yeti | 2009-2013 | 16 | 1 | |
| Golf Plus 1.6 | 2009-2011 | 16 | 1 | |
| superb comfort | 2008-2013 | 16 | 1 | |
| Passat CC | 2008-2012 | 16 | 1 | |
| golf 2.0 | 2008-2011 | 16 | 1 | |
| passat estate | 2008-2011 | 16 | 1 | |
| EOS 2.0 | 2008-2010 | 16 | 1 | L0L |
| GOLF PLUS 08> | 2007- | 16 | 1 | |
| Passat/4Motion 08 | 2007- | 16 | 1 | |
| TIGUAN 08> | 2007- | 16 | 1 | |
| EOS-Cabriolet-Coupe | 2006- | 16 | 1 | |
| GOLF PLUS 05> | 2005- | 16 | 1 | |
| Passat/4Motion | 2005-2007 | 16 | 1 | |
| GOLF | 2003-2005 | 16 | 1 | L0L |
Other markets (2)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Golf/Rabbit 08> | 2007- | 16 | 1 | L0L |
| Golf/Rabbit | 2005-2007 | 16 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Heat Exchanger is fitted on: superb 2013-2015; Yeti 2009-2013; Golf Plus 1.6 2009-2011; superb comfort 2008-2013; Passat CC 2008-2012; golf 2.0 2008-2011; passat estate 2008-2011; EOS 2.0 2008-2010; GOLF PLUS 08> 2007-; Passat/4Motion 08 2007-; TIGUAN 08> 2007-; EOS-Cabriolet-Coupe 2006-; GOLF PLUS 05> 2005-; Passat/4Motion 2005-2007; GOLF 2003-2005; Golf/Rabbit 08> 2007-; Golf/Rabbit 2005-2007.
