1K2820103A Evaporator With Expansion Valve
- 1K2820103Not stocked
Aug 2006 - 1K2820103AThis pageNot stocked
Jul 2007 - 1K2820103BNot stocked
Jun 2011 - 1K2820103ECurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

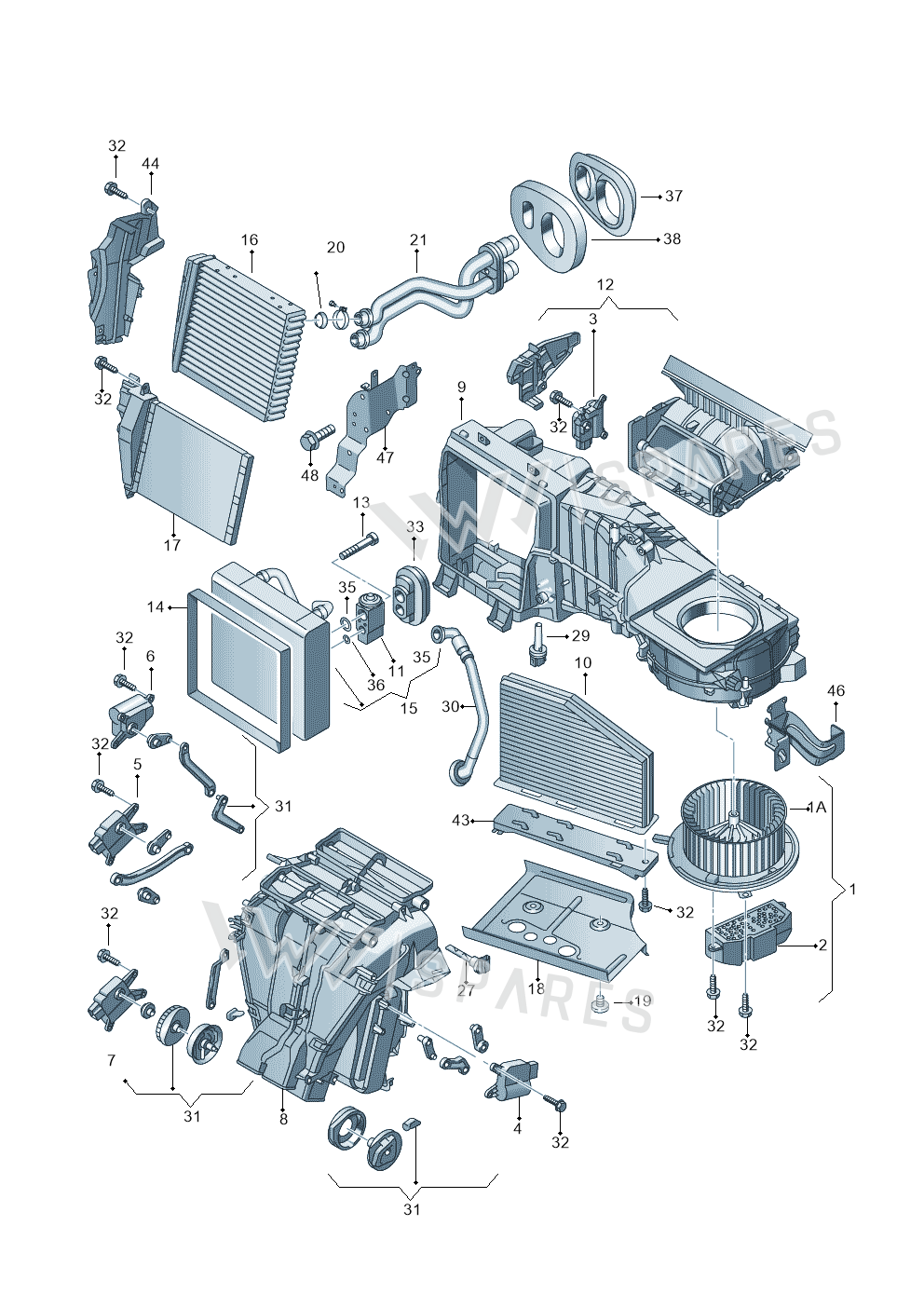

13 vehiclesEvaporator With Expansion Valve — locate Evaporator With Expansion Valve in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Blower 1K2820015H
- 1Blower 1K1820015F
- 2Regulator 3C0907521G
- 3Motor 1K2907511H
- 3Motor 1K1907511G
- 4MotorRight1K0907511B
- 5MotorLeft1K2907511C
- 5MotorLeft1K1907511C
- 6Servomotor 1K2907511E
- 6Servomotor 1K1907511E
- 7Motor 1K0907511
- 8Part 1K1820353
- 8Part 1K2820353
- 8Housing 1K2820353B
- 8Housing 1K1820353B
- 9Housing 1K2820007B
- 9Housing 1K1820007B
- 10Part 1K2819653B
- 10Part 1K1819653B
- 11Expans Val 1K0820679
- 12Int Duct 1K2820304
- 12Int Duct 1K1820304
- 13Screw N10476301
- 14Seal 1K0820080
- 15Evaporator 1K1820103E
- 15Evaporator 1K2820103B
- 15Evaporator 1K2820103E
- 15Evaporator 1K1820103B
- 16Heat Exch 1K0819031B
- 17Heat Element 1K0963235F
- 18Cover 8P2819593
- 18Cover 8P1819593
- 19Screw WHT000155
- 20Gask Set 8E0898380
- 21Part 1K2819857D
- 21Part 1K1819857C
- 27Temperature Sensor 4B0820539
- 29Temperature Sensor 1K0907543G
- 30Pipe 8J2260113
- 30Pipe 1T2260113C
- 31Lever 1K0898002
- 31Lever 1K1898001
- 31Lever 1K2898001
- 32Screw N10424102
- 34Seal 1K0820139
- 35Seal Ring 8E0260749D
- 36Seal Ring 8E0260749
- 37Grommet 1K0820751C
Vehicle fitment table13
Europe (12)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Audi TT Coupe/Roadster 08> | 2007- | 15 | 1 | L0R,9AK |
| EOS-Cabriolet-Coupe | 2006- | 15 | 1 | L0R,9AK,7E0,7E6 |
| TOURAN | 2006- | 15 | 1 | L0R,9AP,7E0,7E6 |
| ALTEA 07> | 2006- | 15 | ||
| GOLF PLUS 05> | 2005- | 15 | 1 | L0R,9AP,7E0,7E6,1W0,1W2 |
| LEON 06> | 2005- | 15 | ||
| Passat/4Motion | 2005-2007 | 15 | 1 | L0R,9AP,7E0,7E6,1W0,1W2 |
| Audi A3/S3/quattro | 2005-2007 | 15 | 1 | L0R,7E0,7E6,9AP |
| TOURAN | 2005-2006 | 15 | 1 | L0R,9AP,7E0,7E6 |
| CADDY | 2004- | 15 | 1 | L0R,9AP |
| TOLEDO 05> | 2004- | 15 | 1 | L0R |
| TOURAN | 2003-2005 | 15 | 1 | L0R,9AP,7E0,7E6 |
Other markets (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Golf/Rabbit | 2005-2007 | 15 | 1 | L0R,9AP,7E0,7E6 |
Diagrams & fitment data powered by oemdiagrams.com
Evaporator With Expansion Valve is fitted on: Audi TT Coupe/Roadster 08> 2007-; EOS-Cabriolet-Coupe 2006-; TOURAN 2006-; ALTEA 07> 2006-; GOLF PLUS 05> 2005-; LEON 06> 2005-; Passat/4Motion 2005-2007; Audi A3/S3/quattro 2005-2007; TOURAN 2005-2006; CADDY 2004-; TOLEDO 05> 2004-; TOURAN 2003-2005; Golf/Rabbit 2005-2007.
