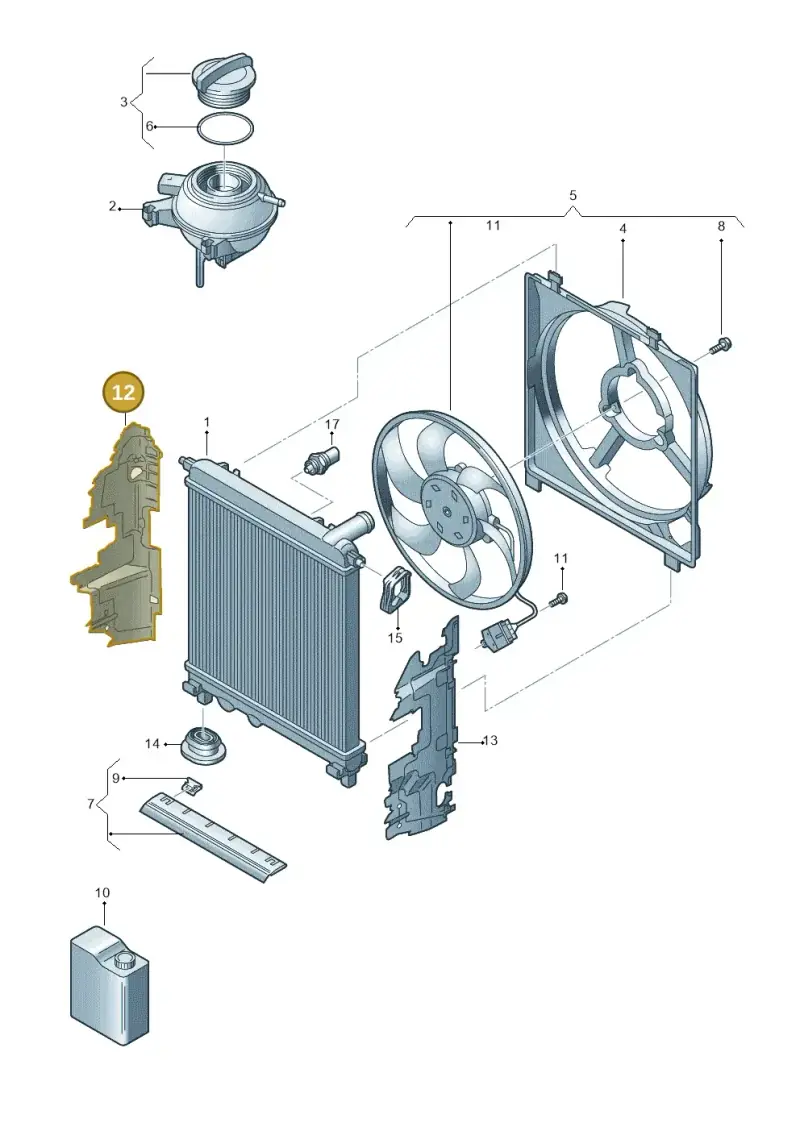

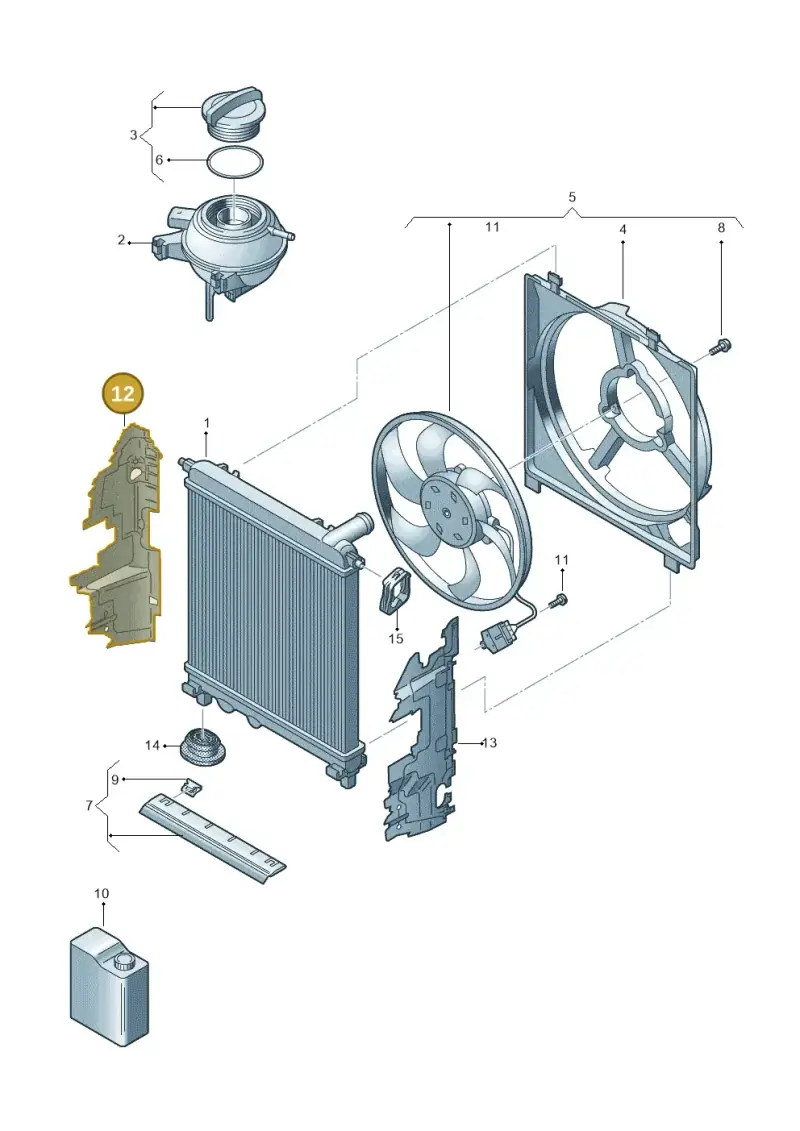

Number 12 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Air Guide, part number 1S0121284F. This air guide is designed to direct airflow within the engine cooling system, ensuring efficient heat dissipation from the radiator. It is typically located on the front of the radiator assembly. Constructed from durable plastic, this component is essential for maintaining optimal engine operating temperatures.
Catalogue entry: AIR GUIDE.
Technical details
- Category
- Engine Cooling
- Customs (HS) code
- 87082990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 52.3 × 20.5 × 11.3 cm
- Shipping weight
- 0.18 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- only with2JL
- only with2JQ
- only with2JX
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment

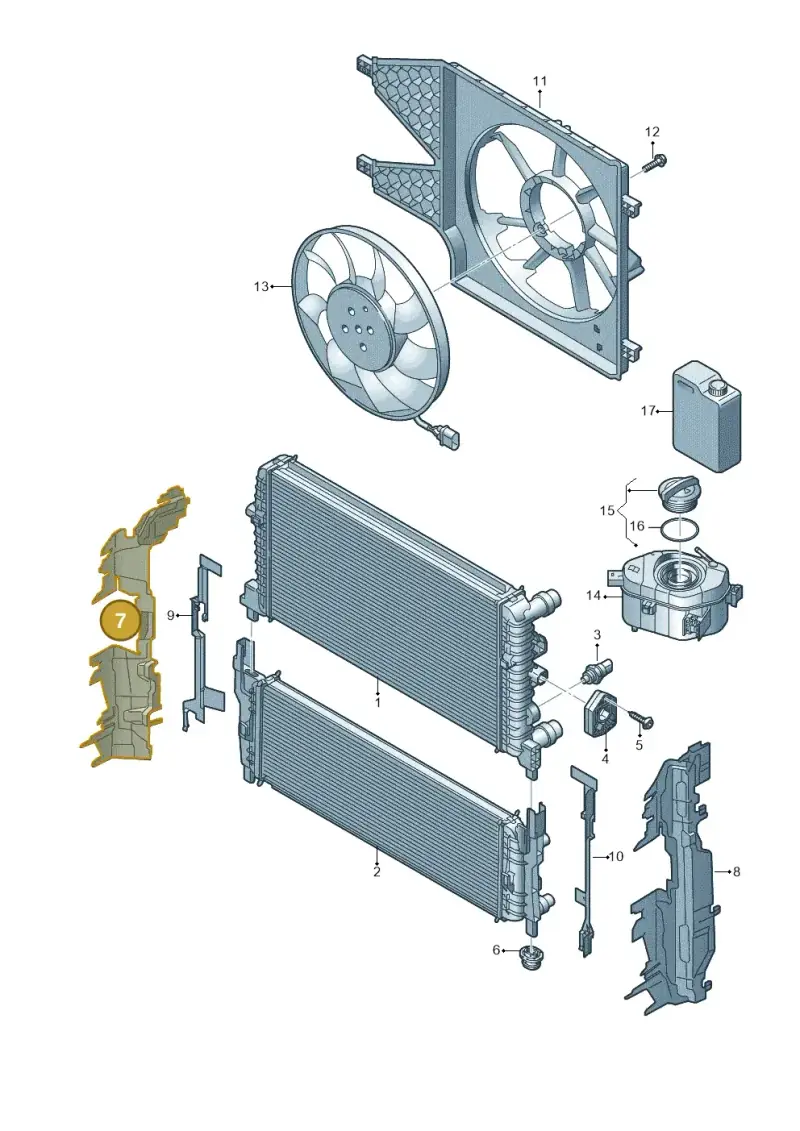

1 vehicleAir Guide — locate 1S0121284F Volkswagen Air Guide | Engine Cooling in the official exploded view and explore the surrounding assembly.
Parts in this assembly27
- 1Radiator 1S0121253AL
- 2Tank 1S0121407G
- 2Tank 1S0121407J
- 3Cover 2Q0121321A
- 4Fan Ring 1SB121205
- 6Seal Ring 1H0121687A
- 7Air Guide 1S0121281
- 8Bolt N10762601
- 9Clip WHT006971
- 10CoolantLeftG013774M2
- 10CoolantLeftG013A8JM8
- 10CoolantLeftG013A8JM9
- 10CoolantRightG12E050A2
- 10CoolantRightG12E050A8
- 10CoolantRightG12E050A9
- 10CoolantRightG12E100A9
- 10CoolantLeftG013A8JM1
- 10CoolantRightG12E100A8
- 11Bolt N10602101
- 12Air Guide 1S0121284E
- 12Air Guide 1S0121284D
- 13Air Guide 1S0121283E
- 13Air Guide 1S0121283F
- 13Air Guide 1S0121283D
- 14Bush 1K0121367F
- 15Bracket 1S0121367C
- 17Switch 1J0959481
Compatible / alternative parts(6)
Vehicle fitment table1
Europe (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| up! 1.0 BlueMotion | 2016-2023 | 12, 7 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
1S0121284F Volkswagen Air Guide | Engine Cooling is fitted on: up! 1.0 BlueMotion 2016-2023.
