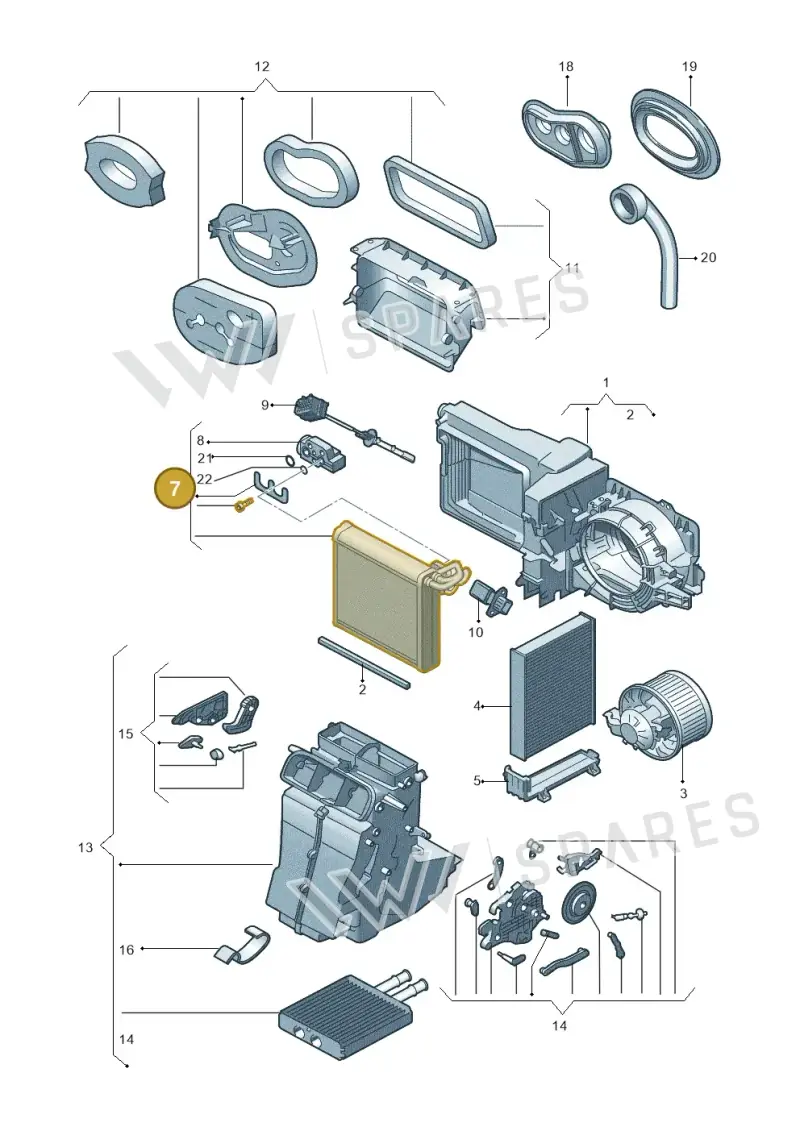

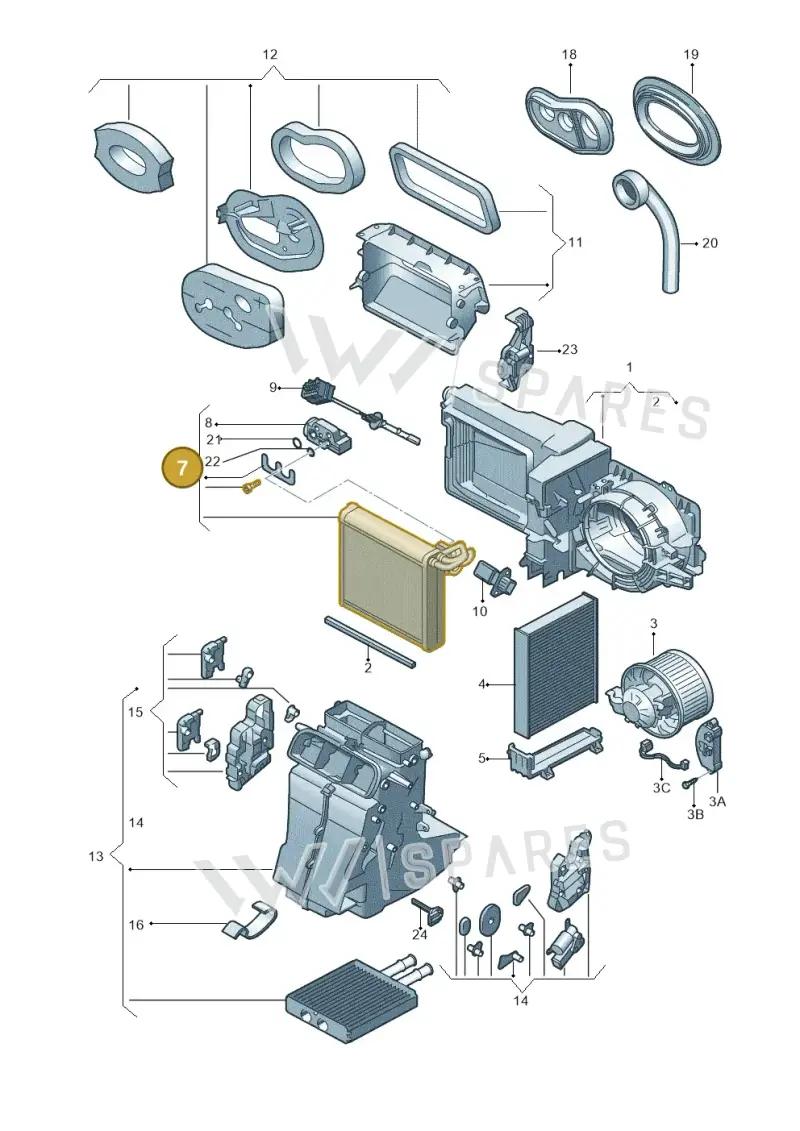

Number 7 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Evaporator, part number 1S2816103. This evaporator cools the air inside the cabin by absorbing heat from the refrigerant. It is a key component of the heating and air conditioning system. Genuine OEM parts are manufactured to precise specifications for optimal performance and durability.
Catalogue entry: EVAPORATOR rhd.
Fitted with: 1S0820080 SEAL, 1S1816103 EVAPORATOR.
Technical details
- Category
- Heating & A/C
- Country of origin
- Germany
- Customs (HS) code
- 84189910
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 30 × 25 × 19 cm
- Shipping weight
- 1.34 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- L0R
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
6 vehiclesEvaporator With Expansion Valve — locate 1S2816103 Volkswagen Evaporator | HVAC in the official exploded view and explore the surrounding assembly.
RThis part is the Right side
Parts in this assembly30
- 1Housing 12E820007C
- 1Housing 12E820007B
- 2Seal 1S0820080
- 3Blower 12E820015A
- 3Blower 12E820015
- 3ARegulator 5Q0907521E
- 3BScrew N10424102
- 3CWiring Set 12E971579
- 4Od Filter 1S0819669
- 4Pollen Fil 1S0820367
- 5Cover 1S0819422
- 7EvaporatorLeft1S1816103
- 8Expans Val 1S0816679
- 9Temperature Sensor 12E907543
- 11Int Duct 12E820303
- 12Gask SetRight1S2898003B
- 12Gask SetLeft1S1898003B
- 13Part 12E820351
- 14Adjuster 12E898141
- 15Adjuster 12E898141A
- 16Clip 1S0820245
- 18GrommetRight1S2820609A
- 18GrommetLeft1S1820609A
- 19Grommet 6Q0820751A
- 20Hose 1S0820653A
- 21Seal Ring 7H0820749
- 22Seal Ring 8E0260749B
- 23Motor 12E898511A
- 23Motor 12E898511
- 24Temperature Sensor 1KD907543A
Vehicle fitment table6
Europe (6)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Mii electric | 2020-2021 | 7 | 1 | L0R |
| Citigo | 2019-2021 | 7 | 1 | L0R |
| up! 1.0 BlueMotion | 2016-2023 | 7 | 1 | L0R |
| e-up! | 2016-2023 | 7 | 1 | L0R |
| Mii reference | 2011-2019 | 7 | 1 | L0R |
| Citigo | 2011-2019 | 7 | 1 | L0R |
Diagrams & fitment data powered by oemdiagrams.com
1S2816103 Volkswagen Evaporator | HVAC is fitted on: Mii electric 2020-2021; Citigo 2019-2021; up! 1.0 BlueMotion 2016-2023; e-up! 2016-2023; Mii reference 2011-2019; Citigo 2011-2019.
