331698261C Repair Kit For Wheel Brake Cylinder
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

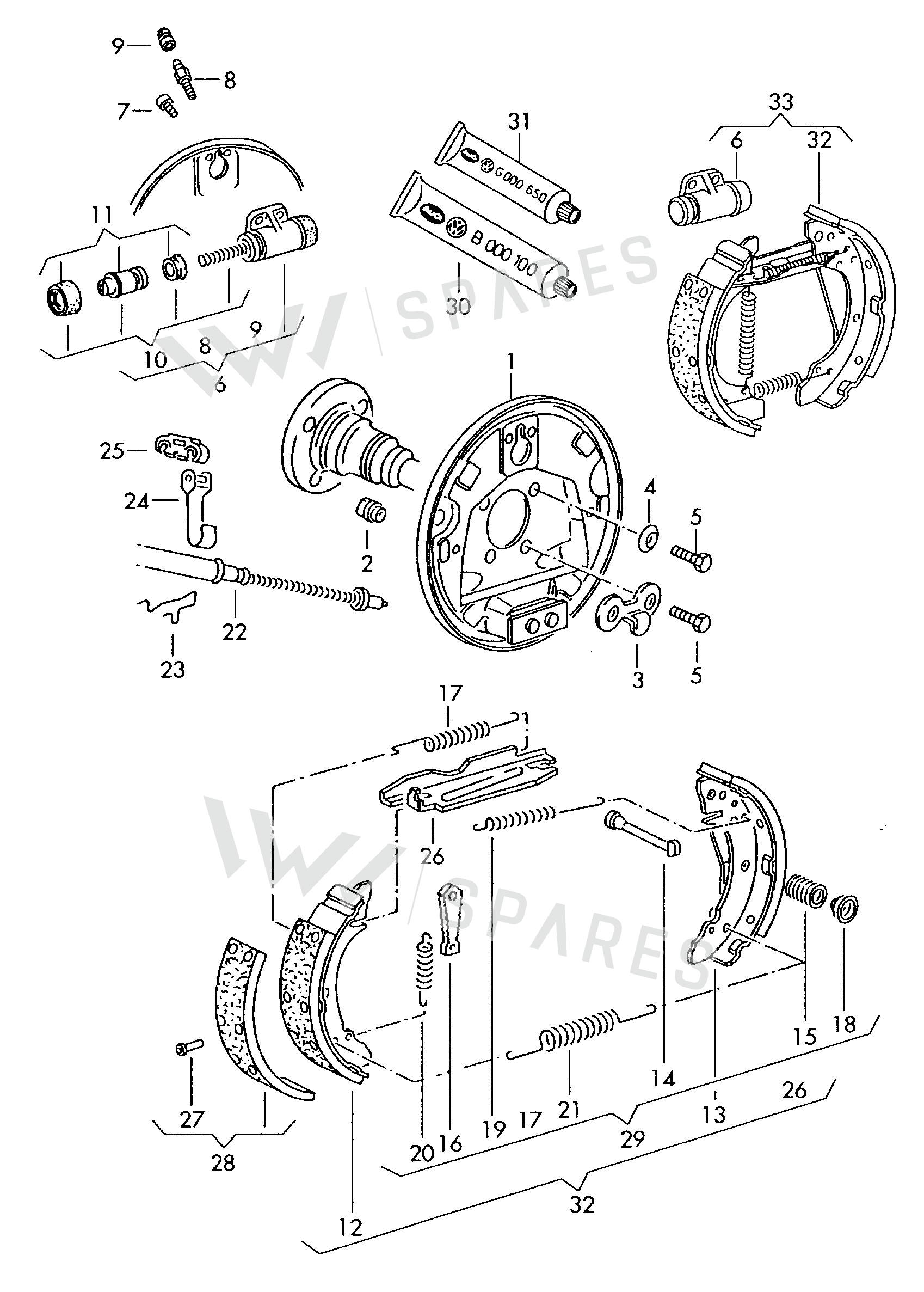

20 vehiclesRepair Kit For Wheel Brake Cylinder — locate Repair Kit For Wheel Brake Cylinder in the official exploded view and explore the surrounding assembly.
Parts in this assembly33
- 1Back PlateRight6N0609426A
- 1Back PlateLeft6N0609425A
- 2Bungs 171609163
- 3Guide 321609763
- 4Spring 321501119A
- 6Brake Cyli 6N0611053
- 7Screw N0147506
- 8Valve 113611475
- 9Part 211611483
- 10Repair Kit 171698241C
- 10Repair Kit 331698261D
- 10Repair Kit 171698241D
- 12Brake ShoeRight867609526
- 12Brake ShoeLeft867609525
- 13PartRight867609528
- 13PartLeft867609527
- 14Part WHT001953
- 15Press Spring 171609583A
- 16Wedge 171609705
- 18Springseat 6Q0609709
- 20Spring 171609715
- 21Spring 171609717
- 23Bracket 191609639B
- 24Spacer 191609657
- 25Bracket 811611797
- 26Push BarRight171609820B
- 28Brk Lining 191698051
- 29Fixing Set 171698545
- 30Grease G052150A2
- 31Paste G000650
- 32Brake Shoe 867698520X
- 33Part 867698511X
- 33Brake Shoe 867698511AX
Vehicle fitment table20
Europe (15)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Jetta 89 | 1988-1989 | 10 | 2 | |
| AUDI COUPE/2 88 | 1987-1987 | 10 | 2 | KX,JL |
| Jetta 86 | 1985-1986 | 4 | 2 | |
| Jetta 85 | 1984-1985 | 4 | 2 | |
| Scirocco | 1983-1989 | 4 | 2 | |
| POLO/COUPE/DERBY | 1981-1990 | 10 | ||
| Jetta | 1981-1984 | 4 | 2 | |
| Scirocco | 1981-1983 | 4 | 2 | |
| Jetta 81 | 1980-1981 | 4 | 1 | |
| Dasher | 1977-1980 | 5 | ||
| Scirocco | 1976-1978 | 4 | 1 | |
| POLO,DERBY,AUDI 50 | 1974-1981 | 2 | ||
| POLO,DERBY,AUDI 50 | 1974-1981 | 2 | ||
| Scirocco | 1974-1976 | 4 | 1 | GOLF GTI |
| Dasher | 1973-1977 | 5 |
Other markets (5)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Quantum | 1986-1988 | 5 | ||
| Quantum 85 | 1984-1985 | 5 | ||
| Rabbit/Jetta | 1978-1980 | 4 | ||
| Rabbit | 1976-1978 | 4 | 1 | |
| Rabbit | 1974-1976 | 4 | 1 | GOLF GTI |
Diagrams & fitment data powered by oemdiagrams.com
Repair Kit For Wheel Brake Cylinder is fitted on: Jetta 89 1988-1989; AUDI COUPE/2 88 1987-1987; Jetta 86 1985-1986; Jetta 85 1984-1985; Scirocco 1983-1989; POLO/COUPE/DERBY 1981-1990; Jetta 1981-1984; Scirocco 1981-1983; Jetta 81 1980-1981; Dasher 1977-1980; Scirocco 1976-1978; POLO,DERBY,AUDI 50 1974-1981; Scirocco 1974-1976; Dasher 1973-1977; Quantum 1986-1988; Quantum 85 1984-1985; Rabbit/Jetta 1978-1980; Rabbit 1976-1978; Rabbit 1974-1976.
