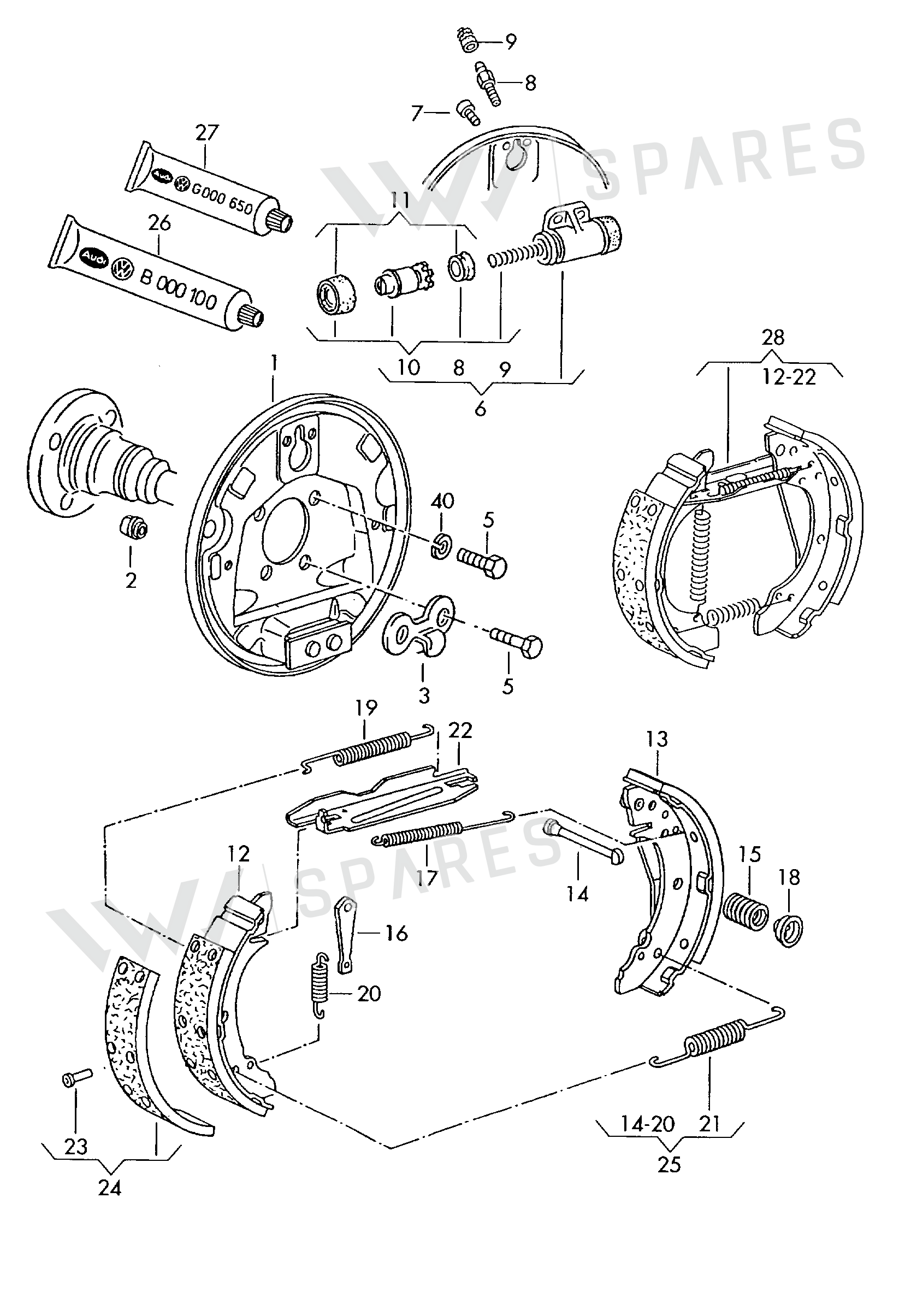

Brake Shoe With Lining And Brake Lever exploded parts diagram — Polo/Polo Coupe · 1990-1994, position 13
Exploded view
Polo/Polo Coupe · 1990-1994 · position 13Full diagram ↓
867609527

867609527 Brake Shoe With Lining And Brake Lever

£12.39
£10.24 excl. VAT
Supersession roadoldest to newest
  1. 867609527This pageNot stocked
    Aug 2003
  2. 867698525XNot stocked
    Aug 2004
  3. 867698520XDiscontinued
    Jun 2016
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

28 vehicles

Brake Shoe With Lining And Brake Lever — locate Brake Shoe With Lining And Brake Lever in the official exploded view and explore the surrounding assembly.

LThis part is the Left side

Parts in this assembly32
Vehicle fitment table28

Europe (21)

VehicleYearsPos.Qty
Polo/Polo Coupe1990-1994131
Jetta1989-199113
Jetta 891988-198913
GOLF,JETTA (MEX)1987-199221
Jetta 861985-19864
Jetta 851984-19854
Scirocco1983-19894
POLO/COUPE/DERBY1981-199013
Audi Coupe1981-1987131
Jetta1981-19844
Audi 40001981-19844
Scirocco1981-19834
Scirocco1981-19814
PASSAT,-VARIANT/2 811980-198141
Jetta 811980-19814
Scirocco1980-19814
Audi 40001979-198141
Scirocco1978-19803
Dasher1977-198041
POLO,DERBY,AUDI 501974-19814
POLO,DERBY,AUDI 501974-19814

Other markets (7)

VehicleYearsPos.Qty
Golf/Jetta "USA","MEX"89>921988-199213
SANTANA/VARIANT "CN"86>1985-41
Quantum1981-19844
Rabbit Conv.1981-19834
Rabbit Conv. 811980-19814
Rabbit/Jetta1978-19803
Rabbit Conv.1978-19803

Diagrams & fitment data powered by oemdiagrams.com

Brake Shoe With Lining And Brake Lever is fitted on: Polo/Polo Coupe 1990-1994; Jetta 1989-1991; Jetta 89 1988-1989; GOLF,JETTA (MEX) 1987-1992; Jetta 86 1985-1986; Jetta 85 1984-1985; Scirocco 1983-1989; POLO/COUPE/DERBY 1981-1990; Audi Coupe 1981-1987; Jetta 1981-1984; Audi 4000 1981-1984; Scirocco 1981-1983; Scirocco 1981-1981; PASSAT,-VARIANT/2 81 1980-1981; Jetta 81 1980-1981; Scirocco 1980-1981; Audi 4000 1979-1981; Scirocco 1978-1980; Dasher 1977-1980; POLO,DERBY,AUDI 50 1974-1981; Golf/Jetta "USA","MEX"89>92 1988-1992; SANTANA/VARIANT "CN"86> 1985-; Quantum 1981-1984; Rabbit Conv. 1981-1983; Rabbit Conv. 81 1980-1981; Rabbit/Jetta 1978-1980; Rabbit Conv. 1978-1980.
