3C0133986D Fuel Line
- 3C0133986DThis pageNot stocked
Sep 2013 - 561133986ASuperseded
Sep 2013 - 561133986BNot stocked
Feb 2016 - 561133986CCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 3–8 business days before dispatch.
Handling time for Skoda: 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

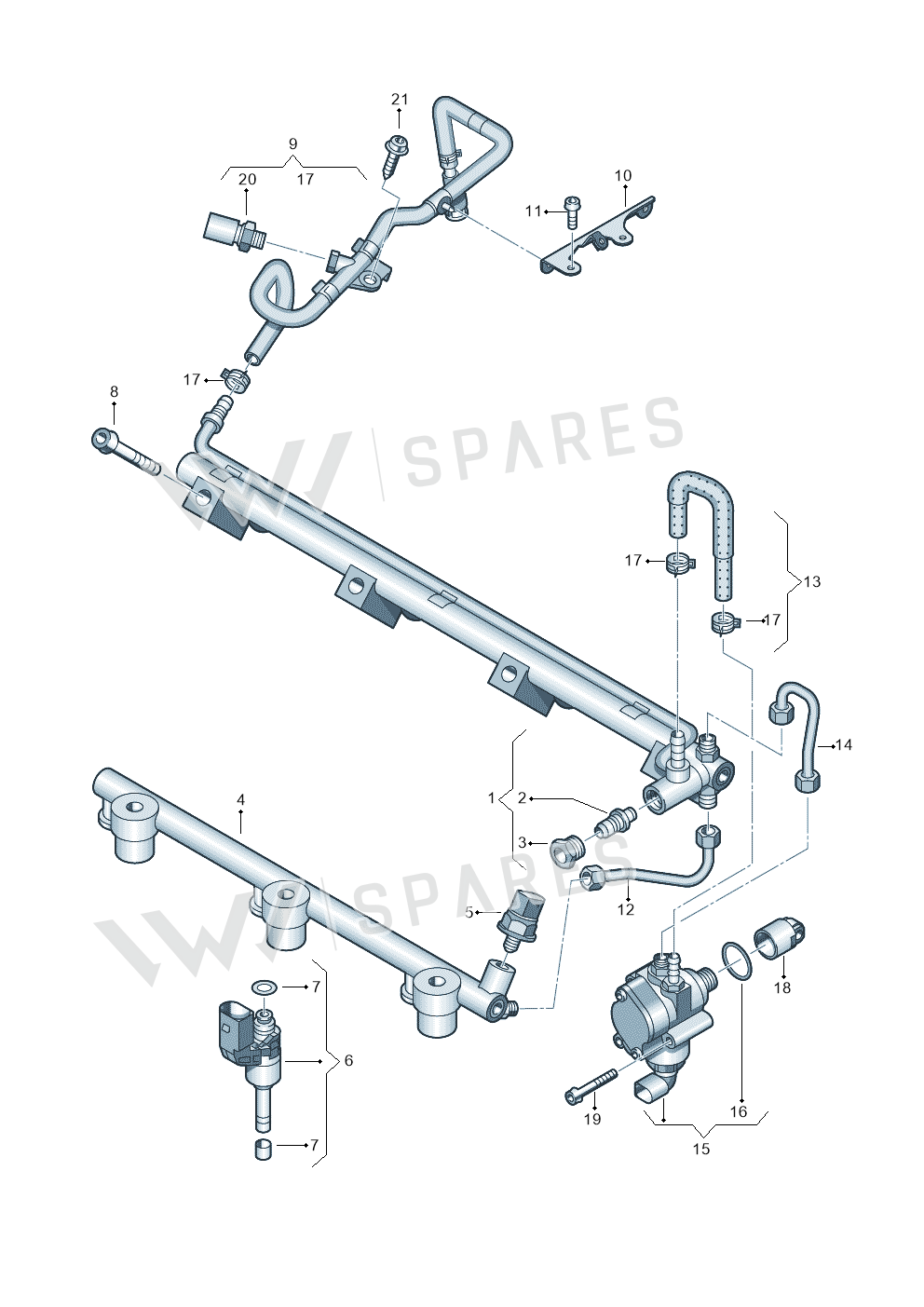

6 vehiclesFuel Line — locate Fuel Line in the official exploded view and explore the surrounding assembly.
Parts in this assembly24
- 1Rail 03H133316H
- 2Valve 03C103363B
- 3Screw WHT000435A
- 4Rail 03H133317B
- 5Sensor 06H906051A
- 6Valve 03H906036A
- 6Valve 03H906036
- 7Part 03H198149A
- 7Part 03H198149
- 8Screw N10544903
- 10Bracket 03H133340D
- 11Bolt N91084402
- 12Fuel Line 03H133321A
- 13Hose 03H133322E
- 14Fuel Line 03H133321
- 15Pump 03H127025E
- 15Pump 03H127025D
- 16Seal Ring WHT005184
- 17Clamp N90986501
- 17Clamp N91208604
- 18Tappets 03H127307A
- 19Bolt N10622101
- 20Sensor 03C906051A
- 21Bolt N91033802
Vehicle fitment table6
Europe (5)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| superb comfort | 2008-2013 | 9 | 1 |
| Passat CC | 2008-2012 | 9 | 1 |
| passat estate | 2008-2011 | 9 | 1 |
| EOS 2.0 | 2008-2010 | 9 | 1 |
| Passat/4Motion 08 | 2007- | 9 | 1 |
Other markets (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| New Passat | 2011-2015 | 9 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Fuel Line is fitted on: superb comfort 2008-2013; Passat CC 2008-2012; passat estate 2008-2011; EOS 2.0 2008-2010; Passat/4Motion 08 2007-; New Passat 2011-2015.
