561133986B Fuel Line
- 3C0133986DNot stocked
Sep 2013 - 561133986ASuperseded
Sep 2013 - 561133986BThis pageNot stocked
Feb 2016 - 561133986CCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

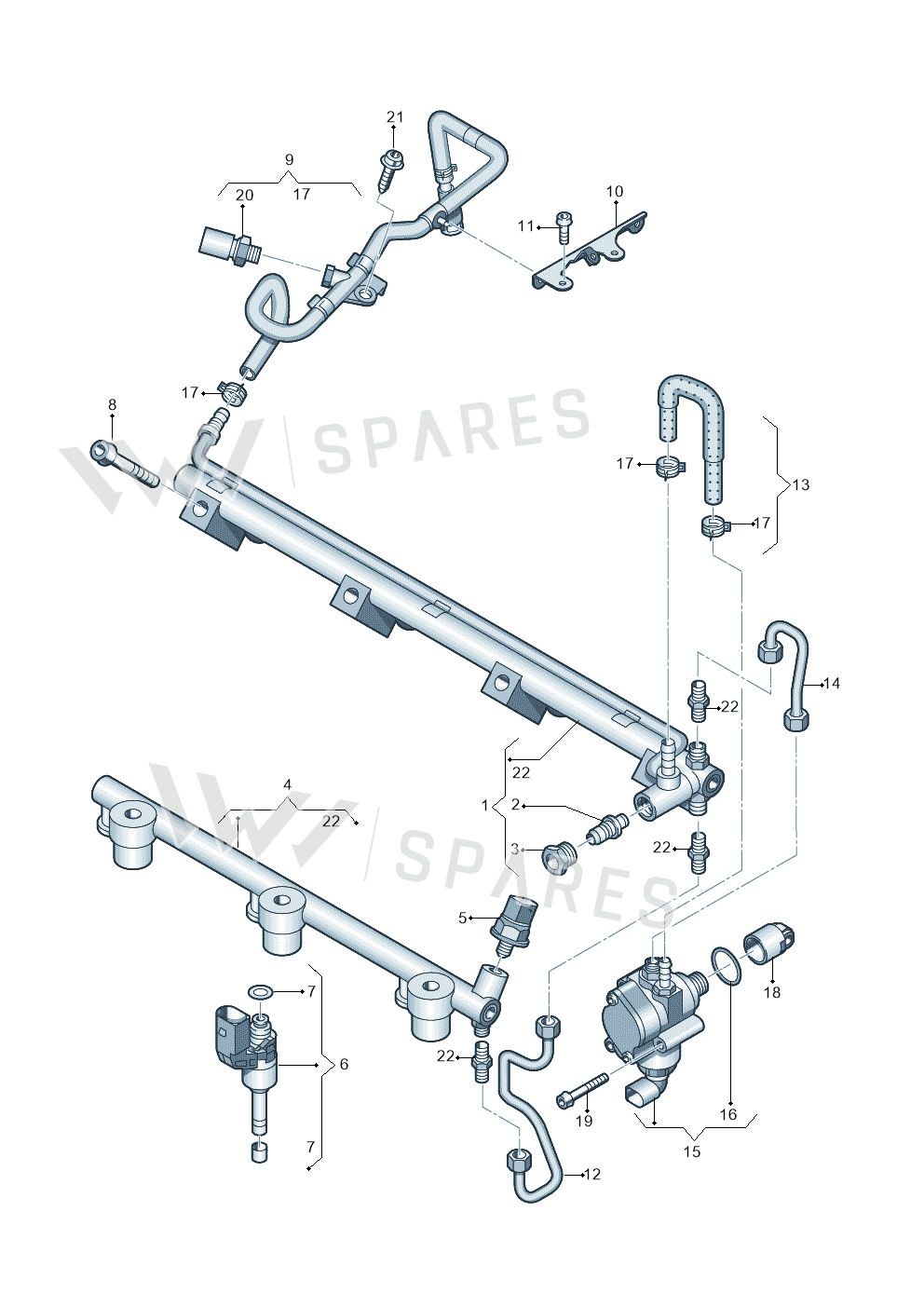

4 vehiclesFuel Line — locate Fuel Line in the official exploded view and explore the surrounding assembly.
Parts in this assembly27
- 1Rail 03H133316M
- 2Valve 03C103363H
- 3Screw WHT000435A
- 4Rail 03H133317P
- 5Sensor 06J906051C
- 6Valve 03H906036A
- 6Valve 03H906036
- 7Part 03H198149A
- 7Part 03H198149
- 8Screw N10544903
- 9Fuel Line 561133986A
- 9Fuel Line 561133986C
- 9Fuel Line 3C0133986D
- 10Bracket 03H133340D
- 11Bolt N91084402
- 12Fuel Line 03H133321F
- 13Hose 03H133322E
- 14Fuel Line 03H133321G
- 15Pump 03H127025G
- 16Seal Ring WHT005184
- 17Clamp N90986501
- 17Clamp N91208604
- 18Tappets 03H127307A
- 19Bolt N10622101
- 20Sensor 03C906051A
- 21Bolt N91033802
- 22Adapter 06E127065B
Vehicle fitment table4
Europe (3)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| superb | 2013-2015 | 9 | 1 |
| Passat CC | 2011-2016 | 9 | 1 |
| Passat saloon | 2010-2015 | 9 | 1 |
Other markets (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| New Passat | 2011-2015 | 9 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Fuel Line is fitted on: superb 2013-2015; Passat CC 2011-2016; Passat saloon 2010-2015; New Passat 2011-2015.
