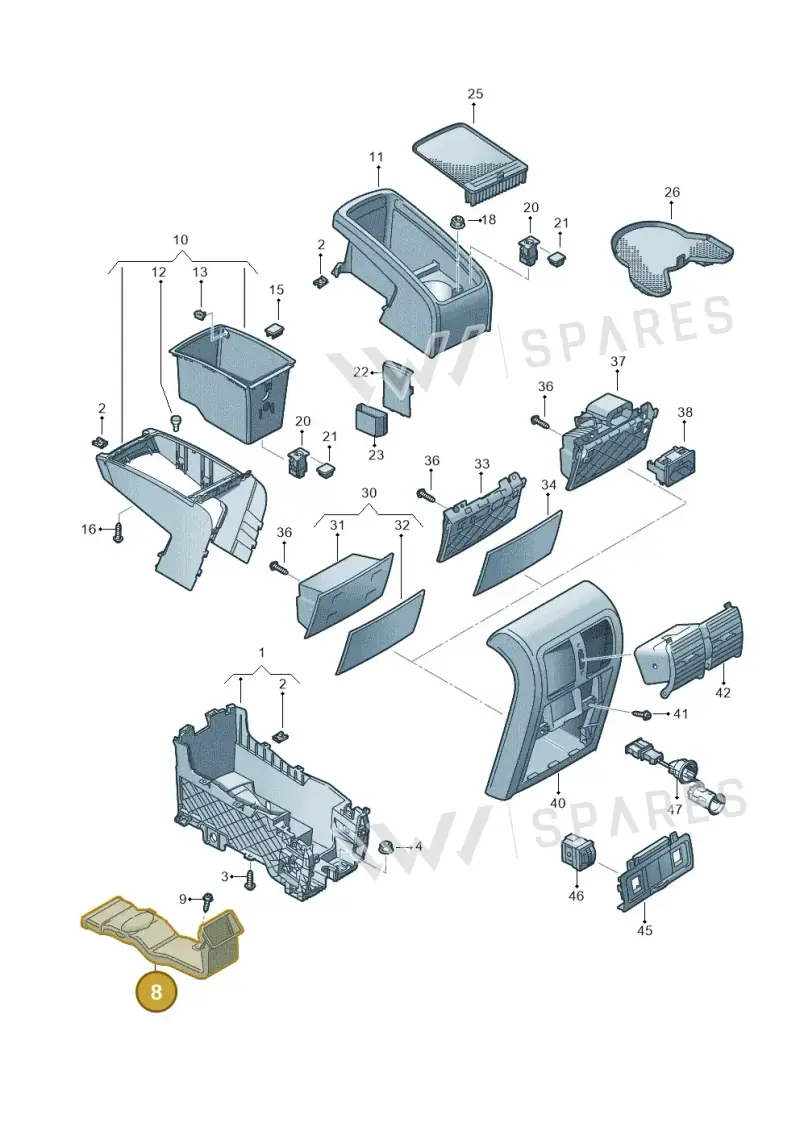

Number 8 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Instrument Panel Air Guide Channel, part number 3C0864254B. This molded plastic duct is designed to precisely direct conditioned airflow behind the instrument panel, ensuring efficient distribution of heating or cooling throughout the vehicle's cabin. It is an essential component of the HVAC system. Weighing 0.173 kg and measuring 0.404m in length, this channel is engineered for optimal airflow. Using a genuine OEM air guide channel ensures correct routing geometry, proper sealing, and efficient climate control performance without air leaks or turbulence.
Technical details
- Category
- Heating & A/C
- Customs (HS) code
- 87082990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 40.4 × 15.5 × 17.3 cm
- Shipping weight
- 0.17 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
6 vehiclesAir Guide Channel — locate 3C0864254B Volkswagen Instrument Panel Air Guide Channel | HVAC in the official exploded view and explore the surrounding assembly.
Parts in this assembly27
- 1Holder 3C0864089B
- 2Part N90698801
- 3Bolt N90918701
- 4Part N90714303
- 9Bolt N90698606
- 10Console 3C0863315
- 10Console 3C0863315A
- 10Console 3C0863315B
- 10Console 3C0863315C
- 10Console 3C0864320G
- 10Console 3C0864320F
- 11Console 3C0863323M
- 12Buffer 3D0863453
- 13Clip 3C0864369
- 15Part 3C0864337
- 16Bolt N10415903
- 25Insert 3C0863135
- 26Insert 3C0863136
- 32Trim 3C0857967
- 33Retainer 3C0863615
- 34Panel 3C0863365A
- 36Screw N10526302
- 40Frame 3AA864376A
- 40Frame 3AA864376
- 41Bolt N10656702
- 45Panel 3C0863289D
- 45Panel 3C0863289C
Vehicle fitment table6
Europe (6)
| Vehicle | Years | Pos. | Remark |
|---|---|---|---|
| Passat CC | 2011-2016 | 8 | |
| Passat saloon | 2010-2015 | 8 | |
| Passat CC | 2008-2012 | 8 | |
| passat estate | 2008-2011 | 8 | 1 |
| Passat/4Motion 08 | 2007- | 8 | 1 |
| Passat/4Motion | 2005-2007 | 8 | 1 |
