3C1820103C Evaporator With Expansion Valve
- 3C1820103Not stocked
Oct 2005 - 3C1820103ANot stocked
Sep 2006 - 3C1820103BNot stocked
Oct 2011 - 3C1820103CThis pageNot stocked
Aug 2013 - 3C1820103DCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

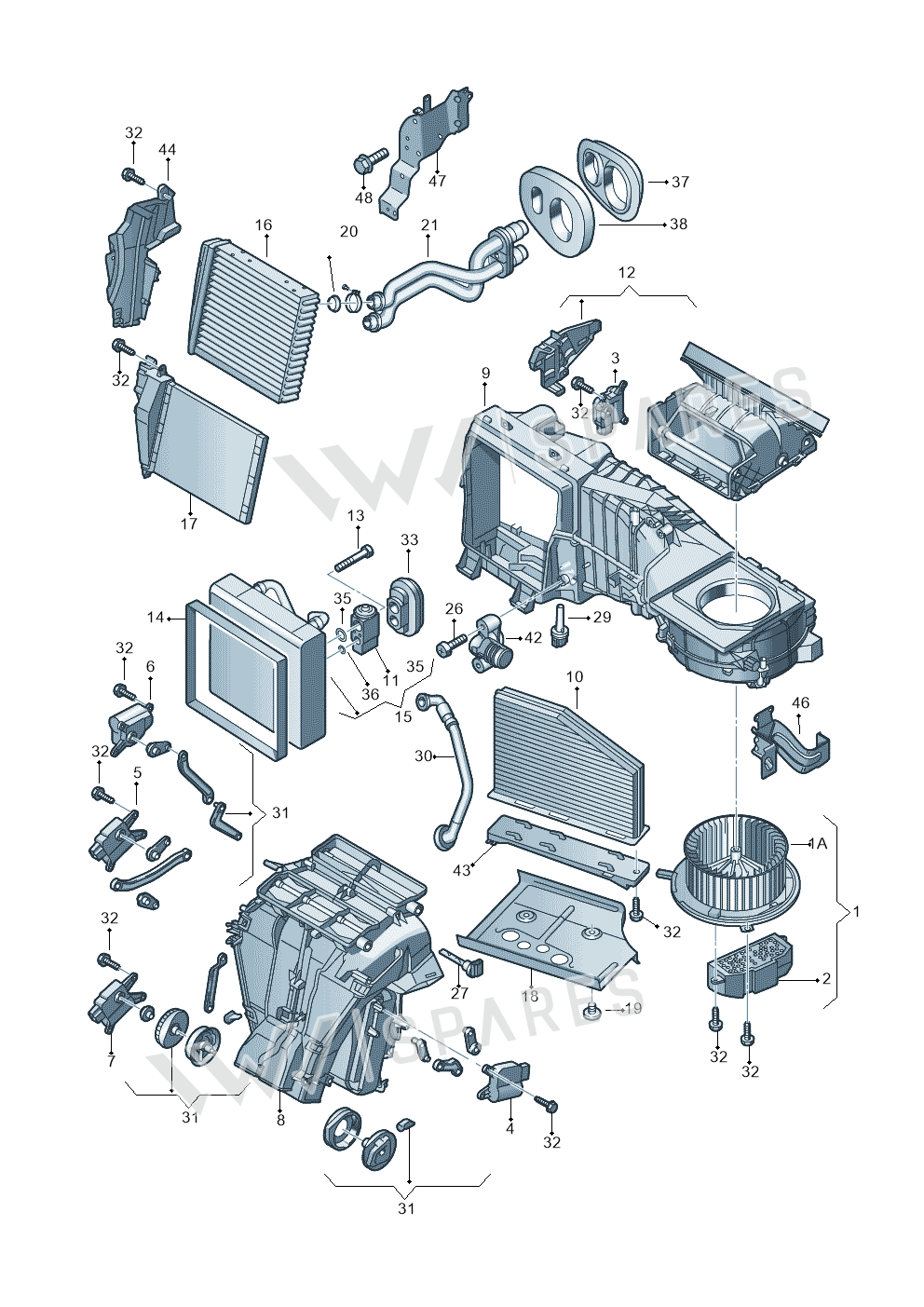

6 vehiclesEvaporator With Expansion Valve — locate Evaporator With Expansion Valve in the official exploded view and explore the surrounding assembly.
Parts in this assembly39
- 1APart 3C1820015AA
- 2Regulator 3C0907521E
- 2Regulator 3C0907521G
- 2Regulator 3C0907521F
- 3Motor 3C0907511A
- 4MotorRight3C0907511R
- 5MotorLeft3C1907511F
- 6Servomotor 3C1907511G
- 8Part 3C1898353L
- 8Part 3C1898353K
- 9Housing 3C1898063A
- 10Dust Filt 1K1819653B
- 11Expans Val 1K0820679
- 12Int Duct 3C0898304D
- 13Screw N10476301
- 14Seal 1K0820080
- 16Heat Exch 3C0819031
- 17Heat Element 1K0963235G
- 18Cover 3T1819593A
- 19Screw WHT000155
- 20Gask Set 3C0898380
- 21Part 3C1819857
- 25Temperature Sensor 1K0907543F
- 26Screw N10424102
- 27Temperature Sensor 3D0907543A
- 30Pipe 1K1260113D
- 31Lever 3C1898001F
- 33Seal 1K0820139
- 35Seal Ring 8E0260749D
- 36Seal Ring 8E0260749
- 37Grommet 3C0820751
- 38Seal 3C1820061
- 42Adapter 3C1820215
- 43Cover 3C0819422
- 44Cover 3C1819349C
- 44Cover 3C1819349B
- 46Bracket 1K1819453
- 47Bracket 1K1819473H
- 48Bolt N90532901
Vehicle fitment table6
Europe (6)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| superb | 2013-2015 | 15 | 1 |
| Golf | 2011-2013 | 15 | 1 |
| Yeti | 2009-2013 | 15 | 1 |
| superb comfort | 2008-2013 | 15 | 1 |
| Passat CC | 2008-2012 | 15 | 1 |
| TIGUAN 08> | 2007- | 15 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Evaporator With Expansion Valve is fitted on: superb 2013-2015; Golf 2011-2013; Yeti 2009-2013; superb comfort 2008-2013; Passat CC 2008-2012; TIGUAN 08> 2007-.
