3D0823031K Bonnet
- 3D0823031LNot stocked
Sep 2010 - 3D0823031KThis pageNot stocked
Dec 2010 - 3D0823031KGMDNot stocked
Dec 2010 - 3D0823031KKTLCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

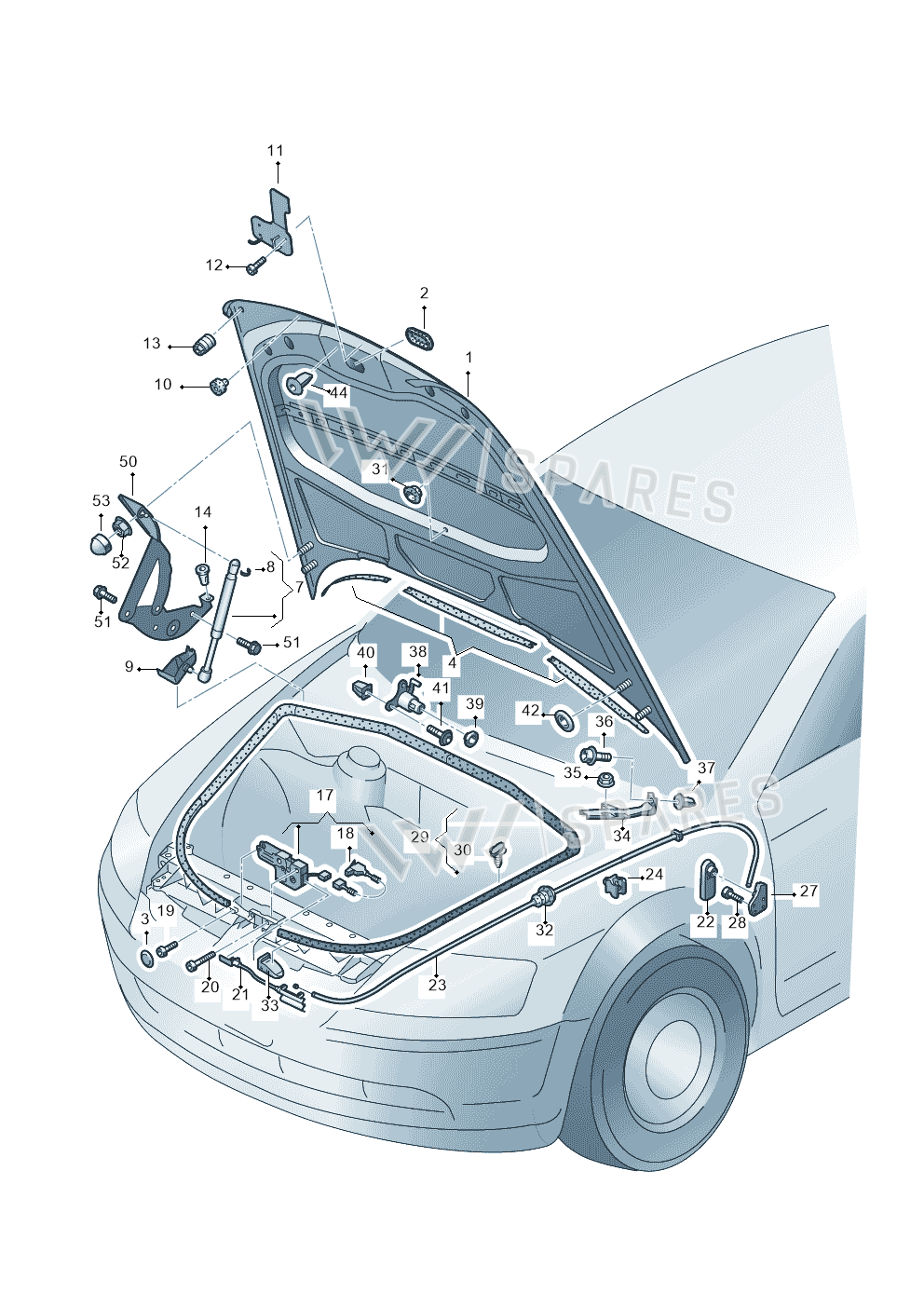

1 vehicleBonnet — locate Bonnet in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 2Bungs 1K0899187
- 3Bungs 893803593A
- 4Film 3D0823286
- 7G Fill Str 3D0823359C
- 8Clip 443823397
- 9Bear BrackLeft3D0823401A
- 9Bear BrackRight3D0823402A
- 10Buffer 3D0823429B
- 11Catch Hook 3D0823480H
- 12Bolt N90807301
- 13Buffer 8D0823481
- 14Stop 8D5827499
- 17Lock 3D2823509A
- 17Lock 3D0823509D
- 18Switch 3D2953236
- 18Switch 3D0953236A
- 20Bolt WHT000425
- 21Lid Cable 3D1823531F
- 21Lid Cable 3D2823531B
- 22Handle 3D2823533A
- 22Handle 3D1823533
- 23Lid Cable 3D0823535E
- 24Clip 6Q0823567
- 27Bracket 3D2823633
- 27Bracket 3D1823633
- 28Bolt N90807405
- 29Gasket 3D0823707D
- 30Clip 3D0823717
- 31Bungs 191807196
- 32Grommet 3D0823743
- 33Cover 3D1823745
- 34Cover 3D2823756B
- 34CoverLeft3D1823755C
- 35Collar Nut N01508210
- 36Bolt N90974701
- 37Part N10516801
- 38Cylinder 107823655BB
- 39Panel 3D0823865
- 40Part N90541001
- 41Screw N90548803
- 42Bungs 3D0955440A
- 42Bungs 3D0955440
- 44Part N10318001
- 50HingeLeft3D0823301F
- 50HingeRight3D0823302F
- 51Bolt N90798702
- 52Collar Nut N90798805
- 53Part N90650001
Vehicle fitment table1
Europe (1)
| Vehicle | Years | Pos. |
|---|---|---|
| phaeton 4motion | 2010-2016 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Bonnet is fitted on: phaeton 4motion 2010-2016.
