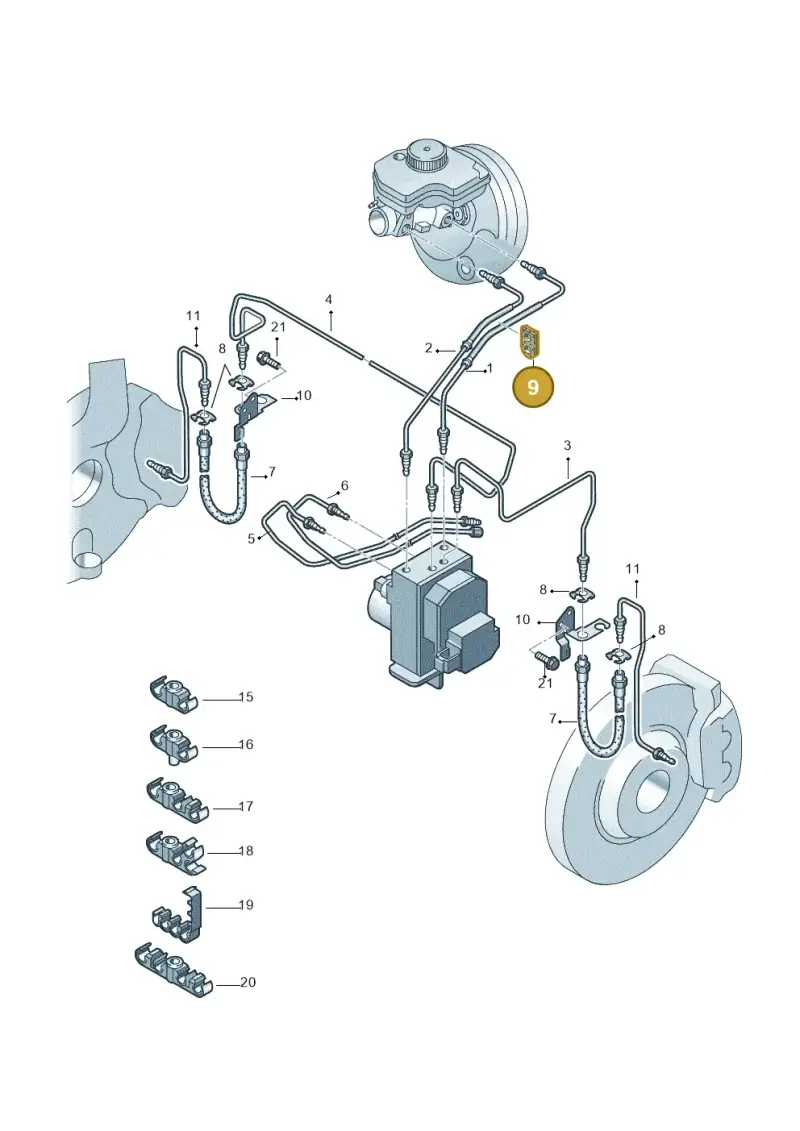

Number 9 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Protective Sleeve, part number 3D2614769. This protective sleeve is a small component used in the braking system assembly. Its primary function is to shield and protect associated lines or components from damage. It is located near the ABS unit. Made from durable rubber material. Genuine OEM parts ensure precise fitment and material integrity for critical braking system components.
Technical details
- Category
- Exhaust
- Customs (HS) code
- 40169957
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 4.6 × 3.8 × 1.5 cm
- Shipping weight
- 0.01 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
4 vehiclesGrommet — locate 3D2614769 Volkswagen Protective Sleeve | Genuine OEM in the official exploded view and explore the surrounding assembly.
RThis part is the Right side
Parts in this assembly27
- 1Brake PipeLeft3D1614721E
- 1Brake PipeRight3D2614721A
- 1Brake PipeLeft3D1614721F
- 2Brake PipeLeft3D1614722E
- 2Brake PipeRight3D2614722A
- 2Brake PipeLeft3D1614722F
- 3Brake Pipe 3D1614723H
- 4Brake Pipe 3D1614724J
- 5Brake Line 3D1614739H
- 6Brake Line 3D1614740H
- 7Brake Hose 3D0611701G
- 8Spring 3D0611715B
- 9GrommetLeft3D1614769A
- 10RetainerRight3D0611844C
- 10RetainerLeft3D0611843C
- 11Brake LineLeft3D0611721H
- 11Brake LineLeft3D0611721J
- 11Brake LineRight3D0611722H
- 11Brake LineRight3D0611722J
- 15Bracket 6Q0611797C
- 15Bracket 3D0611797
- 16Bracket 3D0611797D
- 17Bracket 3D0611797A
- 18Bracket 3D0611797E
- 19Bracket 6N0611797D
- 20Bracket 3D0611797C
- 21Bolt N90245210
Vehicle fitment table4
Europe (4)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| phaeton 4motion | 2010-2016 | 9 | 1 | L0R |
| phaeton 4motion | 2008-2010 | 9 | 1 | |
| PHAETON 08> | 2007- | 9 | 1 | |
| Phaeton (lang) | 2003-2006 | 9 | 1 | L0R |
