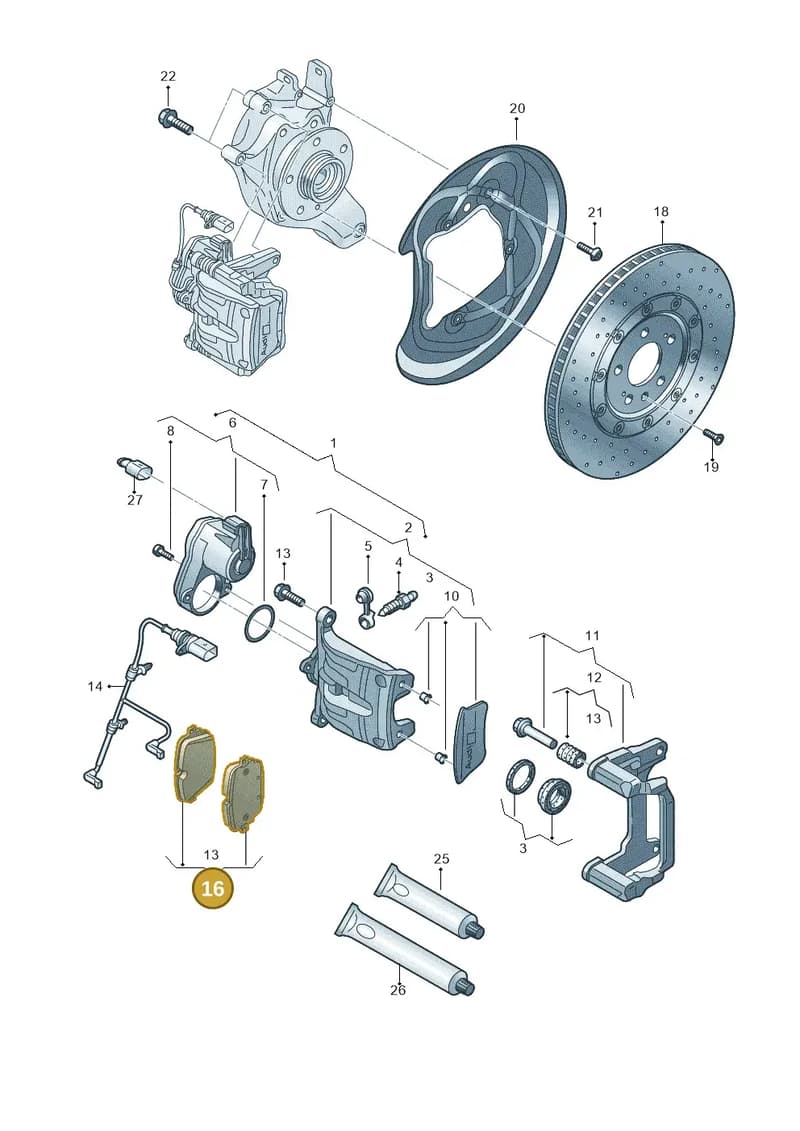

Number 16 marks the part’s position in the exploded view (Audi A6 (2018-2025)).
Product overview
Genuine OEM Audi 1 Set of Brake Pads for Disk Brake, part number 4M0698451AH. Fits Audi A6 (2018-2025), Audi A7 Sportback (2018-2025), Audi A8 (2017-2025). Shown as position 16 in the wheels and brakes diagram 859615750.
Catalogue entry: BR. LINING 370X30MM; also use: 4M0 615 121 D ×2; WHT 010 085 ×4.
Use with: 4M0615121D (×2), WHT010085 (×4). Fitted with: 4N0615403C Housing, 4N0615404C Housing, WHT003252 BOLT, 4M0615121D WIRE, 4M0698451AE BR. LINING, G052150A2 GREASE, G055150A1 GREASE, 4M8615425 PLATE BRAK, 4M86154251VN GREY, 4M8615426 PLATE BRAK, 4M86154261VN GREY, N91126801 bolt.
Technical details
- Category
- Brakes
- Diagram sheet
- Audi 859615750, position 16
- ETKA group
- 6 / 15 (615)
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Dimensions
- 370x30 mm
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
3 vehicles1 Set Of Brake Pads For Disk Brake — locate 4M0698451AH Audi 1 Set of Brake Pads for Disk Brake in the official exploded view and explore the surrounding assembly.
Parts in this assembly28
- 1PartRight4N0615404C
- 1PartLeft4N0615403C
- 3Gask Set 4M0698671A
- 4Valve 1K0615273C
- 5Part 4H0611483
- 6Servomotor 8W0998281
- 7Seal Ring 4E0615137
- 8Bolt N10285506
- 10Repair Kit 4M0698221
- 11Plate BrakRight4M0615426A
- 11Plate BrakLeft4M0615425A
- 12Rep Set 7N0698647A
- 13Bolt WHT010085
- 13Bolt WHT003252
- 14Wire 4M0615121D
- 16Part 4M0698451AE
- 18BrakediscLeft4M0615601AD
- 18BrakediscRight4M0615602D
- 18BrakediscRight4M0615602J
- 18BrakediscLeft4M0615601S
- 19Bolt N10648301
- 20Cov PlateRight4M0615612B
- 20Cov PlateLeft4M0615611B
- 21Bolt N10741402
- 22Bolt N91126801
- 25Paste G000650
- 26Grease G052150A2
- 27Housing 6X0973722G
Compatible / alternative parts(5)
Vehicle fitment table3
Europe (3)
| Vehicle | Years | Pos. |
|---|---|---|
| audi a6 2.0 | 2018- | 16 |
| Audi A7 Sportback | 2018- | 16 |
| Audi A8L | 2017-2022 | 16 |
Diagrams & fitment data powered by oemdiagrams.com
4M0698451AH Audi 1 Set of Brake Pads for Disk Brake is fitted on: audi a6 2.0 2018-; Audi A7 Sportback 2018-; Audi A8L 2017-2022.
