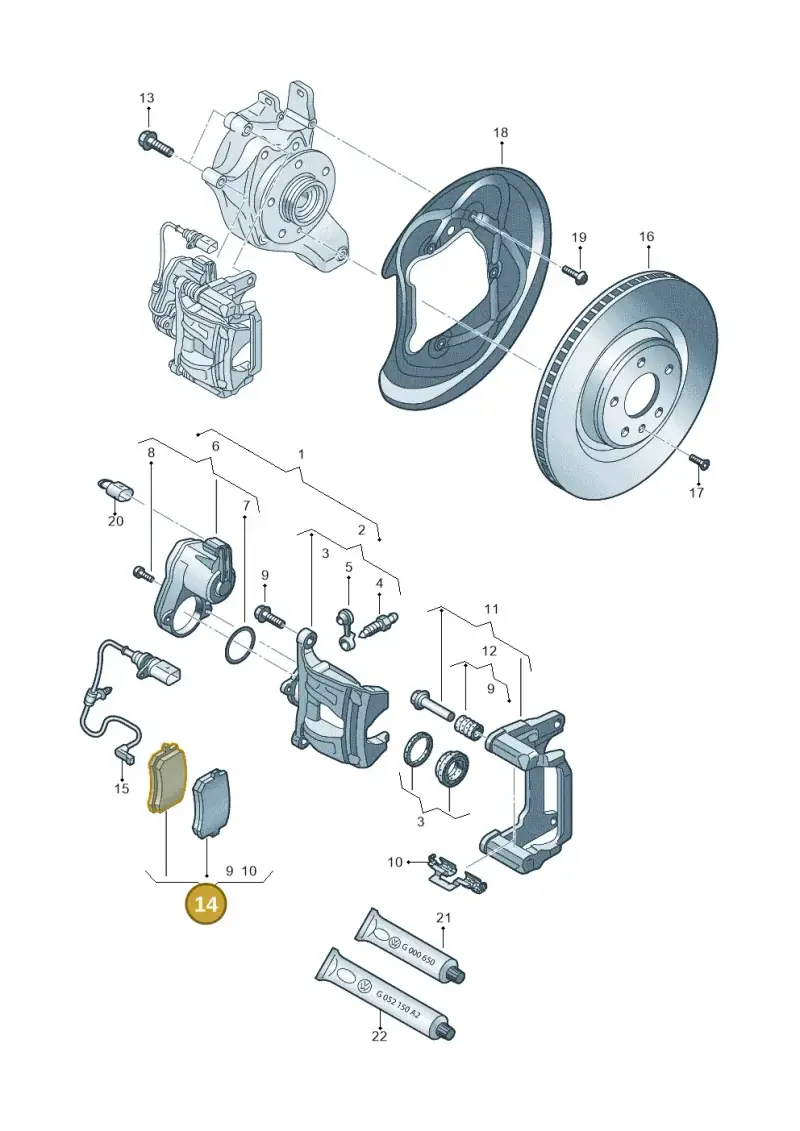

Number 14 marks the part’s position in the exploded view (Audi Q8 (2018-2025)).
Product overview
Genuine OEM Audi 1 Set of Brake Pads for Disk Brake, part number 4M0698451BF. Fits Audi Q8 (2018-2025), Audi Q7 (2015-2025). Shown as position 14 in the wheels and brakes diagram 849615600.
Catalogue entry: BR. LINING 350X28MM; also use: 4K0 698 231 B; 8W0 615 121 E; WHT 010 085 ×4.
Use with: 4K0698231B, 8W0615121E, WHT010085 (×4). Fitted with: 4M0615403F Housing, 4M0615403FSL7 GREY, 4M0615403FQB7 BLACK, 4M0615403FQC8 RED, 4M0615404F Housing, 4M0615404FSL7 GREY, 4M0615404FQB7 BLACK, 4M0615404FQC8 RED, WHT003252 BOLT, N91126801 bolt, 4M0698451AC BR. LINING, 4M0698451BE BR. LINING.
Technical details
- Category
- Brakes
- Diagram sheet
- Audi 849615600, position 14
- ETKA group
- 6 / 15 (615)
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Dimensions
- 350x28 mm
Equipment codes
- 1KU
- 2EA
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
2 vehicles1 Set Of Brake Pads For Disk Brake — locate 4M0698451BF Audi 1 Set of Brake Pads for Disk Brake in the official exploded view and explore the surrounding assembly.
Parts in this assembly30
- 1HousingRight4M0615404F
- 1HousingLeft4M0615403F
- 3Gask Set 4M0698671C
- 4Valve 1K0615273C
- 5Part 4H0611483
- 6Servomotor 4M0998281
- 7Seal Ring 4E0615137
- 8Bolt N10285506
- 9Bolt WHT010085
- 9Bolt WHT003252
- 10Ret Spring 4K0698231B
- 10Spring 4K0615231B
- 11Plate BrakRight4M0615426D
- 11Plate BrakLeft4M0615425D
- 12Rep Set 7N0698647A
- 13Bolt N91126801
- 14Part 4M0698451AB
- 14Part 4M0698451AD
- 14Part 4M0698451BE
- 14Part 4M0698451BG
- 14Part 4M0698451AC
- 15Sender 8W0615121E
- 16Brakedisc 4M0615601P
- 17Bolt N10648301
- 18Cov PlateRight4M0615612C
- 18Cov PlateLeft4M0615611C
- 19Bolt N10741402
- 20Housing 6X0973722G
- 21Paste G000650
- 22Grease G052150A2
Compatible / alternative parts(3)
Vehicle fitment table2
Europe (2)
| Vehicle | Years | Pos. |
|---|---|---|
| Audi Q8 Quattro 3,0 | 2018- | 14 |
| Audi Q7 qu. 3.0 TDI | 2015-2019 | 14 |
Diagrams & fitment data powered by oemdiagrams.com
4M0698451BF Audi 1 Set of Brake Pads for Disk Brake is fitted on: Audi Q8 Quattro 3,0 2018-; Audi Q7 qu. 3.0 TDI 2015-2019.
