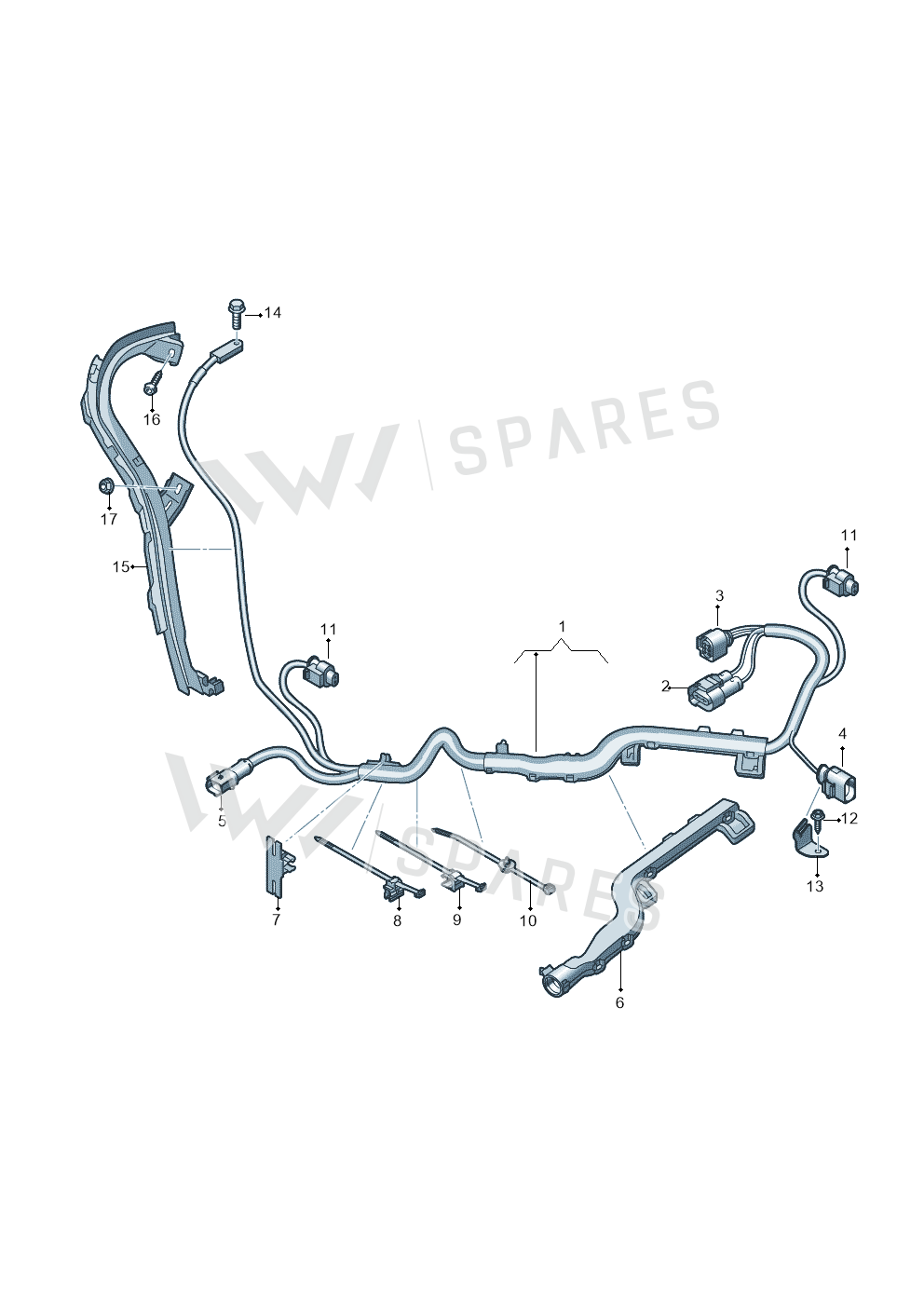

Wiring Set exploded parts diagram — Audi Q7 qu. 3.0 TDI · 2015-2019, position 1
Exploded view
Audi Q7 qu. 3.0 TDI · 2015-2019 · position 1Full diagram ↓
4M1971111AC

4M1971111AC Wiring Set

£166.17
£137.33 excl. VAT
Supersession roadoldest to newest
  1. 4M1971111ACThis pageNot stocked
    Feb 2019
  2. 4M1971111BACurrent number
Current part number4M1971111BAWhat the manufacturer supplies todayOrder
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

1 vehicle

Wiring Set — locate Wiring Set in the official exploded view and explore the surrounding assembly.

Parts in this assembly48
Vehicle fitment table1

Europe (1)

VehicleYearsPos.Qty
Audi Q7 qu. 3.0 TDI2015-201911

Diagrams & fitment data powered by oemdiagrams.com

Wiring Set is fitted on: Audi Q7 qu. 3.0 TDI 2015-2019.
