5K0823302C Lid Hinge
- 1K0823302ANot stocked
Nov 2003 - 1K0823302BNot stocked
Feb 2006 - 5K0823302BNot stocked
Sep 2010 - 5K0823302CThis pageNot stocked
Jan 2011 - 1KM823302Current number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

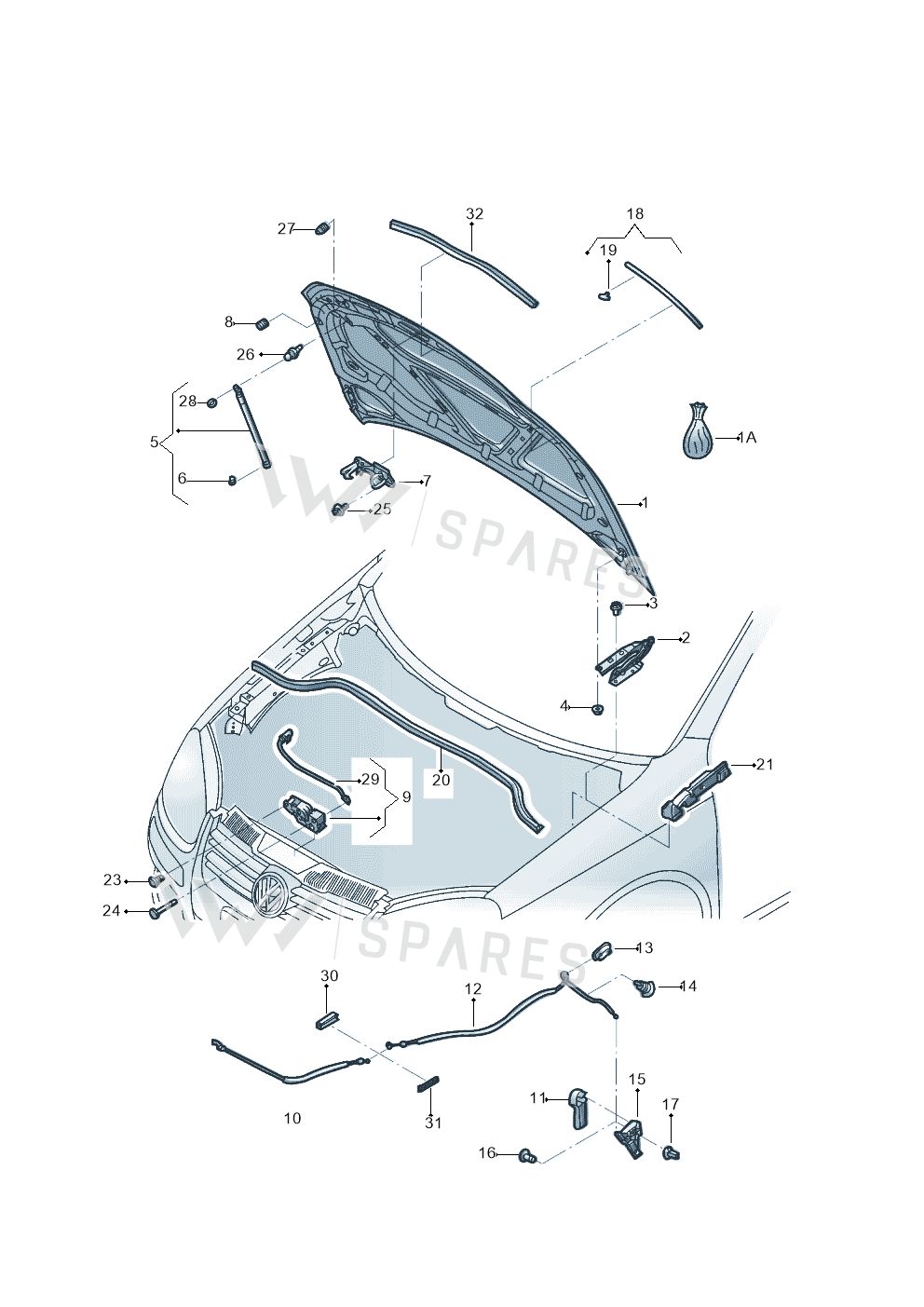

4 vehiclesLid Hinge — locate Lid Hinge in the official exploded view and explore the surrounding assembly.
RThis part is the Right side
Parts in this assembly48
- 1Bonnet 5K0823031G
- 1APart 1K0898615C
- 1AFixing Set 1K0898615D
- 1APart 1K0898615A
- 1APart 1K0898615B
- 2HingeLeft1KM823301
- 2HingeRight1KM823302
- 2HingeLeft5K0823301C
- 2HingeRight5K0823302B
- 2HingeLeft5K0823301B
- 3Bolt N90822101
- 4Collar Nut N01508315
- 5G Fill Str 5K0823359D
- 6Clip 443823397
- 7Catch Hook 1Q0823480
- 8Buffer 3B0823499B
- 9Lock 5K1823509A
- 9Lock 5K2823509A
- 9Lock 5K2823509B
- 9Lock 5K1823509
- 10Lid Cable 5K2823531
- 10Lid Cable 5K2823531A
- 10Lid Cable 5K1823531
- 11Handle 1J2823533C
- 11Handle 1J1823533C
- 12Lid Cable 1K2823535A
- 12Lid Cable 5K0823535
- 13Grommet 1K2823544
- 13Grommet 1K1823544
- 14Grommet 1K0823591B
- 15Bracket 1K2823633A
- 15Bracket 1K1823633B
- 16Screw N90548803
- 17Part N90541001
- 18Gasket 5K0823707C
- 19Clip 1H0823717
- 20Seal 1K0823723B
- 21Filler PieceRight5K1823730
- 21Filler PieceRight5K2823730
- 21Filler PieceLeft5K0823729A
- 23Bolt N90807301
- 24Bolt N90917701
- 25Bolt N90820401
- 26Stud 1J6827439A
- 27Buffer 7E0823499
- 27Buffer 867827500A
- 28Clip 1H5827905
- 29Switch 5K0953236A
Vehicle fitment table4
Europe (3)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| jetta variant | 2009-2014 | 2 | 1 |
| golf estate | 2009-2013 | 2 | 1 |
| jetta | 2008-2011 | 2 | 1 |
Other markets (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Jetta "USA"05> | 2005- | 2 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Lid Hinge is fitted on: jetta variant 2009-2014; golf estate 2009-2013; jetta 2008-2011; Jetta "USA"05> 2005-.
