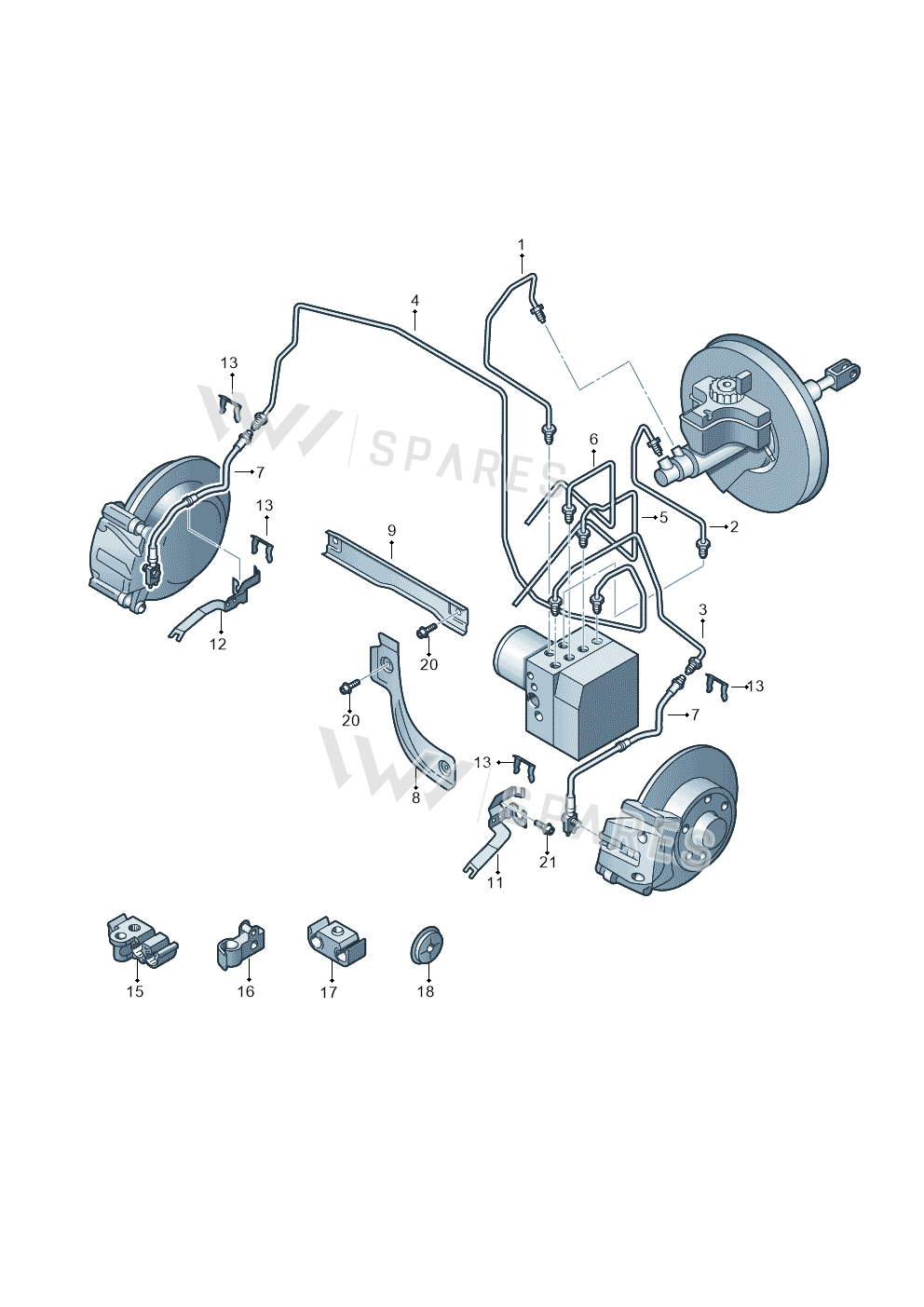

Brake Hose exploded parts diagram — TIGUAN 08> · 2007-, position 7 — TIGUAN 08> · 2007- · position 7Full diagram ↓

5N0611701

5N0611701 Brake Hose

Name: 5N0611701 Brake Hose
Brand: Volkswagen
SKU: 5N0611701
Price: 31.96 GBP
Availability: Discontinued

£31.96

£26.41 excl. VAT

Supersession roadoldest to newest

5N0611701
Not stocked Jun 2011
You are here
5N0611701A
Current number

5N0611701This pageNot stocked
Jun 2011
5N0611701ACurrent number

Current part number5N0611701AWhat the manufacturer supplies todayOrder

Availability: No longer supplied under this number

Quantity:

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Genuine OEM Parts

Direct from manufacturer

Secure Ordering

Safe and protected checkout

Parts diagram & fitment

2 vehicles

Brake Hose — locate Brake Hose in the official exploded view and explore the surrounding assembly.

Parts in this assembly23

Vehicle fitment table2

Europe (1)

Vehicle	Years	Pos.	Qty	Remark	PR
TIGUAN 08>	2007-	7	2		L0L

Other markets (1)

Vehicle	Years	Pos.	Qty	Remark	PR
Tiguan	2009-2019	7	2		1ZD
