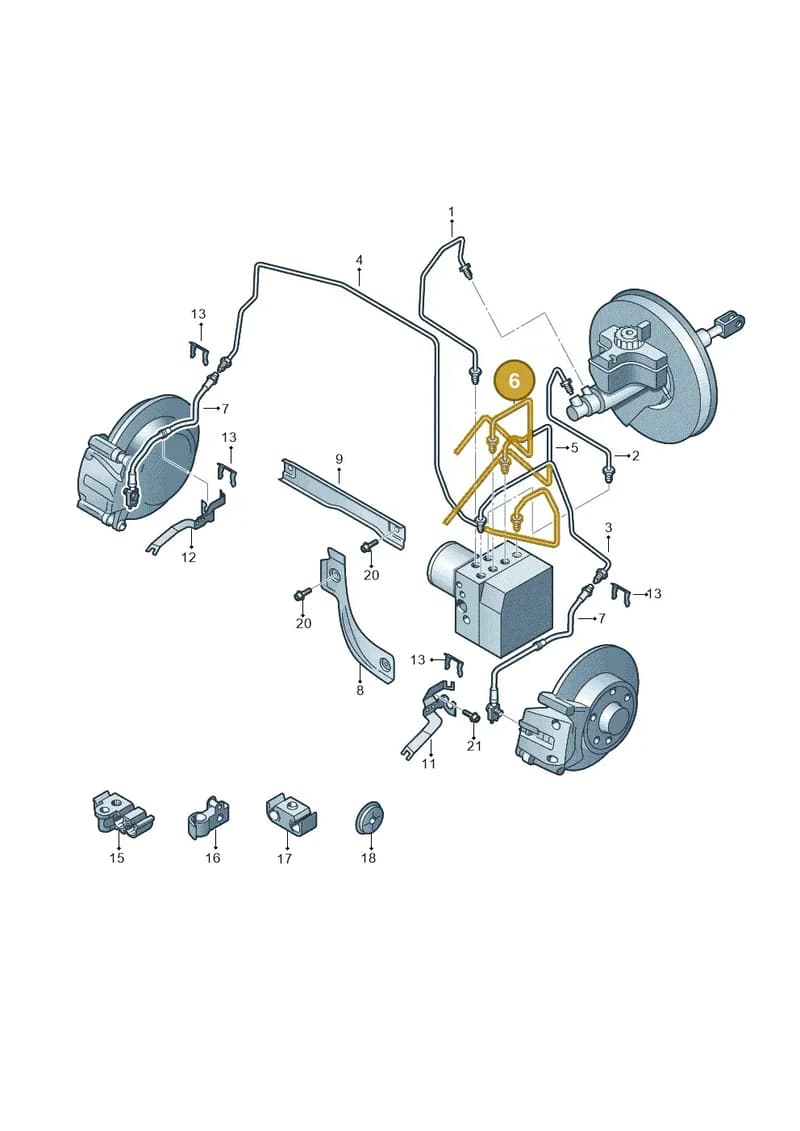

Number 6 marks the part’s position in the exploded view (Volkswagen Tiguan (2011-2018)).
Product overview
Genuine OEM Volkswagen Brake Pipe, part number 5N0614726D. Fits Volkswagen Tiguan (2011-2018). Shown as position 6 in the wheels and brakes diagram 634611200.
Catalogue entry: BRAKE PIPE right.
Technical details
- Category
- Brakes
- Diagram sheet
- Volkswagen 634611200, position 6
- ETKA group
- 6 / 11 (611)
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
2 vehiclesBrake Pipe — locate 5N0614726D Volkswagen Brake Pipe in the official exploded view and explore the surrounding assembly.
Parts in this assembly23
- 1Brake PipeRight5N2614739C
- 1Brake PipeLeft5N1614739B
- 2Brake PipeRight5N2614740C
- 2Brake PipeLeft5N1614740B
- 3Brake Pipe 5N0614723B
- 4Brake PipeRight5N2614724B
- 4Brake PipeLeft5N1614724B
- 5Brake Pipe 5N0614725D
- 5Brake Pipe 5N0614725C
- 6Brake Pipe 5N0614726C
- 7Brake Hose 5N0611701
- 8Prot Plate 5N1611732
- 9Cover 5N0611732A
- 9Cover 5N1611716
- 11Retainer 5N0611841A
- 12Retainer 5N0611842A
- 13Bracket 191611715
- 15Bracket 3C0611797C
- 16Bracket 5N0611797
- 17Clip 8K0611797D
- 18Grommet 1K0611751
- 20Bolt N91123501
- 21Bolt N90245210
Vehicle fitment table2
Europe (2)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Tiguan 4Motion | 2011-2018 | 6 | 1 |
| TIGUAN 08> | 2007- | 6 |
Diagrams & fitment data powered by oemdiagrams.com
5N0614726D Volkswagen Brake Pipe is fitted on: Tiguan 4Motion 2011-2018; TIGUAN 08> 2007-.
