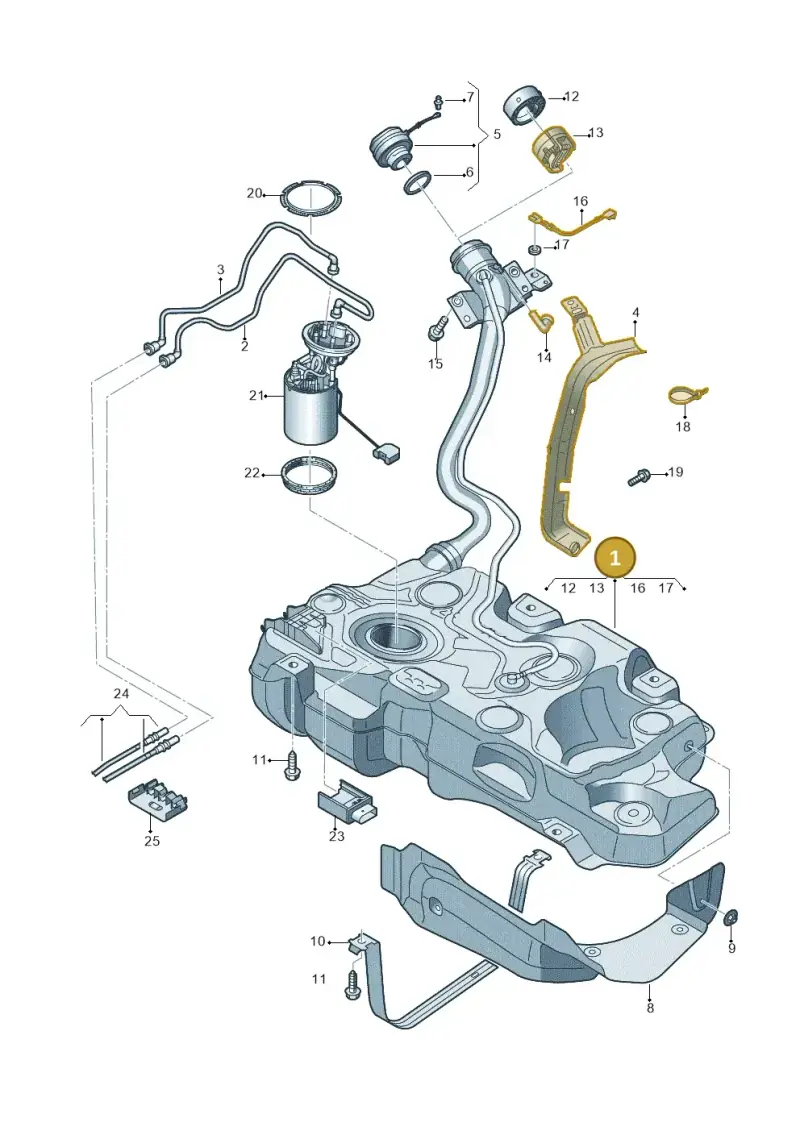

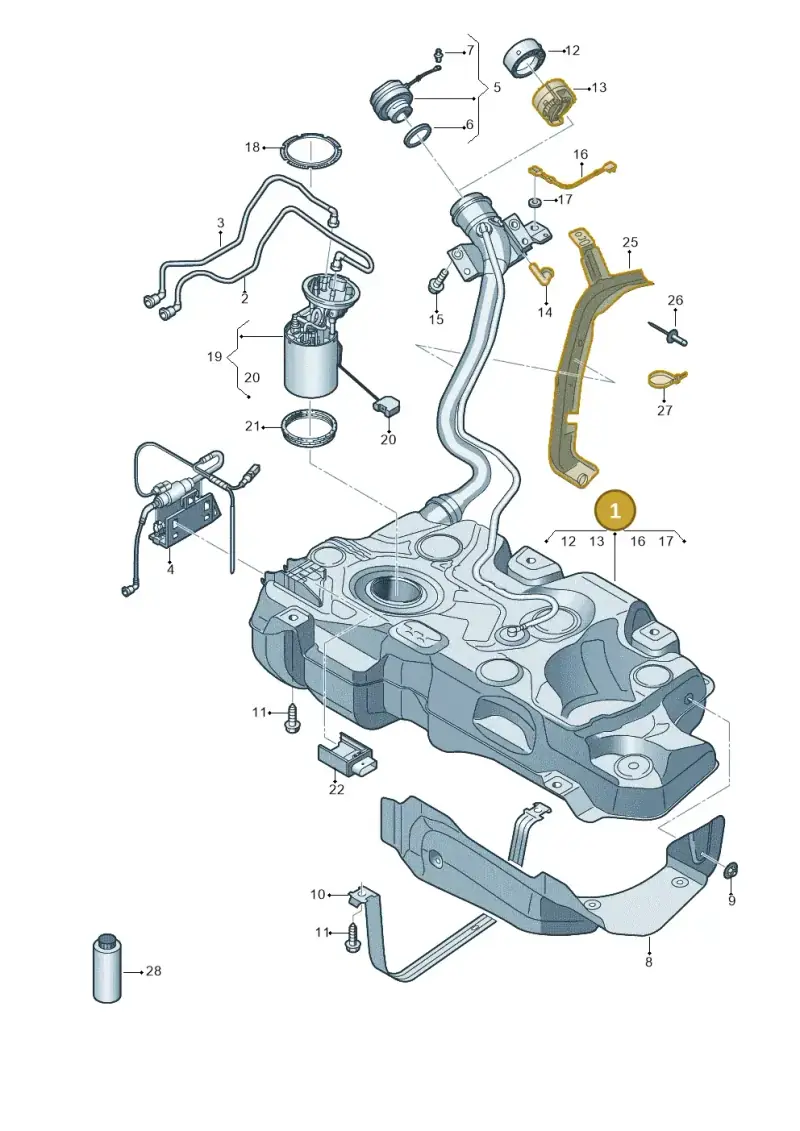

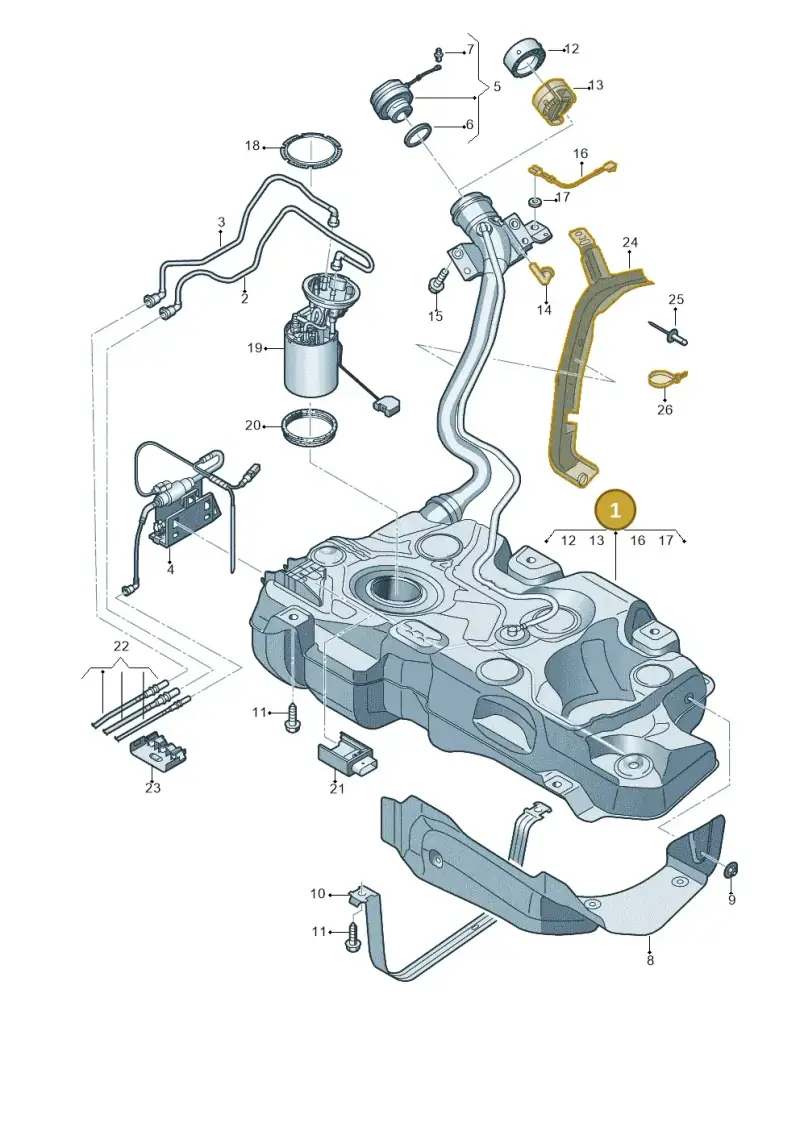

Number 1 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Fuel Tank Assembly, part number 5Q0201060BC. This assembly houses and delivers fuel to the engine. It is a critical component of the fuel system. The diagram indicates this part is labeled as item 1. Genuine OEM fuel tanks are manufactured to precise specifications to prevent leaks and ensure proper fuel delivery.
Technical details
- Category
- Fuel System
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 127 × 107 × 75 cm
- Shipping weight
- 9.49 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
4 vehiclesFuel Tank — locate 5Q0201060BC Volkswagen Fuel Tank Assembly | Genuine OEM in the official exploded view and explore the surrounding assembly.
Superseded by 5Q0201060BH — the later replacement part.
This part is marked discontinued by the manufacturer (since 2016-09-01); contact us to check current availability.
Parts in this assembly29
- 1Container 5Q0201060CK
- 1Container 5Q0201060DL
- 1Container 5Q0201060DQ
- 2Fuel Line 5Q0201294G
- 3Fuel Line 5Q0201293R
- 5Ap&cap With Retaining Strap For Fuel Tank Cap 5Q0201550AM
- 5Ap&cap With Retaining Strap For Fuel Tank Cap 5Q0201550P
- 6Seal Ring 1K0201557A
- 8Heat Sh 5Q0201307N
- 9Part N91068501
- 10Strap 5Q0201656F
- 11Bolt N0195308
- 12Ring 4H0201115A
- 13Ins Piece 4H0201112A
- 14End Piece 895201890
- 15Bolt N90693804
- 16Line 1J0201142A
- 17Bush 1J0201048C
- 18Part 1K0201375
- 19Deliv Unit 5Q0919050AD
- 19Deliv Unit 5Q0919050AK
- 19Deliv Unit 5Q0919050AP
- 19Deliv Unit 5Q0919050P
- 20Sender 5Q0919673AL
- 20Sender 5Q0919673E
- 21Seal Ring 1K0919133D
- 22Control Unit 3Q0906121B
- 22Control Unit 3Q0906121C
- 27Cable Tie N90937702
Compatible / alternative parts(1)
Vehicle fitment table4
Europe (4)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi A3 Sportback | 2016-2020 | 1 | 1 | DK5 | |
| Golf 1.4 BlueMotion | 2014-2017 | 1 | 1 | ||
| Golf Estate 1.4 | 2014-2017 | 1 | 1 | ||
| Audi A3 Sportback | 2012-2016 | 1 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
5Q0201060BC Volkswagen Fuel Tank Assembly | Genuine OEM is fitted on: Audi A3 Sportback 2016-2020; Golf 1.4 BlueMotion 2014-2017; Golf Estate 1.4 2014-2017; Audi A3 Sportback 2012-2016.
