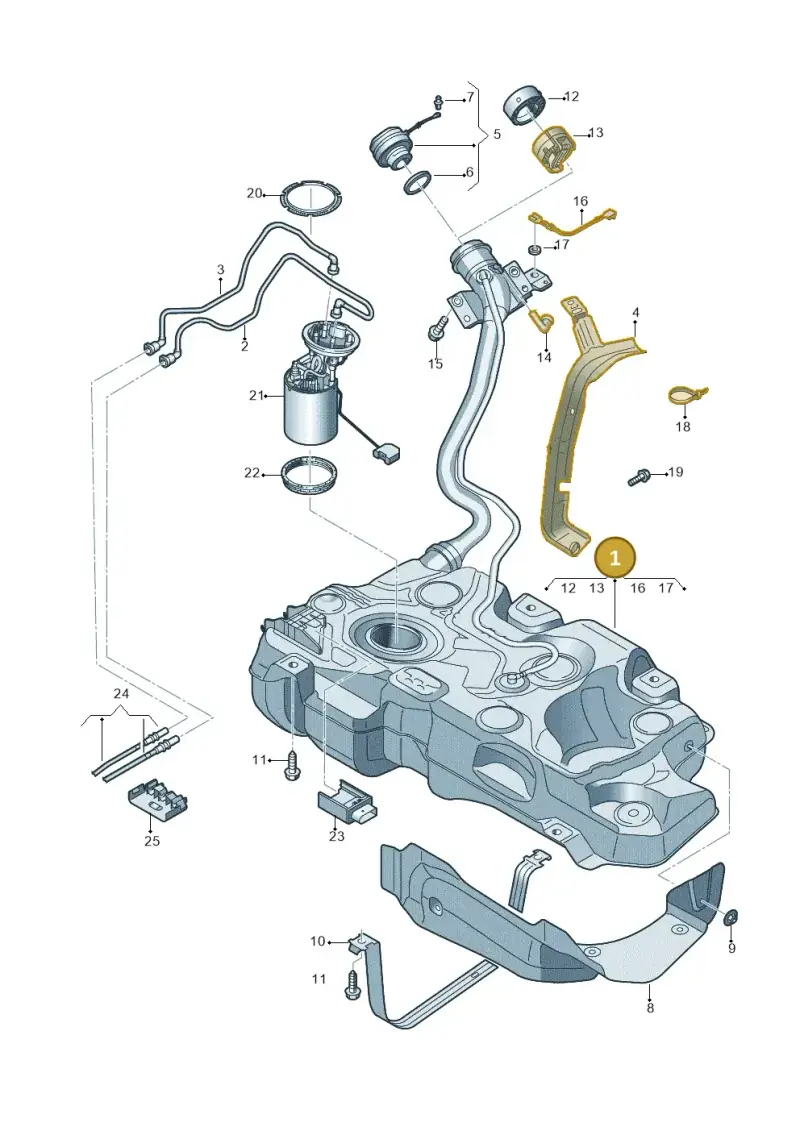

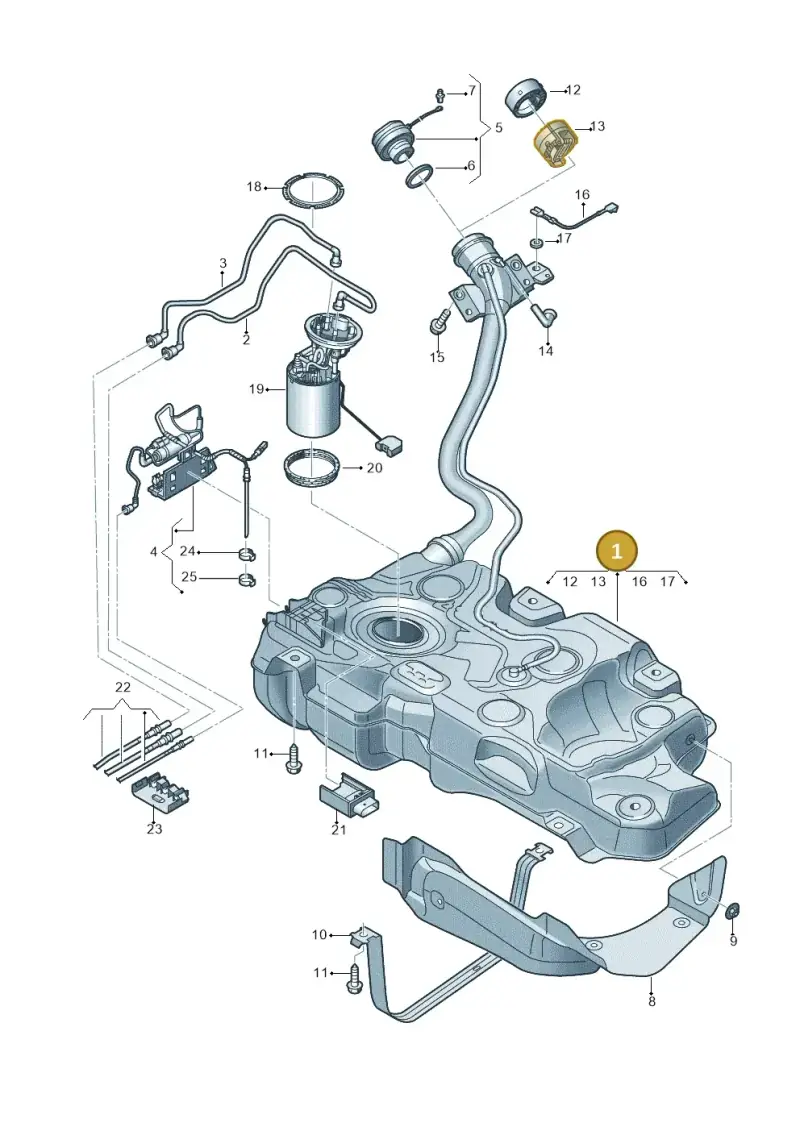

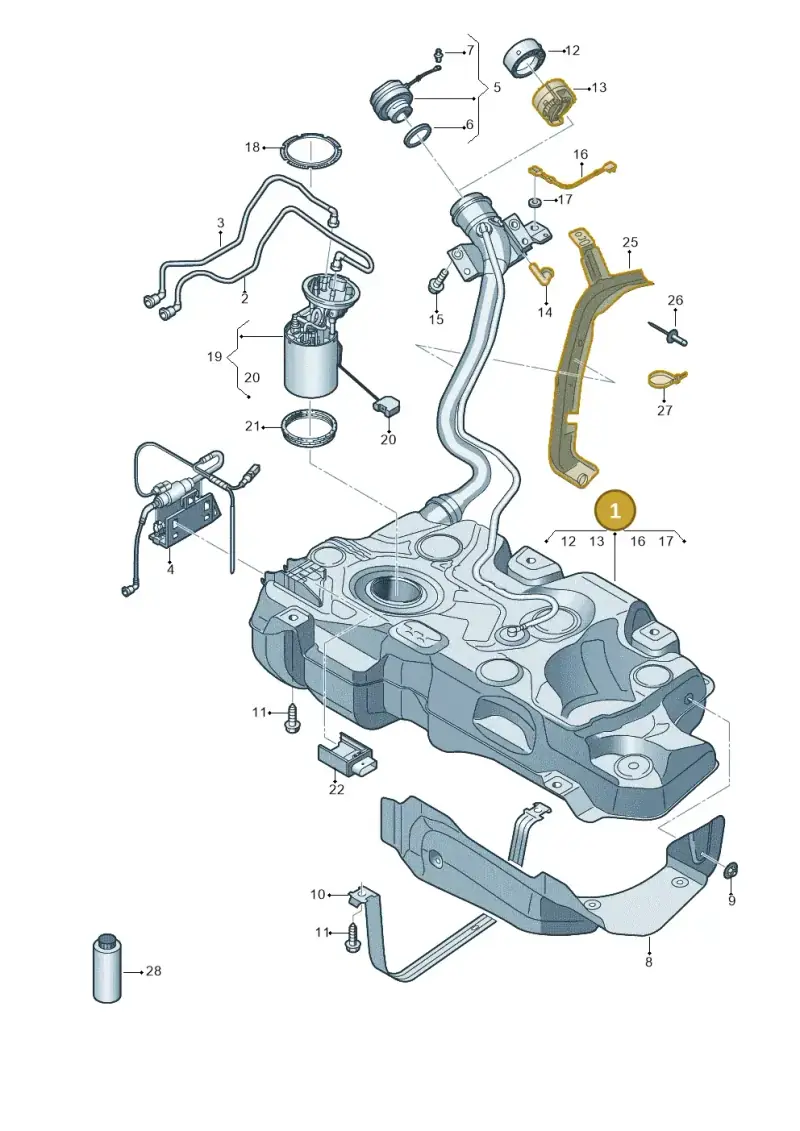

Number 1 marks the part’s position in the exploded view (SEAT Leon ST (2016-2020)).
Product overview
Genuine OEM Volkswagen Fuel Tank, part number 5Q0201060CK. Fits SEAT Leon ST (2012). Shown as position 1 in the fuel, exhaust and cooling diagram 746201600. Equipment code: 0N1.
Catalogue entry: CONTAINER.
Fitted with: 5Q0201060BD CONTAINER, 5Q0201060CL CONTAINER, N91068501 panel nut, N90994403 BOLT, N90693804 BOLT, 1K0201375 Union nut.
Technical details
- Category
- Fuel System
- Diagram sheet
- SEAT 746201600, position 1
- ETKA group
- 2 / 01 (201)
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- 0N1
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
6 vehiclesFuel Tank — locate 5Q0201060CK Volkswagen Fuel Tank in the official exploded view and explore the surrounding assembly.
This part is marked discontinued by the manufacturer (since 2023-09-01); contact us to check current availability.
Parts in this assembly22
- 1Container 5Q0201060BD
- 1Container 5Q0201060CL
- 2Fuel Line 5Q0201294G
- 3Fuel Line 5Q0201293R
- 5Ap&cap With Retaining Strap For Fuel Tank Cap 5Q0201550G
- 5Ap&cap With Retaining Strap For Fuel Tank Cap 5Q0201550P
- 5Part 3AA201550M
- 6Seal Ring 1K0201557A
- 7Clip 1J0201250
- 8Heat Sh 5Q0201307N
- 8Heat Sh 5Q0201307P
- 8Heat Sh 5Q0201307L
- 9Part N91068501
- 10Strap 5Q0201656F
- 11Bolt N90994403
- 12Ring 4H0201115A
- 13Ins Piece 4H0201112A
- 14End Piece 895201890
- 15Bolt N90693804
- 16Line 1J0201142A
- 17Bush 1J0201048C
- 18Part 1K0201375
Vehicle fitment table6
Europe (6)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Octavia | 2017-2020 | 1 | 1 | 1E0 | |
| Audi A3 Sportback | 2016-2020 | 1 | 1 | DK5 | |
| Leon ST Stylance | 2016-2020 | 1 | 1 | PR:1E0 | |
| Golf 1.4 BlueMotion | 2014-2017 | 1 | 1 | ||
| Golf Estate 1.4 | 2014-2017 | 1 | 1 | ||
| Leon ST Stylance | 2012-2016 | 1 | 1 | 0N1 |
The manufacturer’s catalogue lists this part number as fitted until 30 July 2018; later builds may use a superseding number.
Diagrams & fitment data powered by oemdiagrams.com
5Q0201060CK Volkswagen Fuel Tank is fitted on: Octavia 2017-2020; Audi A3 Sportback 2016-2020; Leon ST Stylance 2016-2020; Golf 1.4 BlueMotion 2014-2017; Golf Estate 1.4 2014-2017; Leon ST Stylance 2012-2016.
