5Q0201307L Heat Sh
- 5Q0201307Not stocked
Sep 2012 - 5Q0201307LThis pageNot stocked
Nov 2018 - 5Q0201307NNot stocked
Jun 2016 - 5Q0201307PCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

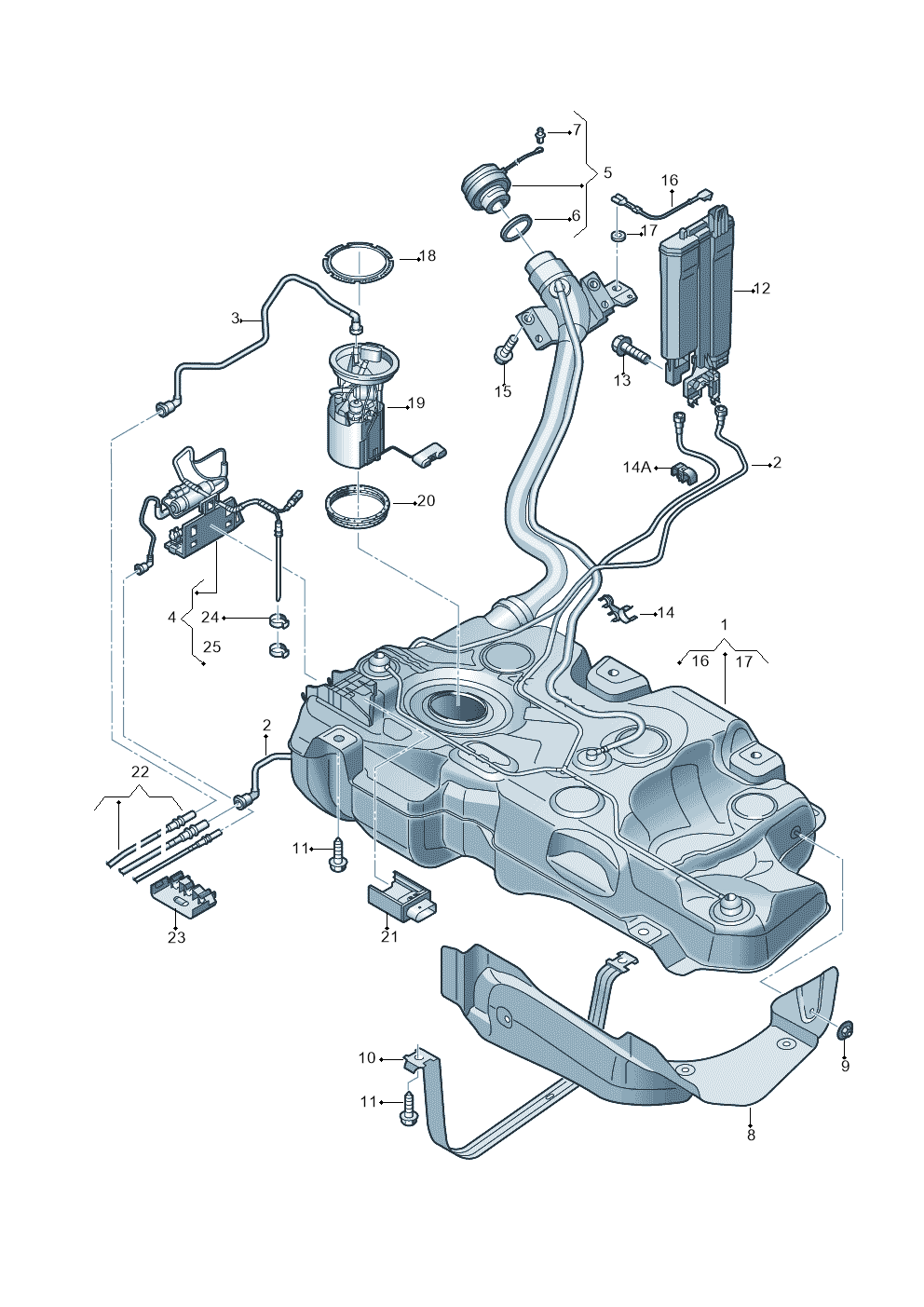

4 vehiclesHeat Sh — locate Heat Sh in the official exploded view and explore the surrounding assembly.
Parts in this assembly38
- 1Fuel Tank 5Q0201060BH
- 1Fuel Tank 5Q0201060CR
- 1Fuel Tank 5Q0201060AT
- 1Fuel Tank 5Q0201060BB
- 1Fuel Tank 5Q0201060CH
- 1Fuel Tank 5Q0201060DB
- 2Line 5Q0201160F
- 2Line 5Q0201160P
- 3Fuel Line 5Q0201293AG
- 3Fuel Line 5Q0201293B
- 3Fuel Line 5Q0201293R
- 4Part 5Q0201607J
- 4Part 5Q0201607K
- 5Part 5Q0201550AA
- 5Part 5Q0201550B
- 5Part 5Q0201550J
- 5Part 5Q0201550M
- 6Seal Ring 1K0201557A
- 7Clip 1J0201250
- 8Heat Sh 5Q0201307P
- 8Heat Sh 5Q0201307N
- 9Part N91068501
- 10Strap 5Q0201656F
- 11Bolt N91229601
- 12Container 5Q0201801
- 13Bolt N10240003
- 14Clip 5Q0201250C
- 14Clip 5Q0201250G
- 14Clip 5Q0201278A
- 14Clip 5Q0201250B
- 14AClip 5Q0201449A
- 14AClip 1H0201449C
- 15Bolt N90693804
- 16Line 1J0201142A
- 17Bush 1J0201048C
- 18Part 1K0201375
- 24Clamp N10203501
- 25Clamp N10198301
Vehicle fitment table4
Europe (4)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Golf 1.4 BlueMotion | 2012-2017 | 8 | 1 | PR:1A1,1A5, | |
| Octavia | 2012-2017 | 8 | 1 | ||
| Audi A3 Sportback | 2012-2016 | 8 | 1 | PR:1A5,1A7 | 1A5 |
| Leon ST Stylance | 2012-2016 | 8 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Heat Sh is fitted on: Golf 1.4 BlueMotion 2012-2017; Octavia 2012-2017; Audi A3 Sportback 2012-2016; Leon ST Stylance 2012-2016.
