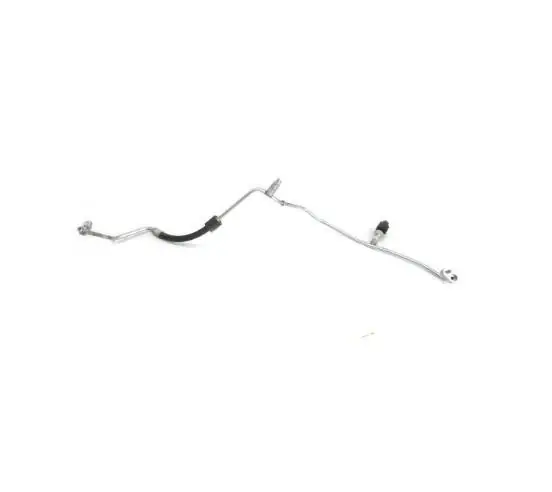

Genuine OEM Volkswagen A/C Refrigerant Line, part number 5Q0816741B. This critical component is responsible for transporting refrigerant fluid throughout the vehicle's air conditioning system, enabling efficient heat exchange and cabin cooling. The line is constructed to withstand high pressures and temperature fluctuations inherent in the A/C cycle. Weighing 0.258 kg, this genuine OEM line ensures correct routing geometry and material integrity, preventing leaks and maintaining optimal system performance.
Catalogue entry: LINE; (A/C condenser >.
Fitted with: 5Q0820741B LINE, 5Q0820741C LINE, 5Q0820741L LINE, 5Q0816741C LINE, 5Q0816741K LINE, N10347103 BOLT, 4D0260749B seal ring, N01508210 COLLAR NUT.
Technical details
- Category
- Heating & A/C
- Customs (HS) code
- 84159000
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 68 × 29 × 17.5 cm
- Shipping weight
- 0.26 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- G1C
- G1D
- KK3
- TJ4
- DS9
- TJ7
- 1D0
- TJ1
- TC5
- 0ED
- 8Z4
- 8Z5
- T6M
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment

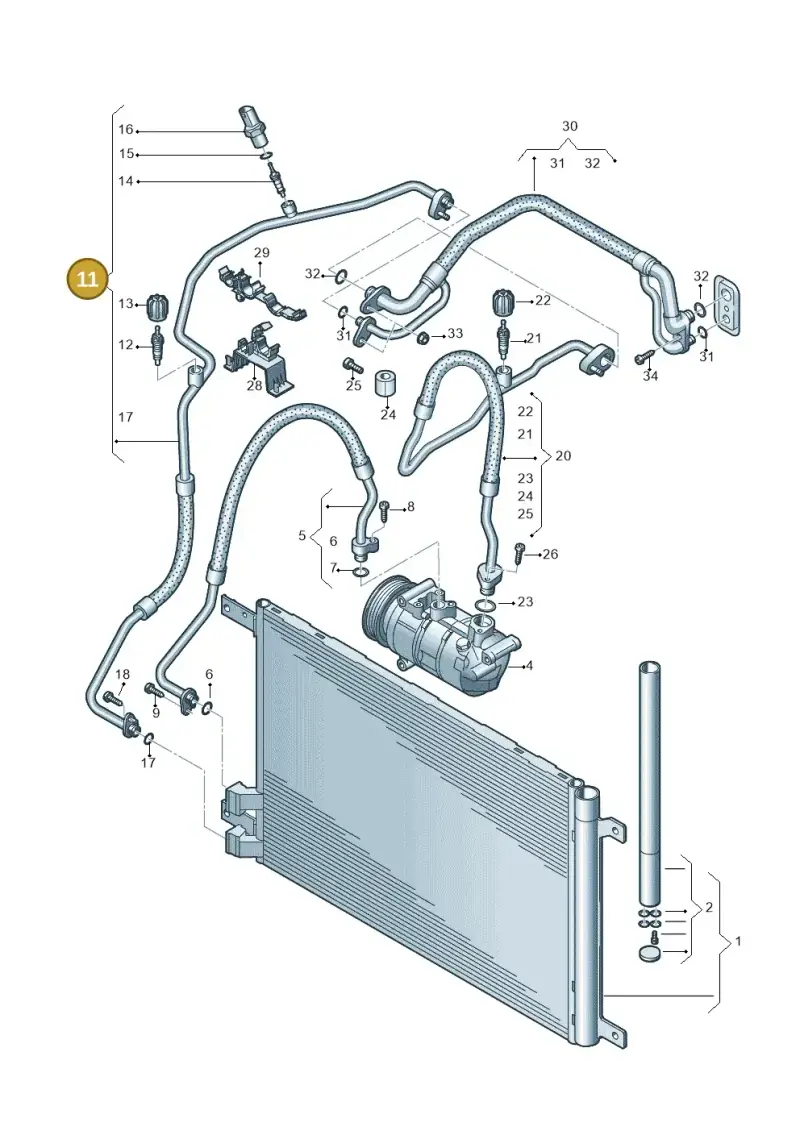

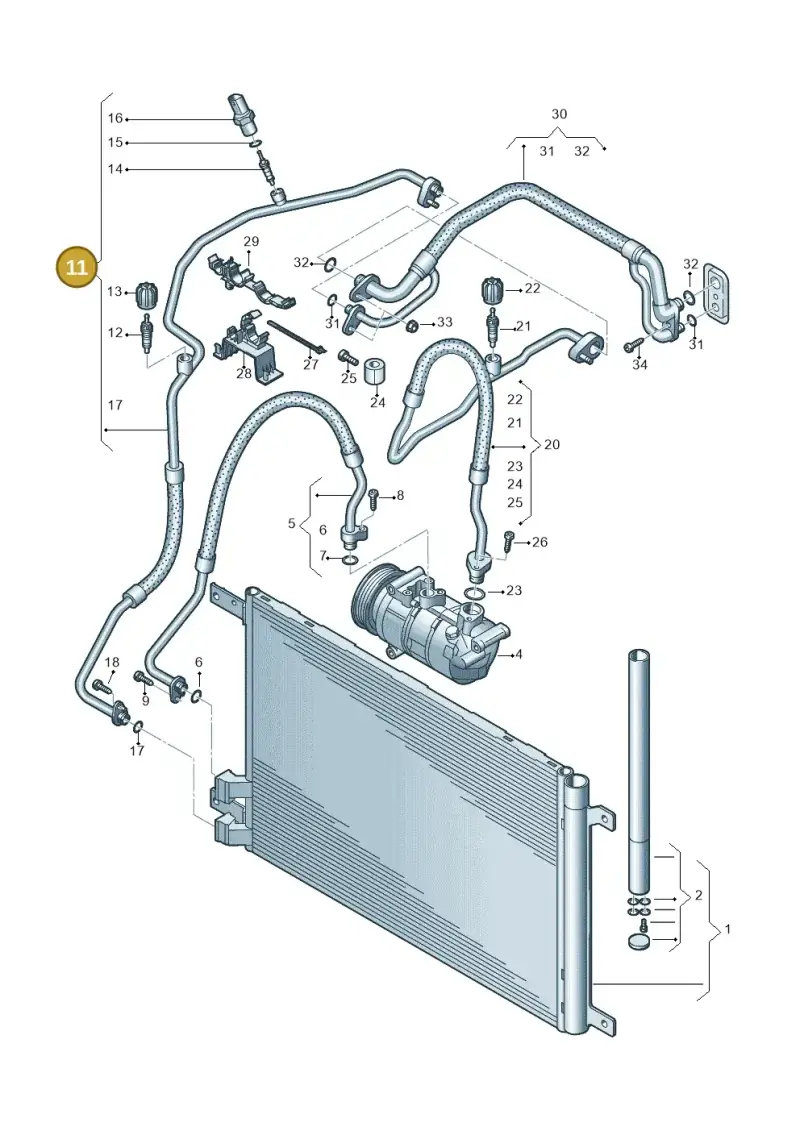

24 vehiclesRefrigerant Line — locate 5Q0816741B Volkswagen A/C Refrigerant Line | HVAC in the official exploded view and explore the surrounding assembly.
