5Q1614723B Brake Pipe From Hydraulics To Brake Hose
- 5Q1614723ANot stocked
May 2012 - 5Q1614723BThis pageNot stocked
May 2014 - 5Q1614723CSuperseded
Jul 2016 - 5Q1614723DCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 3–8 business days before dispatch.
Handling time for Skoda: 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

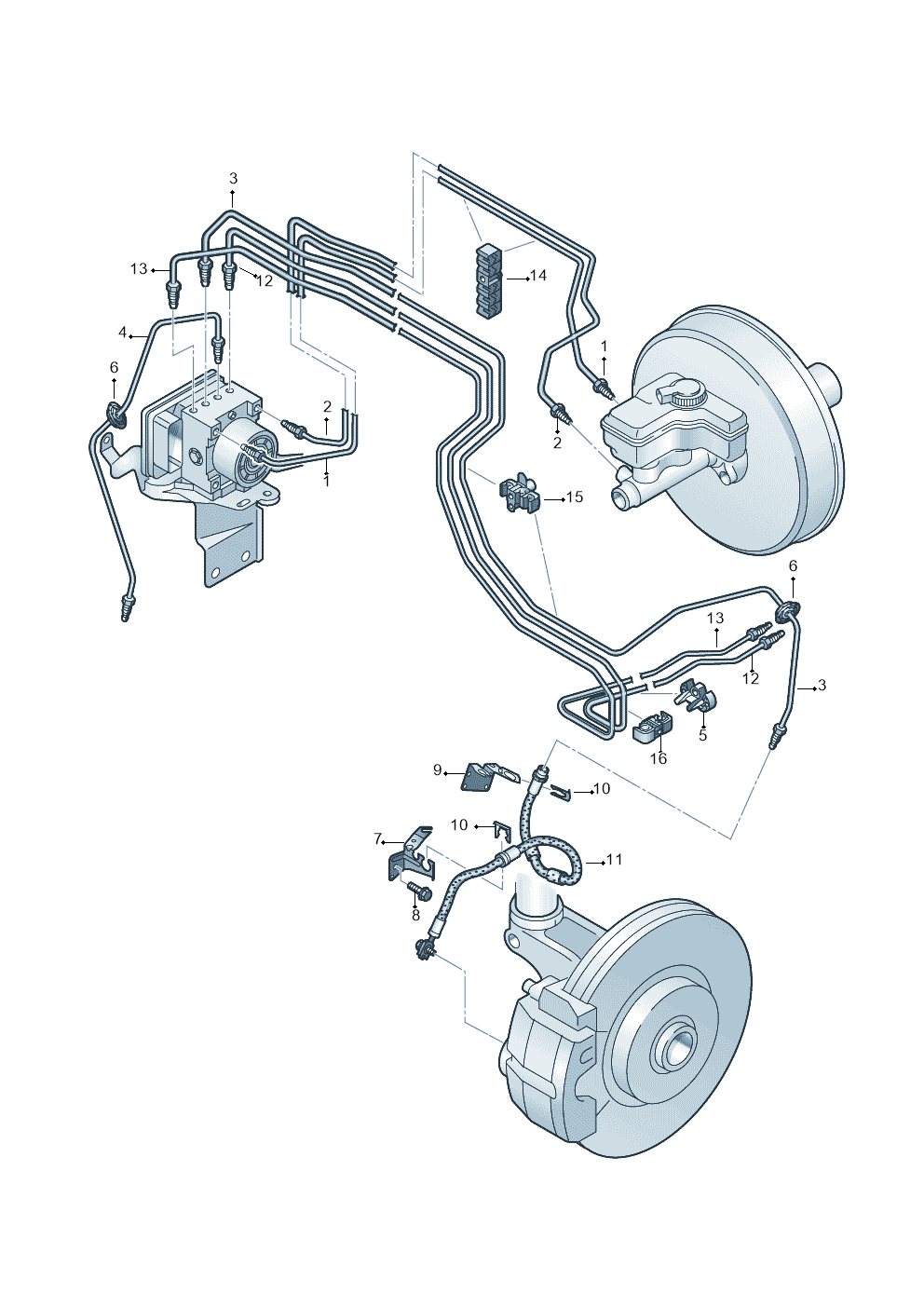

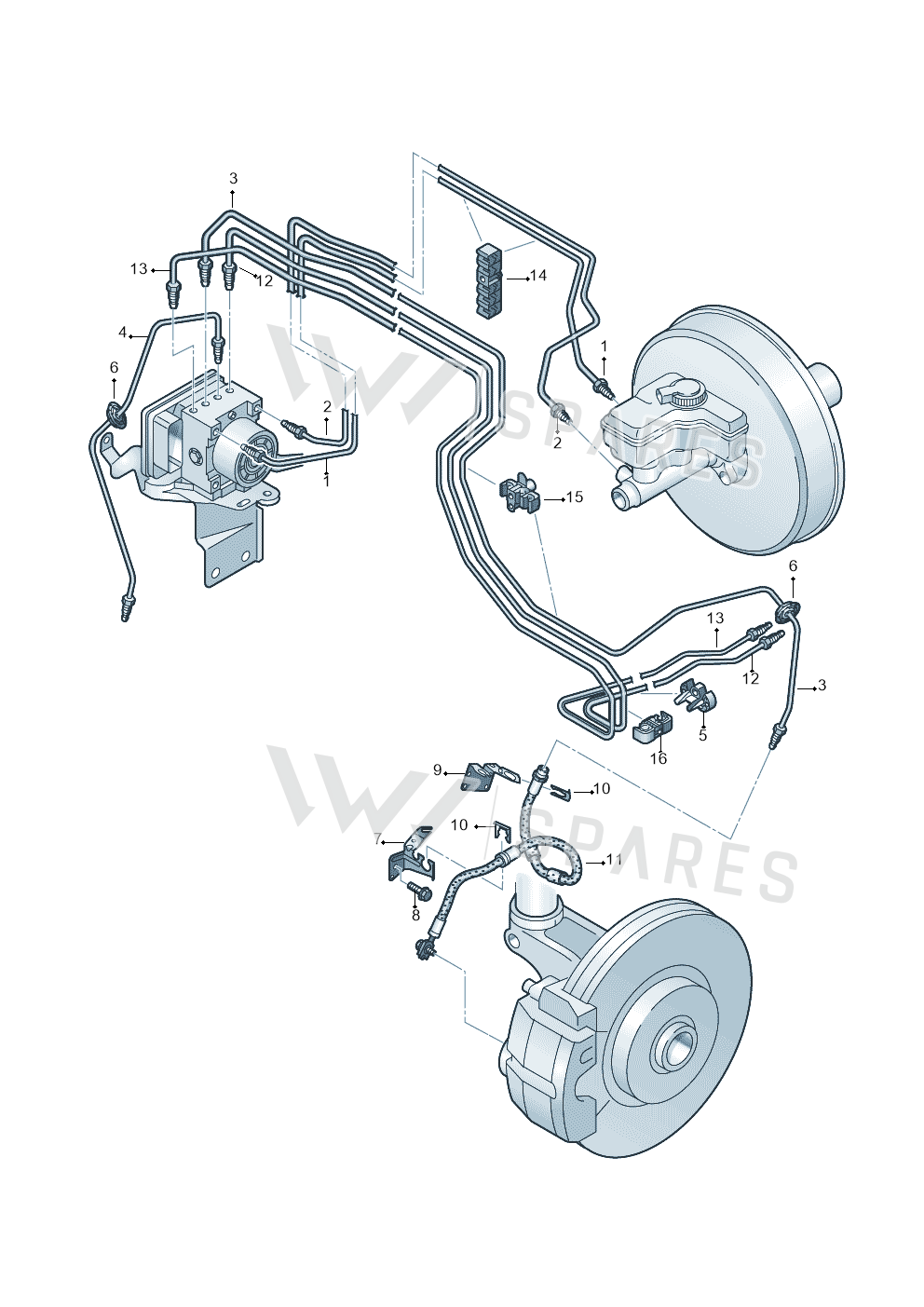

8 vehiclesBrake Pipe From Hydraulics To Brake Hose — locate Brake Pipe From Hydraulics To Brake Hose in the official exploded view and explore the surrounding assembly.
Parts in this assembly36
- 1Brake Pipe 5Q2614739D
- 1Brake Pipe 5Q1614739D
- 1Brake Pipe 5Q1614739E
- 1Brake Pipe 5Q1614739F
- 2Brake Pipe 5Q2614740B
- 2Brake Pipe 5Q2614740C
- 2Brake Pipe 5Q1614740B
- 2Brake Pipe 5Q1614740C
- 3Brake PipeLeft5Q2614723B
- 3Brake PipeLeft5Q2614723C
- 3Brake PipeLeft5Q1614723C
- 3Brake PipeLeft5Q1614723D
- 4Brake PipeRight5Q2614724
- 4Brake PipeRight5Q1614724
- 4Brake PipeRight5Q1614724A
- 5Bracket 1K0611853
- 6Grommet 1K0611751
- 7RetainerRight5Q0611842B
- 7RetainerLeft5Q0611841A
- 8Screw N10703001
- 9RetainerRight5Q0611846B
- 9RetainerLeft5Q0611845B
- 10Bracket 191611715
- 11Brake Hose 5Q0611701C
- 12Brake PipeLeft5Q1614725AD
- 12Brake PipeLeft5Q1614725R
- 12Brake PipeLeft5Q2614725AA
- 12Brake PipeLeft5Q2614725M
- 12Brake PipeLeft5Q1614725J
- 13Brake PipeRight5Q1614726F
- 13Brake PipeRight5Q1614726N
- 13Brake PipeRight5Q2614726J
- 13Brake PipeRight5Q1614726C
- 14Bracket 5Q0611797A
- 15Bracket 5Q0611797E
- 16Clip 6R0611797D
Vehicle fitment table8
Europe (7)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Golf 1.4 BlueMotion | 2014-2017 | 3 | 1 | |
| Golf Estate | 2013-2017 | 3 | 1 | L0L |
| Audi A3 Cab. 1.4 | 2013-2016 | 3 | 1 | D |
| Golf 1.4 BlueMotion | 2012-2017 | 3 | 1 | L0L |
| Octavia | 2012-2017 | 3 | 1 | L0L |
| Audi A3 Sportback | 2012-2016 | 3 | 1 | D |
| Leon ST Stylance | 2012-2016 | 3 | 1 | L0L |
Other markets (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| golf 1.4 | 2013-2020 | 3 | 1 | L0L |
Diagrams & fitment data powered by oemdiagrams.com
Brake Pipe From Hydraulics To Brake Hose is fitted on: Golf 1.4 BlueMotion 2014-2017; Golf Estate 2013-2017; Audi A3 Cab. 1.4 2013-2016; Golf 1.4 BlueMotion 2012-2017; Octavia 2012-2017; Audi A3 Sportback 2012-2016; Leon ST Stylance 2012-2016; golf 1.4 2013-2020.
