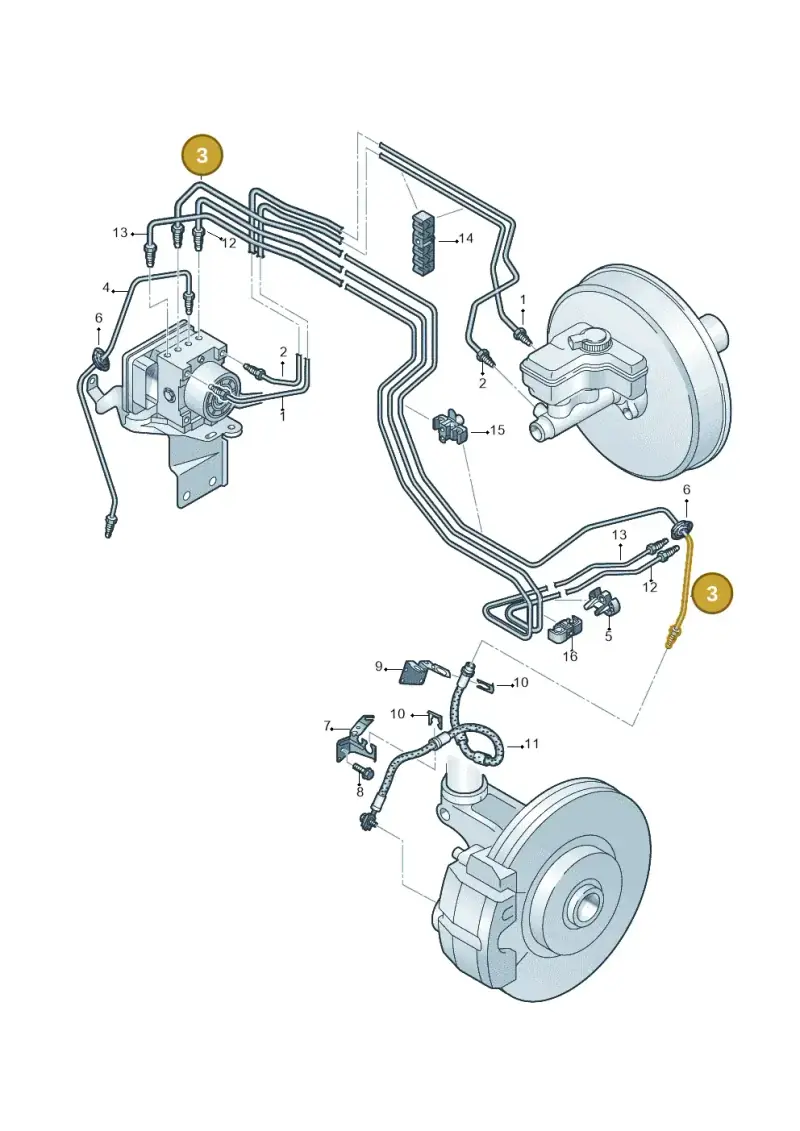

Number 3 marks the part’s position in the exploded view.
Product overview
Genuine OEM Skoda Brake Line, part number 5Q1614723C. This brake line transmits hydraulic pressure to activate the braking system. It is located on the left side. The part has a length of 0.945 meters. Genuine OEM brake lines are manufactured to exact specifications to ensure proper hydraulic pressure transfer and reliable braking.
Catalogue entry: BRAKE PIPE left.
Technical details
- Category
- Brakes
- Country of origin
- Czech Republic
- Customs (HS) code
- 87083091
- Manufacturer
- Skoda
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 94.5 × 25 × 6.5 cm
- Shipping weight
- 0.14 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- L0L
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
13 vehiclesBrake Pipe From Hydraulics To Brake Hose — locate 5Q1614723C Skoda Brake Line | Left in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Superseded by 5Q1614723D — the later replacement part.
This part is marked discontinued by the manufacturer (since 2016-07-01); contact us to check current availability.
Parts in this assembly35
- 1Brake PipeRight5Q2614739D
- 1Brake PipeLeft5Q1614739D
- 1Brake PipeLeft5Q1614739E
- 1Brake PipeLeft5Q1614739F
- 2Brake PipeRight5Q2614740B
- 2Brake PipeRight5Q2614740C
- 2Brake PipeLeft5Q1614740B
- 2Brake PipeLeft5Q1614740C
- 3Brake PipeRight5Q2614723B
- 3Brake PipeRight5Q2614723C
- 3Brake PipeLeft5Q1614723D
- 4Brake PipeRight5Q2614724
- 4Brake PipeLeft5Q1614724
- 4Brake PipeLeft5Q1614724A
- 5Bracket 1K0611853
- 6Grommet 1K0611751
- 7RetainerRight5Q0611842B
- 7RetainerLeft5Q0611841A
- 8Screw N10703001
- 9RetainerRight5Q0611846B
- 9RetainerLeft5Q0611845B
- 10Bracket 191611715
- 11Brake Hose 5Q0611701C
- 12Brake PipeLeft5Q1614725AD
- 12Brake PipeLeft5Q1614725R
- 12Brake PipeRight5Q2614725AA
- 12Brake PipeRight5Q2614725M
- 12Brake PipeLeft5Q1614725J
- 13Brake PipeLeft5Q1614726F
- 13Brake PipeLeft5Q1614726N
- 13Brake PipeRight5Q2614726J
- 13Brake PipeLeft5Q1614726C
- 14Bracket 5Q0611797A
- 15Bracket 5Q0611797E
- 16Clip 6R0611797D
Vehicle fitment table13
Europe (12)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Superb Combi | 2015-2024 | 3 | 1 | D |
| golf 1.6 | 2015-2019 | 3 | 1 | |
| Audi RS3 Sportback | 2015-2016 | 3 | 1 | L0L |
| Passat saloon | 2014-2024 | 3 | 1 | |
| Golf 1.4 BlueMotion | 2014-2017 | 3 | 1 | |
| Golf Estate 1.4 | 2014-2017 | 3 | 1 | |
| Golf Estate | 2013-2017 | 3 | 1 | L0L |
| Audi A3 Cab. 1.4 | 2013-2016 | 3 | 1 | |
| Golf 1.4 BlueMotion | 2012-2017 | 3 | 1 | D |
| Octavia | 2012-2017 | 3 | 1 | L0L |
| Audi A3 Sportback | 2012-2016 | 3 | 1 | |
| Leon ST Stylance | 2012-2016 | 3 | 1 | D |
Other markets (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Audi A3 Limousine 2.0 | 2015-2016 | 3 | 1 | D |
The manufacturer’s catalogue lists this part number as fitted until 30 May 2016; later builds may use a superseding number.
Diagrams & fitment data powered by oemdiagrams.com
5Q1614723C Skoda Brake Line | Left is fitted on: Superb Combi 2015-2024; golf 1.6 2015-2019; Audi RS3 Sportback 2015-2016; Passat saloon 2014-2024; Golf 1.4 BlueMotion 2014-2017; Golf Estate 1.4 2014-2017; Golf Estate 2013-2017; Audi A3 Cab. 1.4 2013-2016; Golf 1.4 BlueMotion 2012-2017; Octavia 2012-2017; Audi A3 Sportback 2012-2016; Leon ST Stylance 2012-2016; Audi A3 Limousine 2.0 2015-2016.
