5Q2820102A Evaporator With Expansion Valve
- 5Q2820102AThis pageNot stocked
Apr 2016 - 5Q2820102BNot stocked
Dec 2014 - 5Q2820102DNot stocked
Apr 2017 - 5Q2816100ANot stocked
Aug 2020 - V04018002BSuperseded
Jun 2024 - 5WC816103ACurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

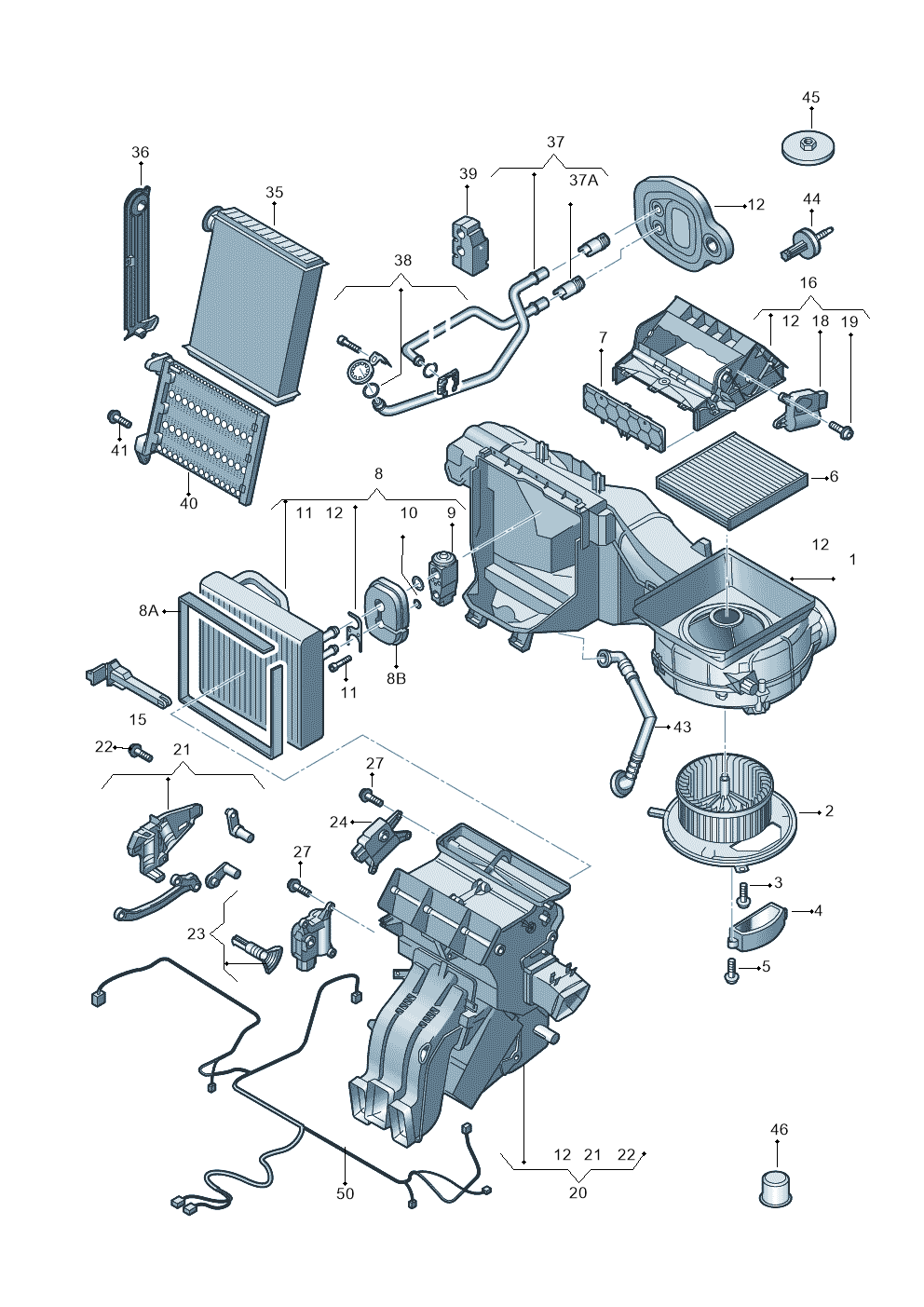

4 vehiclesEvaporator With Expansion Valve — locate Evaporator With Expansion Valve in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Housing 5Q2820007A
- 1Housing 5Q1820007A
- 2Blower 5Q2819021B
- 2Blower 5Q1819021B
- 3Screw N10424102
- 4Regulator 5Q0907521A
- 6Filter 5Q0819644
- 6Filter 5Q0819644A
- 6Part 5Q0819653
- 7Cover 5Q0819422A
- 8Part 5EF820102
- 8Evaporator 5Q1816100A
- 8Evaporator 5Q1820102B
- 8Evaporator 5Q1820102D
- 8Evaporator 5Q2816100A
- 8Evaporator 5Q2820102B
- 8Evaporator 5Q2820102D
- 8Evaporator 5Q1820102A
- 8ASeal 5Q0820061B
- 8BSeal 5Q0820061A
- 9Expans Val 5Q0816679B
- 9Expans Val 5Q0820679C
- 9Expans Val 5Q0820679
- 10Seals 5Q0898850A
- 11Bolt N90967701
- 12Seal 5Q0820061C
- 15Temperature Sensor 5Q0907543A
- 16Int Duct 5Q0898304B
- 18Motor 5Q0907511
- 19Screw N10424101
- 20Housing 5Q1820353G
- 20Housing 5Q2820353F
- 20Housing 5Q2820353G
- 20Housing 5Q1820353F
- 21Adjuster 5Q0898141D
- 23PartLeft5Q0898511G
- 23PartLeft5Q0898511B
- 24Servomotor 5Q0907511L
- 24Servomotor 5Q0907511A
- 35Heat Exch 5Q0819031
- 36Cover 5Q0819422B
- 37Water Pipe 5Q2819857A
- 37Water Pipe 5Q1819857A
- 37ACoupl Piece 5Q0819454
- 38Fixing Set 5Q0898400A
- 39Insulation 5Q2820577
- 39Insulation 5Q1820577
- 40Heat Element 5Q0963235B
Vehicle fitment table4
Europe (4)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Octavia | 2012-2017 | 8 | 1 | D |
| Golf 1.4 BlueMotion | 2012-2017 | 8 | 1 | D |
| Audi A3 Sportback | 2012-2016 | 15 | 1 | |
| Leon ST Stylance | 2012-2016 | 15 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Evaporator With Expansion Valve is fitted on: Octavia 2012-2017; Golf 1.4 BlueMotion 2012-2017; Audi A3 Sportback 2012-2016; Leon ST Stylance 2012-2016.
