5Q2820102B Evaporator With Expansion Valve
- 5Q2820102ANot stocked
Apr 2016 - 5Q2820102BThis pageNot stocked
Dec 2014 - 5Q2820102DNot stocked
Apr 2017 - 5Q2816100ANot stocked
Aug 2020 - V04018002BSuperseded
Jun 2024 - 5WC816103ACurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 3–8 business days before dispatch.
Handling time for Skoda: 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

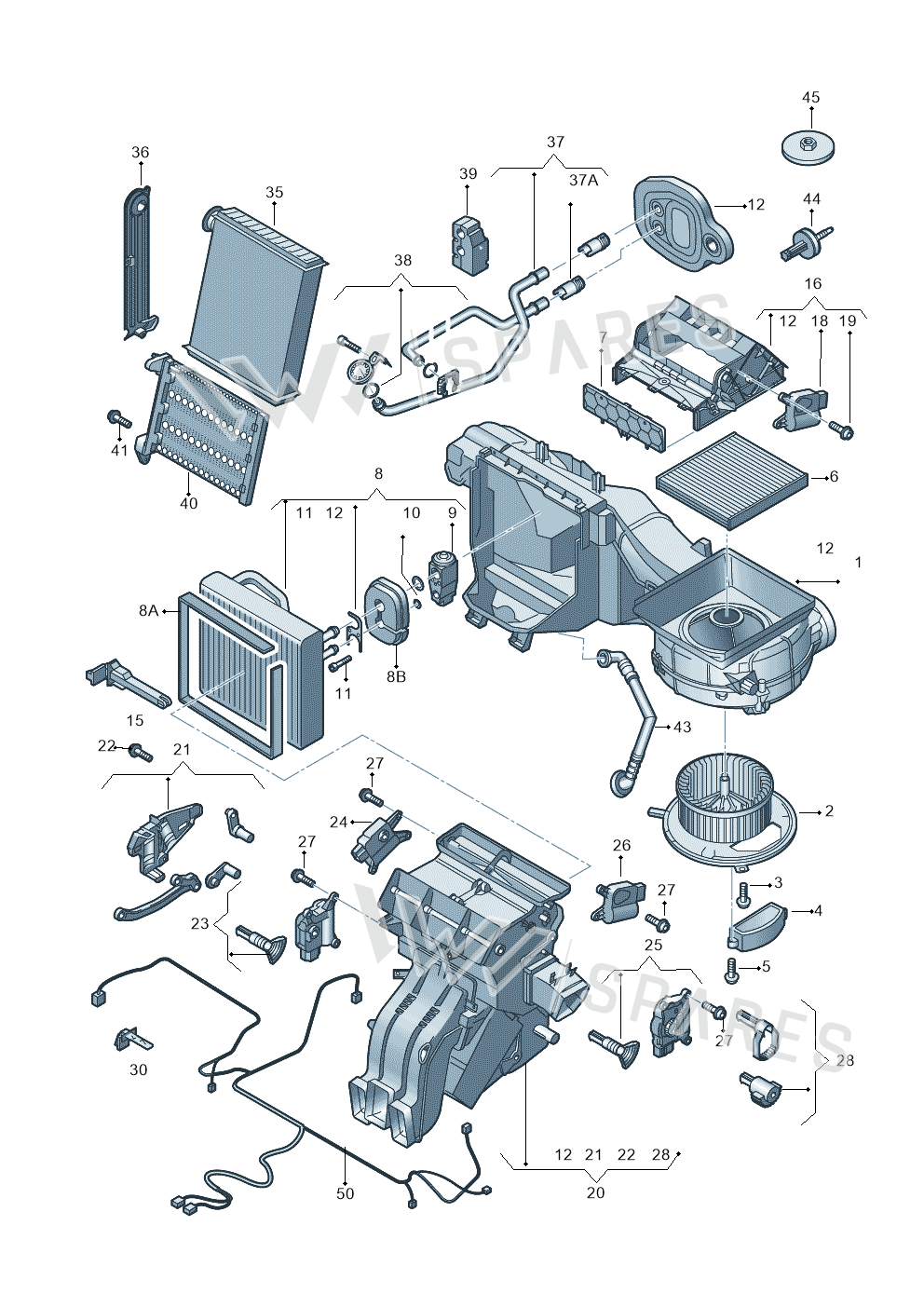

8 vehiclesEvaporator With Expansion Valve — locate Evaporator With Expansion Valve in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Housing 5Q2820007B
- 1Housing 5Q2820007D
- 1Housing 5Q1820007B
- 1Housing 5Q1820007D
- 2Blower 5Q2819021B
- 2Blower 5Q1819021B
- 3Screw N10424102
- 4Control Unit 5Q0907521C
- 6Filter 5Q0819644A
- 6Dust Filt 5Q0819653
- 6Od Filter 5Q0819669
- 6Part JZW819653G
- 7Cover 5Q0819422A
- 8Evaporator 5Q2816100A
- 8Evaporator 5Q2820102D
- 8Evaporator 5Q1816100A
- 8Evaporator 5Q1820102D
- 8ASeal 5Q0820061B
- 8BSeal 5Q0820061A
- 9Expans Val 5Q0816679B
- 9Expans Val 5Q0820679C
- 10Seals 5Q0898850A
- 11Bolt N90967701
- 12Seal 5Q0820061C
- 15Temperature Sensor 5Q0907543A
- 16Int Duct 5Q1898304B
- 16Int Duct 5Q2898304
- 16Int Duct 5Q2898304B
- 16Int Duct 5Q1898304
- 18Servomotor 5Q0907511L
- 18Servomotor 5Q0907511A
- 20Housing 5Q1820353J
- 20Housing 5Q2820353H
- 20Housing 5Q2820353J
- 20Housing 5Q1820353H
- 21Adjuster 3Q0898141B
- 23PartLeft5Q0898511G
- 23PartLeft5Q0898511B
- 25PartRight5Q0898511F
- 25PartRight5Q0898511D
- 26Servomotor 5Q0907511K
- 26Servomotor 5Q0907511D
- 28Lever 5Q0898001A
- 30Temperature Sensor 5Q0907543
- 35Heat Exch 5Q0819031
- 36Cover 5Q0819422B
- 37Water Pipe 5Q2819857A
- 37Water Pipe 5Q1819857A
Vehicle fitment table8
Europe (8)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| e-Golf | 2014-2021 | 8 | 1 | L0R |
| Golf Sportsvan 1.6 | 2014-2020 | 8 | 1 | L0R |
| Golf Estate | 2013-2017 | 8 | 1 | L0R |
| Audi A3 Cab. 1.4 | 2013-2016 | 15 | 1 | D |
| Golf 1.4 BlueMotion | 2012-2017 | 8 | 1 | L0R |
| Octavia | 2012-2017 | 8 | 1 | |
| Audi A3 Sportback | 2012-2016 | 15 | 1 | |
| Leon ST Stylance | 2012-2016 | 15 | 1 | KH6,L0R |
Diagrams & fitment data powered by oemdiagrams.com
Evaporator With Expansion Valve is fitted on: e-Golf 2014-2021; Golf Sportsvan 1.6 2014-2020; Golf Estate 2013-2017; Audi A3 Cab. 1.4 2013-2016; Golf 1.4 BlueMotion 2012-2017; Octavia 2012-2017; Audi A3 Sportback 2012-2016; Leon ST Stylance 2012-2016.
