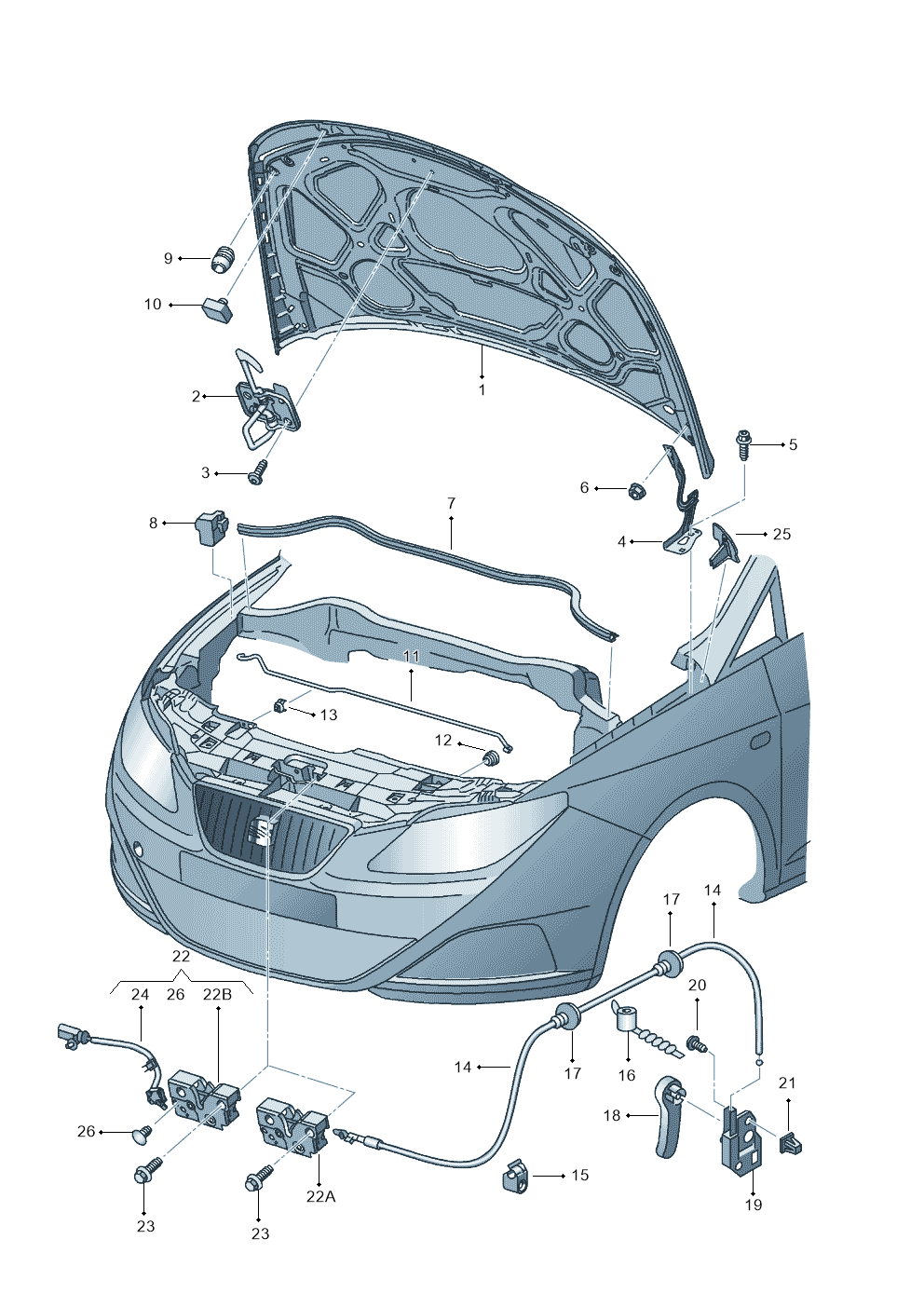

Bonnet Lock-Lower Part exploded parts diagram — Ibiza Reference · 2011-2012, position 22A — Ibiza Reference · 2011-2012 · position 22AFull diagram ↓

5U0823509B

5U0823509B Bonnet Lock-Lower Part

Name: 5U0823509B Bonnet Lock-Lower Part
Brand: SEAT
SKU: 5U0823509B
Price: 31.45 GBP
Availability: Discontinued

£31.45

£25.99 excl. VAT

Supersession road8 numbers since 2011

6J0823509
Not stocked Jul 2011
6J0823509A
Not stocked Nov 2011
6J0823509C
Not stocked Nov 2012
5U0823509B
Not stocked May 2011
You are here
5U0823509D
Not stocked Sep 2013
5U0823509H
Superseded Jul 2019
5U0823509N
Current number

6J0823509Not stocked
Jul 2011
6J0823509ANot stocked
Nov 2011
6J0823509CNot stocked
Nov 2012
5U0823509BThis pageNot stocked
May 2011
5U0823509DNot stocked
Sep 2013
5U0823509HSuperseded
Jul 2019
5U0823509NCurrent number

Current part number5U0823509NWhat the manufacturer supplies todayOrder

Availability: No longer supplied under this number

Quantity:

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Genuine OEM Parts

Direct from manufacturer

Secure Ordering

Safe and protected checkout

Parts diagram & fitment

2 vehicles

Bonnet Lock-lower Part — locate Bonnet Lock-Lower Part in the official exploded view and explore the surrounding assembly.

Parts in this assembly30

Vehicle fitment table2

Europe (2)

Vehicle	Years	Pos.	Qty	Remark
Ibiza Reference	2011-2012	22A	1
jetta	2010-2014	9	1	PR:9V0
