6C0820103 Evaporator With Expansion Valve
- 6C0820103This pageNot stocked
Oct 2016 - 6C0816103Current number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

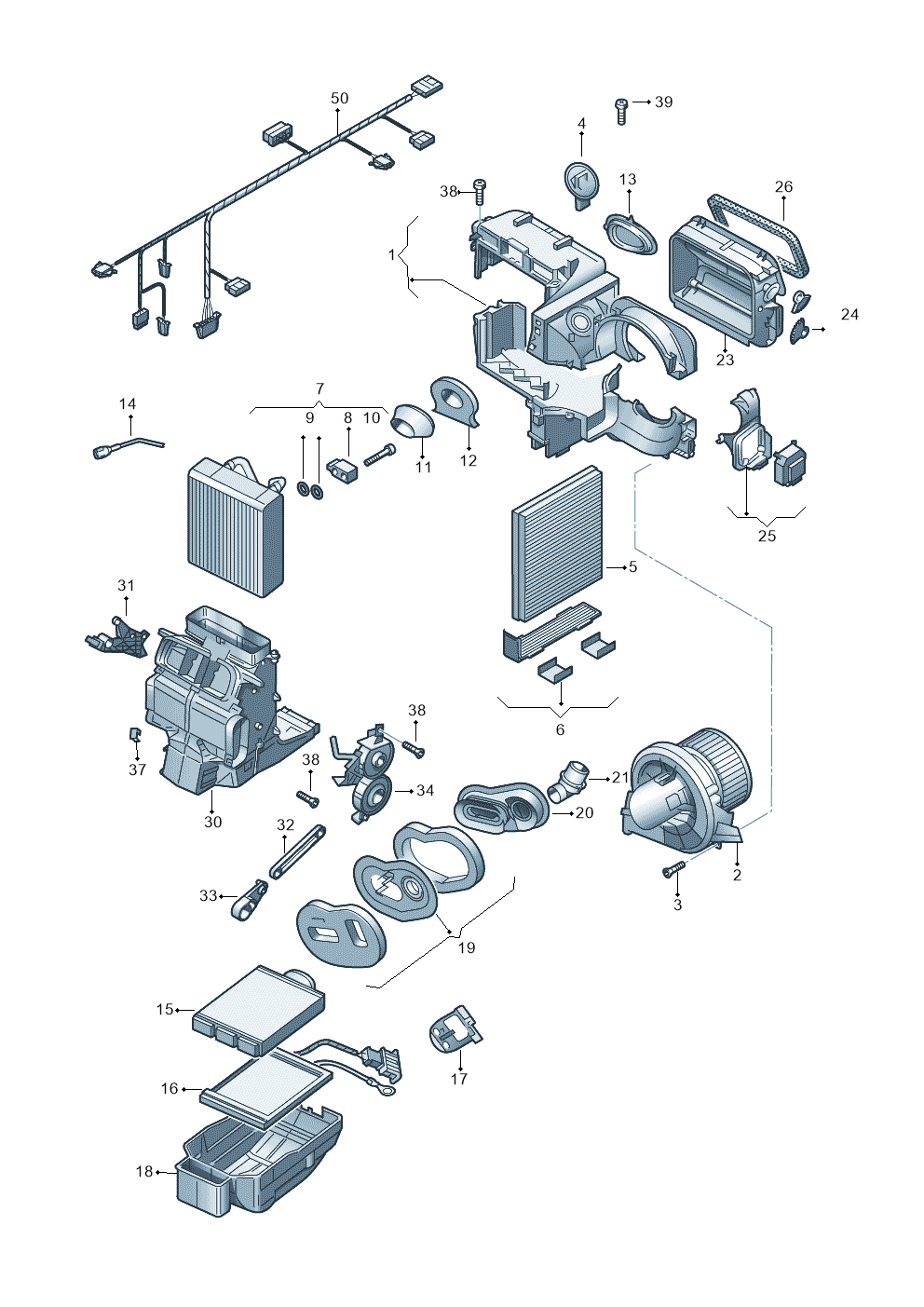

6 vehiclesEvaporator With Expansion Valve — locate Evaporator With Expansion Valve in the official exploded view and explore the surrounding assembly.
Parts in this assembly30
- 1Housing 6Q1820007A
- 2Blower 6R1819015A
- 3Bolt N90732102
- 4Resistance 6Q0959263A
- 5Dust Filt 6R0819653
- 6Cover 6R1819422
- 8Expans Val 6C0820679
- 9Gask Set 8K0820261
- 10Screw N10476301
- 11Seal 6Q0820139
- 12Seal 6Q1820061
- 12Seal 6Q0820061
- 13Grommet 6Q0820751A
- 14Temperature Sensor 6Q0907543F
- 15Heat Exch 6C0819031
- 18Housing 6C0819875
- 19Gask Set 6C1898003
- 20Grommet 6C1820609
- 21Valve 6Q1820120
- 23Int Duct 6Q1819303A
- 24Actuator 8Z1819133
- 25Part 6R1907511A
- 26Seal 6Q0819165A
- 30Housing 6Q1819351A
- 31Element 6Q0819134
- 32Lever 6Q0819493
- 33Lever 6Q0819841
- 34Actuator 6Q0819133
- 37Clip 8D1820245
- 39Bolt N90910102
Vehicle fitment table6
Europe (6)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Ibiza Stylance | 2015- | 7 | 1 | |
| Toledo Reference | 2015-2019 | 20 | 1 | |
| fabia | 2014-2022 | 7 | 1 | |
| Audi A1 Sportback | 2014-2018 | 7 | 1 | D |
| Polo 1.4 BlueMotion | 2014-2017 | 7 | 1 | |
| Rapid | 2012-2022 | 20, 7 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Evaporator With Expansion Valve is fitted on: Ibiza Stylance 2015-; Toledo Reference 2015-2019; fabia 2014-2022; Audi A1 Sportback 2014-2018; Polo 1.4 BlueMotion 2014-2017; Rapid 2012-2022.
