6Q0698525 1 Set: Brake Shoes With Linings
- 6Q0698525This pageNot stocked
Mar 2007 - 6Q0698525ANot stocked
May 2014 - 6Q0698525BNot stocked
Jun 2013 - 6R0698525ASuperseded
Jun 2016 - 6C0698520Superseded
Jan 2022 - 6C0698520ACurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINShipping details
- Shipping weight
- 1.48 kg
- Shipping size (L × W × H)
- 22 × 16.6 × 8.2 cm
- Country of origin
- Slovakia
- Customs (HS) code
- 87083091

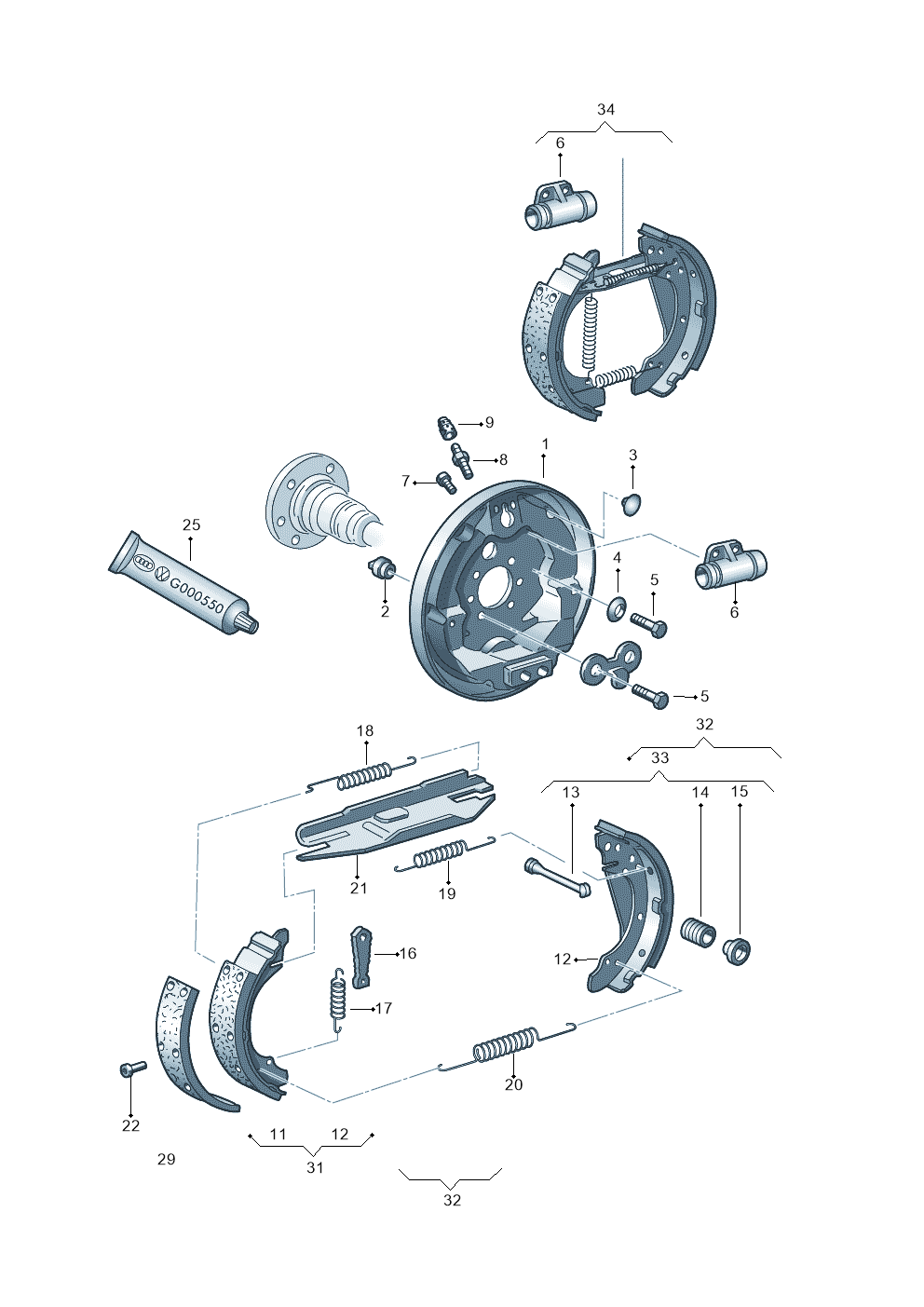

Parts diagram & fitment
4 vehicles1 Set: Brake Shoes With Linings — locate 1 Set: Brake Shoes With Linings in the official exploded view and explore the surrounding assembly.
Parts in this assembly33
- 1Back PlateRight6QE609426
- 1Back PlateLeft5Z0609425
- 2Bungs 171609163
- 3Glidepiece 6N0609589
- 5Bolt N90758902
- 6Brake Cyli 1H0611053
- 6Brake Cyli 6QE611053
- 7Screw N90818301
- 8Valve 3A0611475
- 9Part 211611483
- 11Brake ShoeRight1H0609526D
- 11Brake ShoeLeft6Q0609525A
- 12Brake ShoeRight1H0609528D
- 12Brake ShoeLeft6Q0609527B
- 12Brake ShoeRight6Q0609528A
- 12Brake ShoeLeft1H0609527D
- 13Part WHT001953
- 14Press Spring 171609583A
- 15Springseat 3056097091
- 16Wedge 305609705A
- 17Spring 171609715
- 18Spring 357609707A
- 19SpringRight357609712A
- 19SpringLeft357609711A
- 20Spring 171609717
- 21Push BarRight6QE609820
- 21Push BarLeft6QE609819
- 25Paste G000650
- 31Part JZZ698520
- 31Brake Shoe 1H0698520V
- 31Brake Shoe 1H0698520X
- 32Fixing Set 1H0698545A
- 33Fixing Set 1H0698545B
Vehicle fitment table4
Europe (2)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| CORDOBA 06> | 2005- | 31 | 1 | |
| CORDOBA/SE241 | 2002-2005 | 30 | 1 |
Other markets (2)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| POLO-BRASIL | 2002-2006 | 31 | F 9 | |
| POLO LIM.(SEDAN) "BR" | 2002-2006 | 31 | 1 | 1KB,1KM |
Diagrams & fitment data powered by oemdiagrams.com
1 Set: Brake Shoes With Linings is fitted on: CORDOBA 06> 2005-; CORDOBA/SE241 2002-2005; POLO-BRASIL 2002-2006; POLO LIM.(SEDAN) "BR" 2002-2006.
