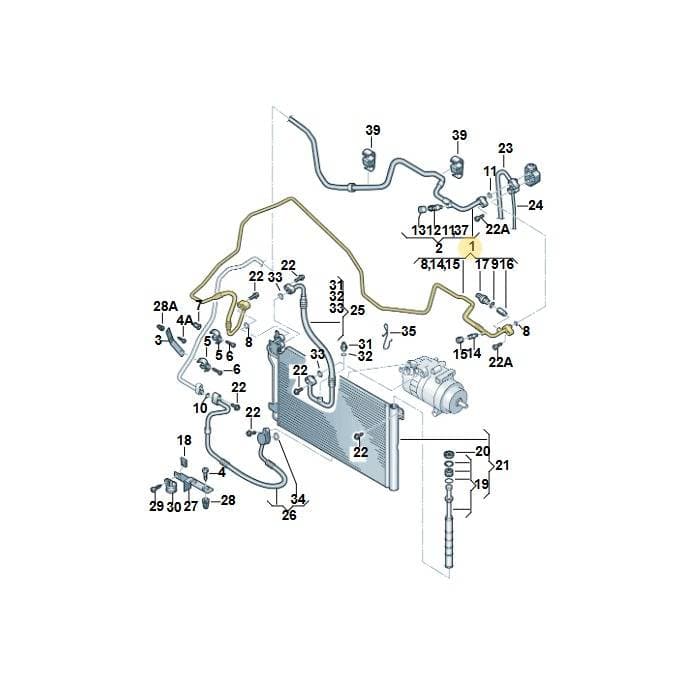

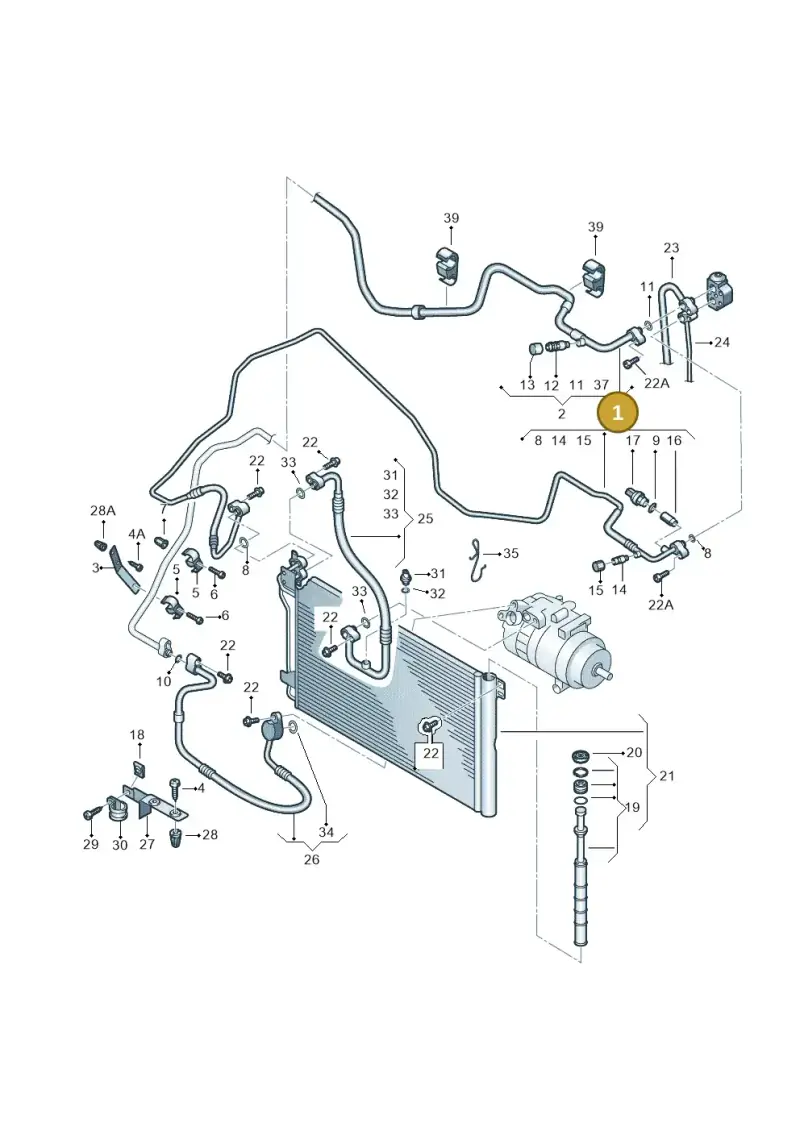

Number 1 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Refrigerant Pipe, part number 7H2820741H. This pipe is designed to carry refrigerant within the vehicle's air conditioning system. It is part of the AC system, indicated as part 1 on the diagram. This part is made of metal and measures approximately 1.22m in length. Genuine OEM refrigerant pipes are manufactured to precise specifications for optimal flow and pressure resistance, ensuring efficient and safe AC operation.
Technical details
- Category
- Heating & A/C
- Customs (HS) code
- 84189990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 122 × 51.5 × 25 cm
- Shipping weight
- 0.49 kg
Parts diagram & fitment
12 vehiclesRefrigerant Pipe — locate 7H2820741H Volkswagen Refrigerant Pipe | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(37)
- 2Part 7H2820743D
- 2Part 7H2820743G
- 3Bracket 7H0820791B
- 4APop Rivet N90437401
- 5Clip 7H0820775A
- 6Screw N10431001
- 7Part N90252104
- 8Seal Ring 3D0260749C
- 9Seal Ring 8E0260749
- 10Seal Ring 4E0260749B
- 11Seal Ring 7H0820898
- 12Valve 8E0820855
- 13Part 3C0820231
- 15Part 3C0820581
- 16Part 7D0820855
- 17Sensor 1K0959126A
- 19Drier 7L0898191A
- 20Part 7L0820231A
- 21Condenser 7H0820411E
- 22Screw N10414402
- 22AScrew N90310002
- 25Hose 7H0820721R
- 25Part 7H0820721AE
- 26Pipe 7H0820744AD
- 26Pipe 7H0820744P
- 27Bracket 7H0820770B
- 28Part 811807577C
- 29Screw N0139771
- 30Clamp N0206474
- 31Temperature Sensor 7L6907543A
- 32Seal Ring 7H0820896
- 33Seal Ring 4E0260749A
- 34Seal Ring 8E0260749C
- 35Bracket 7H0422925G
- 36Bolt N10009104
- 37Seal Ring 7H0820749
- 39Bracket 8E0260759AD
Diagrams & fitment data powered by oemdiagrams.com
7H2820741H Volkswagen Refrigerant Pipe | Genuine OEM is fitted on: CAMPMOBILE(T5) 2004-2006; TRANSPORTER/4MOTION 06 2005-2006; TRANSPORTER 06 2005-2006; TRANSPORTER/4MOTION 07 2006-2007; TRANSPORTER OFFEN (7J) 07 2006-2007; CAMPMOBIL (T5) 07 2006-2007; TRANSPORTER GESCHL. 08 2007-; TRANSPORTER OFFEN 08 2007-; CAMPMOBIL-T5 08 2007-; transp. caravelle 2008-2009; transp. dropside 2008-2009; California Camper 2008-2009.
