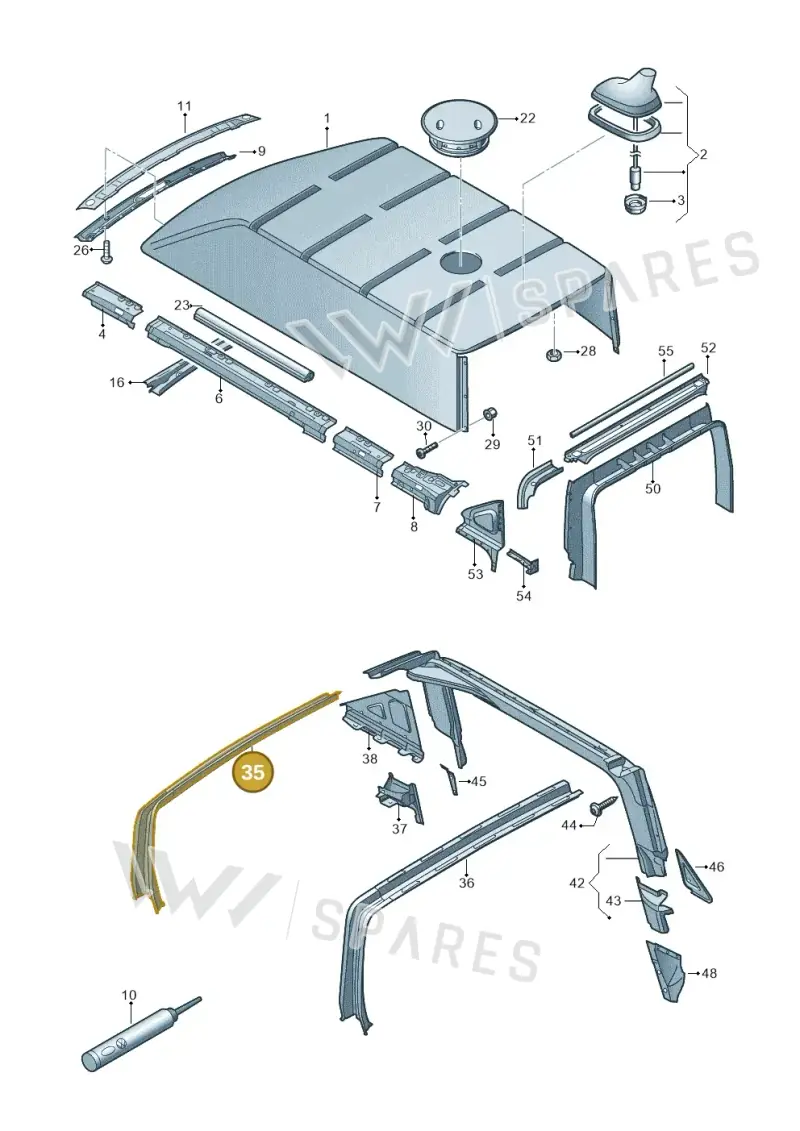

Number 35 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Roof Bow, part number 7H3817331A. This structural element forms the curve of the vehicle's roof, contributing to its overall shape and integrity. It is located at position 35 in the diagram. Genuine OEM parts are manufactured to precise specifications, ensuring the correct fit and structural integrity required for roof components.
Catalogue entry: ROOF BOW; PILLAR B.
Technical details
- Category
- Doors & Windows
- Customs (HS) code
- 87082990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 110 × 53 × 18 cm
- Shipping weight
- 2.11 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- 5R3
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
9 vehiclesRoof Bow — locate 7H3817331A Volkswagen Roof Bow | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly43
- 1Part 7H3817021CK
- 1Part 7H3817021CM
- 1Roof 7LA817021
- 1Roof 7LA817021A
- 2Dummy 1K0035507L
- 3Part WHT007459
- 4Roof FrameRight7H0817316B
- 4Roof FrameLeft7H0817315B
- 6PartLeft7H3817343D
- 6PartRight7H3817344D
- 6PartRight7H3817344K
- 6PartLeft7H3817343K
- 7Roof FrameRight7H3817586C
- 7Roof FrameLeft7H3817585C
- 8PlateRight7H3817624D
- 8PlateLeft7H3817623D
- 9Roof Frame 7E0817123B
- 10Sealant AKD476KD505
- 10Cleaner D00940104
- 101k Adhes D169300M2
- 16Roof Bow 7E0817303
- 23Beading 7H0829397C
- 26Bolt N90897401
- 28Collar Nut N01508315
- 29Part 6L0809864
- 30Bolt N10451409
- 36Part 7H3817319D
- 37Reinforce 7H3817808C
- 38Plate 7H3817238B
- 42Frame 7H3817402D
- 43Reinforce 7H3817824A
- 45Roof Frame 7H3817580B
- 46Plate 7H3817736
- 48Part 7H3817116A
- 50Roof Rack 7H3817149D
- 51ReinforceRight7H3817486A
- 51ReinforceLeft7H3817485A
- 52Roof Rack 7H3817163A
- 53Support ElementRight7H3817412A
- 53Support ElementLeft7H3817411A
- 54Mount BlockRight7H3817188B
- 54Mount BlockLeft7H3817187B
- 55Beading 7H3817601
Vehicle fitment table9
Europe (9)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| caravelle | 2019-2024 | 35 | |||
| caravelle | 2015-2019 | 35 | |||
| transp. caravelle | 2011-2015 | 35 | |||
| transp. caravelle | 2009-2011 | 35 | |||
| transp. caravelle | 2008-2009 | 35 | |||
| TRANSPORTER GESCHL. 08 | 2007- | 35 | |||
| TRANSPORTER/4MOTION 07 | 2006-2007 | 35 | |||
| TRANSPORTER/4MOTION 06 | 2005-2006 | 35 | |||
| TRANSPORTER | 2003-2005 | 35 | 1 | 5R3 |
