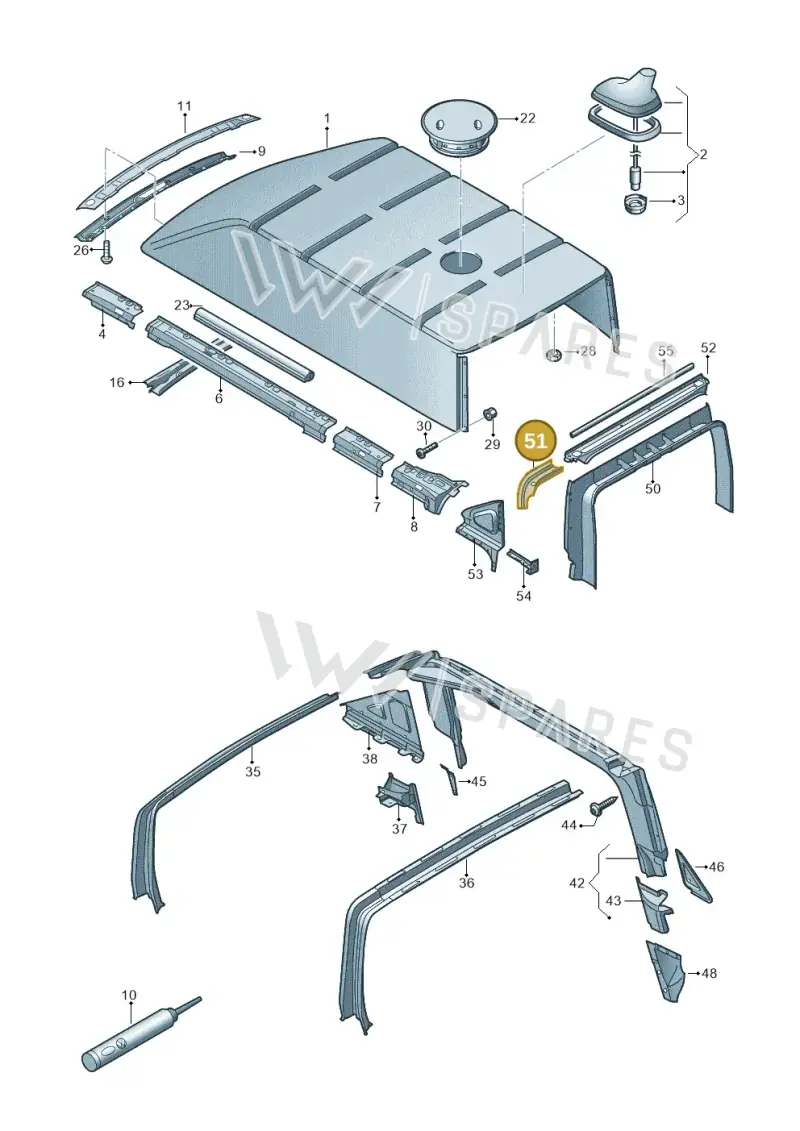

Number 51 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Reinforcement, part number 7H3817486A. This reinforcement piece is a structural component within the vehicle's body. It is located at position 51 in the assembly diagram. The part weighs 0.492 kg. Genuine OEM reinforcements are manufactured to precise tolerances to maintain structural integrity and safety.
Catalogue entry: REINFORCE. right.
Technical details
- Category
- Body Exterior
- Customs (HS) code
- 87082990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 35 × 20 × 12 cm
- Shipping weight
- 0.49 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- 3RF
- 3RG
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
9 vehiclesReinforcement — locate 7H3817486A Volkswagen Reinforcement | Position 51 in the official exploded view and explore the surrounding assembly.
RThis part is the Right side
Parts in this assembly43
- 1Part 7H3817021CK
- 1Part 7H3817021CM
- 1Roof 7LA817021
- 1Roof 7LA817021A
- 2Dummy 1K0035507L
- 3Part WHT007459
- 4Roof FrameRight7H0817316B
- 4Roof FrameLeft7H0817315B
- 6PartLeft7H3817343D
- 6PartRight7H3817344D
- 6PartRight7H3817344K
- 6PartLeft7H3817343K
- 7Roof FrameRight7H3817586C
- 7Roof FrameLeft7H3817585C
- 8PlateRight7H3817624D
- 8PlateLeft7H3817623D
- 9Roof Frame 7E0817123B
- 10Sealant AKD476KD505
- 10Cleaner D00940104
- 101k Adhes D169300M2
- 16Roof Bow 7E0817303
- 23Beading 7H0829397C
- 26Bolt N90897401
- 28Collar Nut N01508315
- 29Part 6L0809864
- 30Bolt N10451409
- 35Part 7H3817331A
- 36Part 7H3817319D
- 37Reinforce 7H3817808C
- 38Plate 7H3817238B
- 42Frame 7H3817402D
- 43Reinforce 7H3817824A
- 45Roof Frame 7H3817580B
- 46Plate 7H3817736
- 48Part 7H3817116A
- 50Roof Rack 7H3817149D
- 51ReinforceLeft7H3817485A
- 52Roof Rack 7H3817163A
- 53Support ElementRight7H3817412A
- 53Support ElementLeft7H3817411A
- 54Mount BlockRight7H3817188B
- 54Mount BlockLeft7H3817187B
- 55Beading 7H3817601
Vehicle fitment table9
Europe (9)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| caravelle | 2019-2024 | 51 | 1 | PR:3RF,3RG | 3RF |
| caravelle | 2015-2019 | 51 | 1 | PR:3RF,3RG | 3RF |
| transp. caravelle | 2011-2015 | 51 | 1 | ||
| transp. caravelle | 2009-2011 | 51 | 1 | ||
| transp. caravelle | 2008-2009 | 51 | 1 | ||
| TRANSPORTER GESCHL. 08 | 2007- | 51 | 1 | ||
| TRANSPORTER/4MOTION 07 | 2006-2007 | 51 | 1 | ||
| TRANSPORTER/4MOTION 06 | 2005-2006 | 51 | 1 | ||
| TRANSPORTER | 2003-2005 | 51 | 1 |
