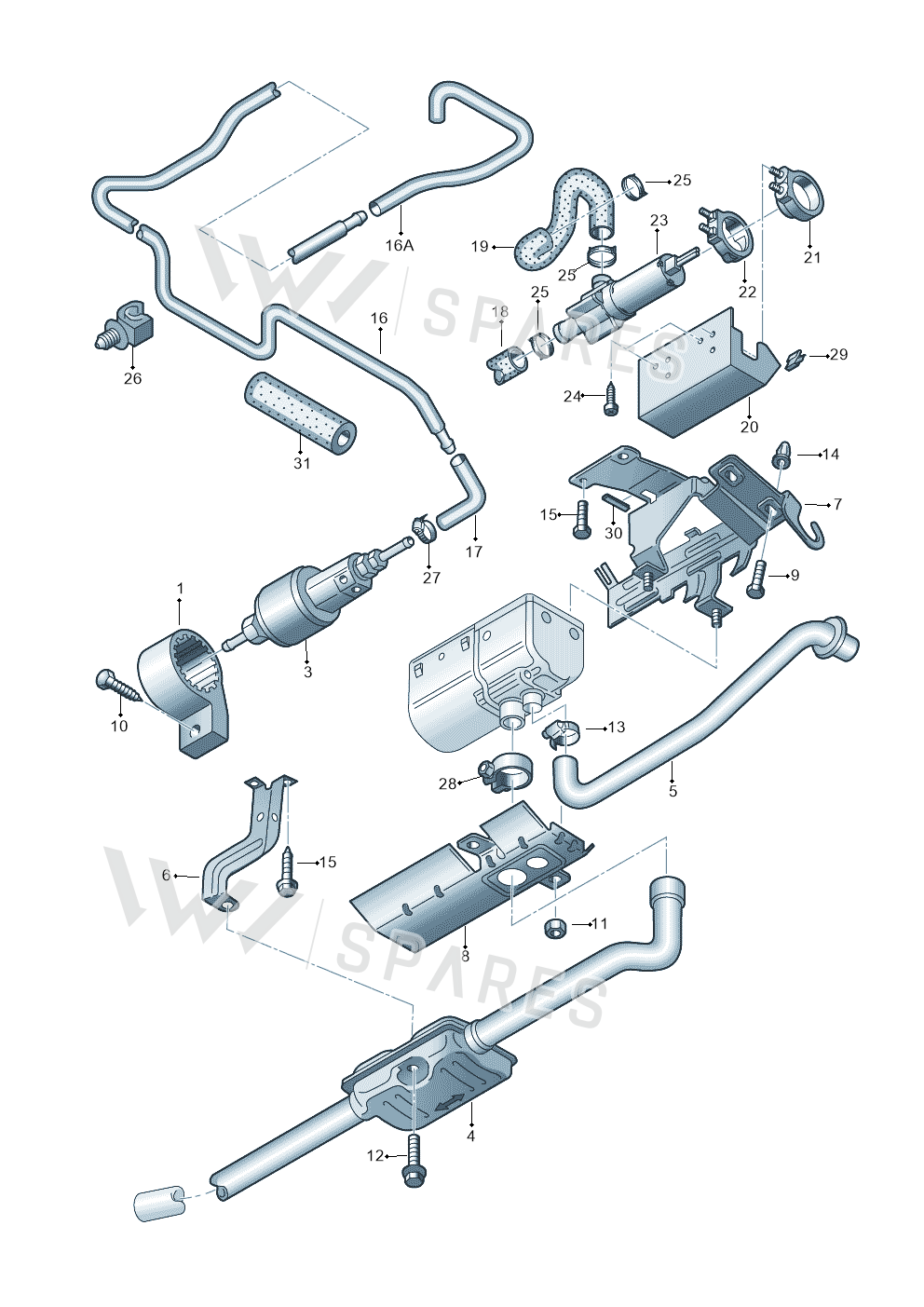

Fuel Pump exploded parts diagram — ALHAMBRA/4MOTION · 2002-2005, position 3 — ALHAMBRA/4MOTION · 2002-2005 · position 3Full diagram ↓

7M0819100A

7M0819100A Fuel Pump

Name: 7M0819100A Fuel Pump
Brand: SEAT
SKU: 7M0819100A
Price: 162.9 GBP
Availability: Discontinued

£162.90

£134.63 excl. VAT

Supersession road4 numbers since 2000

7M3819100
Not stocked Aug 2000
7M0819100A
Not stocked Jun 2005
You are here
7M3819100A
Not stocked May 2006
7M3819100B
Discontinued Feb 2026

7M3819100Not stocked
Aug 2000
7M0819100AThis pageNot stocked
Jun 2005
7M3819100ANot stocked
May 2006
7M3819100BDiscontinued
Feb 2026

Availability: No longer supplied under this number

Quantity:

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Genuine OEM Parts

Direct from manufacturer

Secure Ordering

Safe and protected checkout

Parts diagram & fitment

3 vehicles

Fuel Pump — locate Fuel Pump in the official exploded view and explore the surrounding assembly.

Parts in this assembly32

Vehicle fitment table3

Europe (3)

Vehicle	Years	Pos.	Qty
ALHAMBRA/4MOTION	2002-2005	3, 2	1
TRANSPORTER SYNCRO	1996-2003	8
ALHAMBRA	1996-2000	3	1
